Seat Backrest - Rear: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

40 Percent Backrest

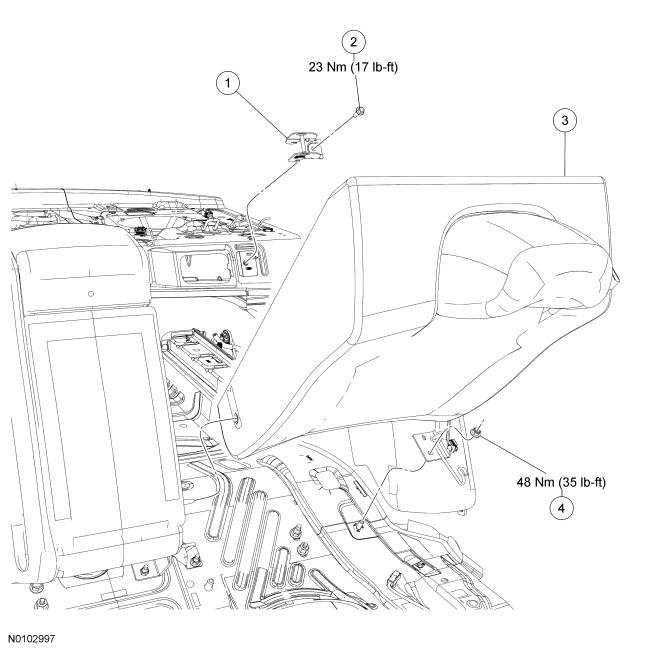

Fig 1: Rear Seat Backrest (40 Percent Backrest) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	62452	Backrest striker
2	W505264	Backrest striker-to-package tray bolt
3	-	40 percent backrest assembly
4	W520113	Backrest-to-floor nut

60 Percent Backrest

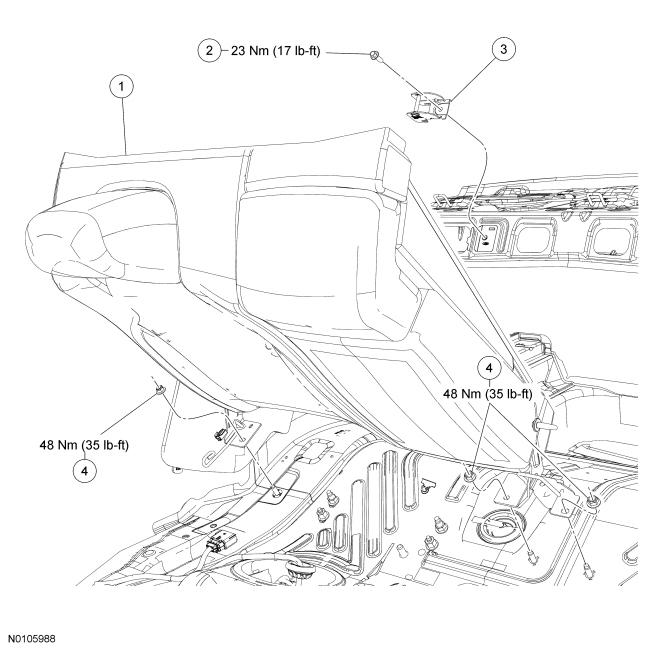

Fig 2: Rear Seat Backrest (60 Percent Backrest) With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	60 percent backrest assembly
2	W505264	Backrest striker-to-package tray bolt
3	62452	Backrest striker
4	W520113	Backrest-to-floor nuts (3 required)
