Rear Engine Sensor Locations - 2.0L GTDI

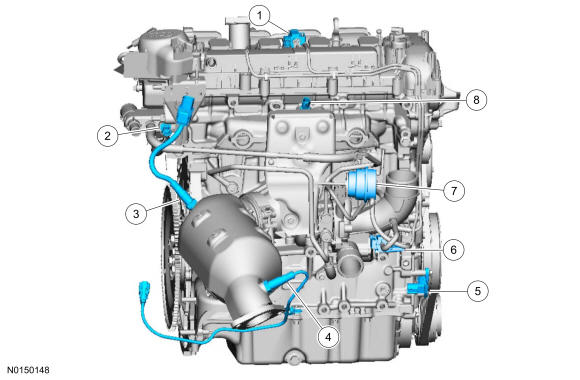

GFD83400Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 Turbocharger bypass valve solenoid -
2 ECT sensor -
3 HO2S -
4 CMS -
5 CKP sensor -
6 Turbocharger wastegate regulating valve solenoid -
7 Wastegate actuator -
8 CHT sensor -
