Steering Column Shaft - Intermediate: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

NOTE: Hydraulic Power Assist Steering(HPAS) steering column shown, Electronic Power Assist Steering(EPAS) steering column similar.

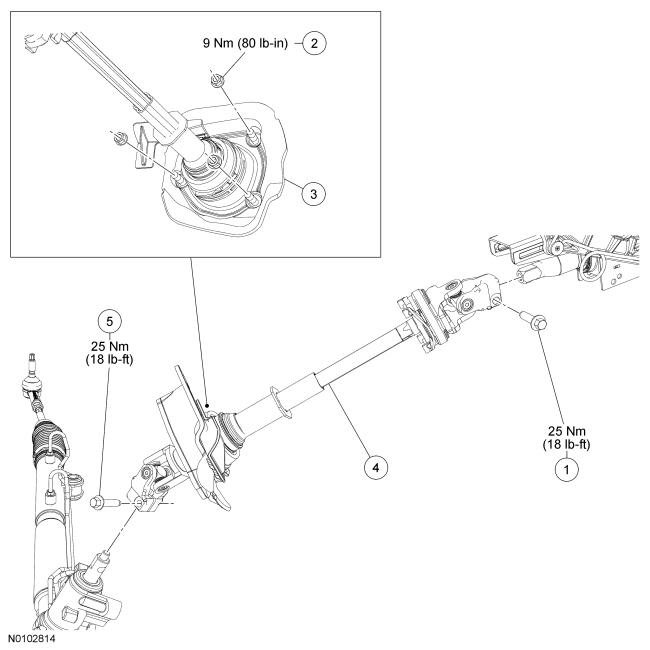

Fig 1: Intermediate Steering Column Shaft With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W714878	Steering column shaft-to-steering column bolt
2	W705460	Steering column shaft boot nut
3	3C611	Steering column shaft boot
4	3B676	Steering column shaft
5	W712961	Steering column shaft-to-steering gear bolt
