Blower Motor Control Module

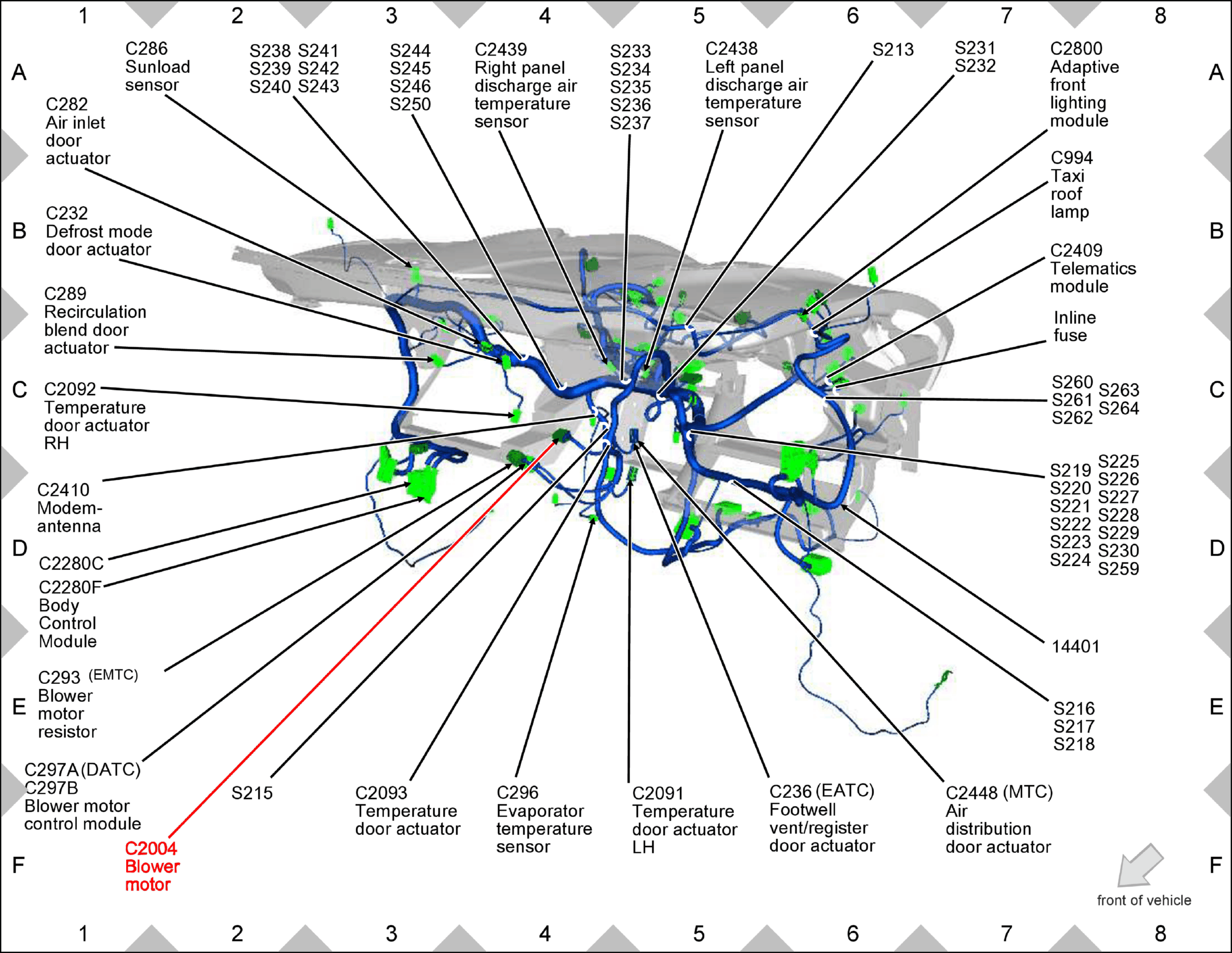

Fig 1: Blower Motor Control Module Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
