Front Controls Interface Module (FCIM)

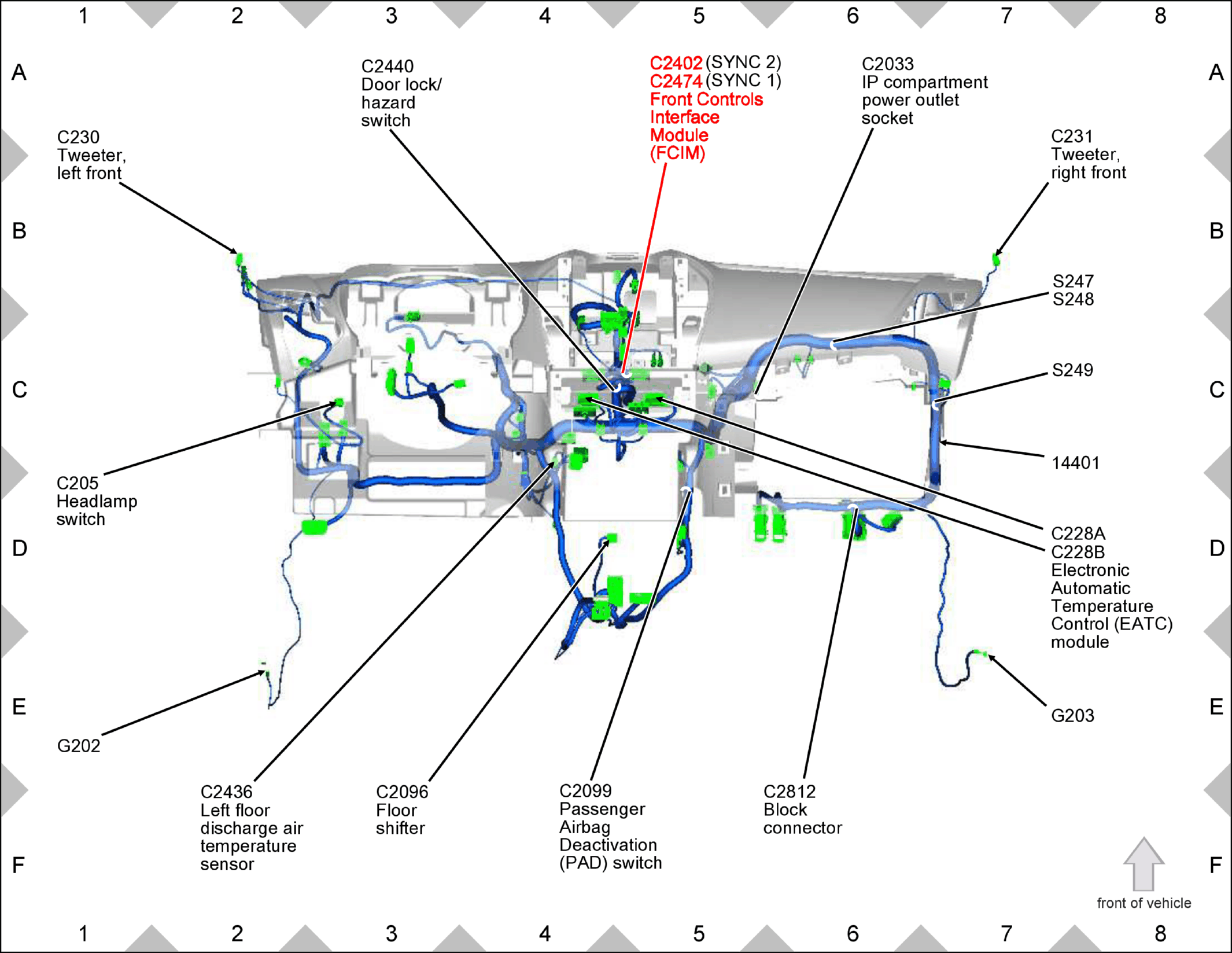

Fig 1: Front Controls Interface Module (FCIM) Component Location
GFDW64190Courtesy of FORD MOTOR COMPANY
