Fuel Pump Control Module

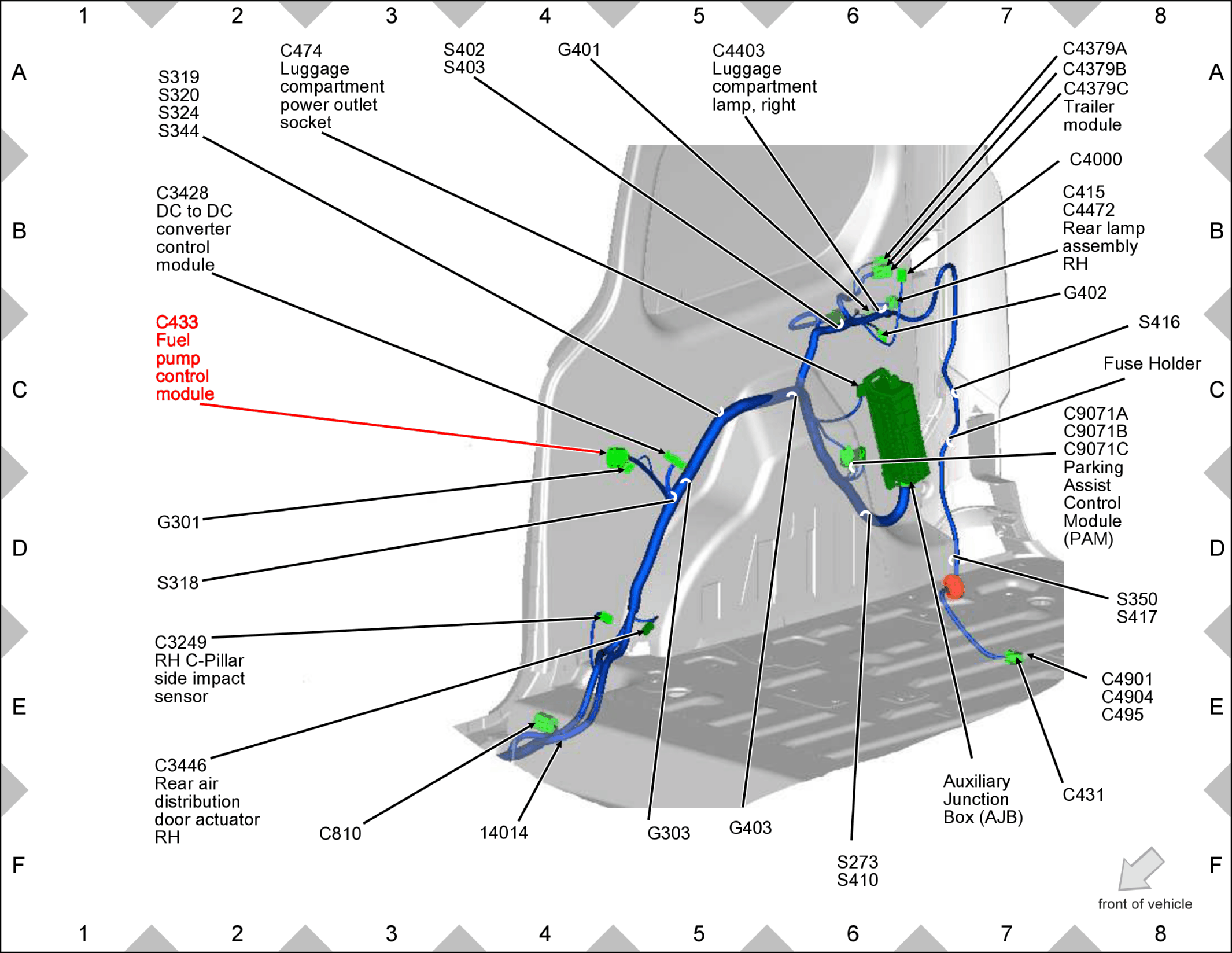

Fig 1: Fuel Pump Control Module Component Location
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
