Front Head Restraint Guide Sleeve: Removal

  1. 1.

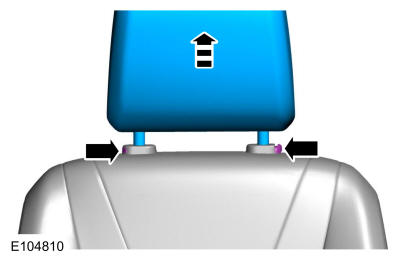

    Release the locking tabs and remove the head restraint.
GFD151310Courtesy of FORD MOTOR COMPANY

  1. 2.

    Using flat headed screw driver, release the locking tabs and remove the headrest restraint guide sleeves.
GFD151311Courtesy of FORD MOTOR COMPANY
