Front Seat Backrest Cover: Installation

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

    Use the General Equipment: Hog Ring Plier
GFD151328Courtesy of FORD MOTOR COMPANY

  1. 3.

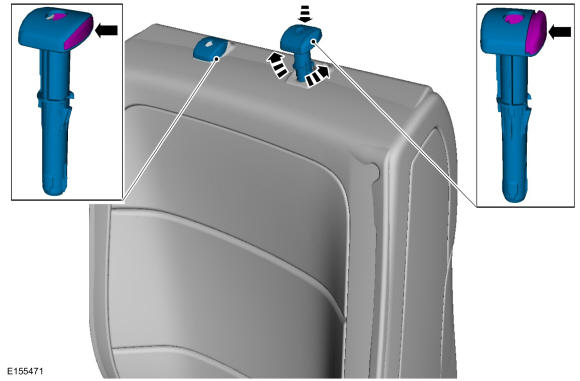

    NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.
    NOTE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeves at the correct position may result in component failure.

    Allow the head restraint guide sleeve to slide freely through the backrest foam and backrest trim cover. Twist the head restraint guide sleeve while pushing it into the backrest frame hole as far as it will go, using hand pressure.

GFD151329Courtesy of FORD MOTOR COMPANY

  1. 4.

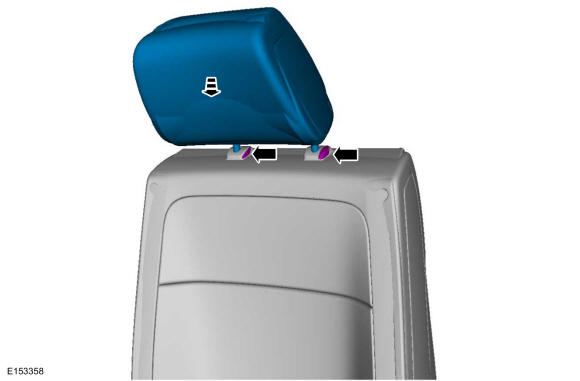

    Depress the locking tabs and install the head restraint.
GFD151330Courtesy of FORD MOTOR COMPANY
