Hydraulic Control Unit (HCU): Installation
1.

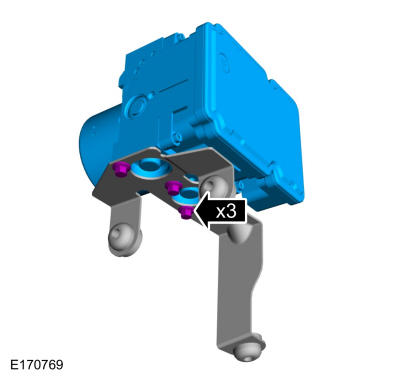

Install the HCU and the 3 HCU bracket bolts.
Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
2.
Bleed the brake system. Refer to:
Brake System Pressure Bleeding
.
3.
If a new HCU/ ABS module was installed, using a diagnostic scan tool, complete the PMI process for the ABS module following the on-screen instructions.
