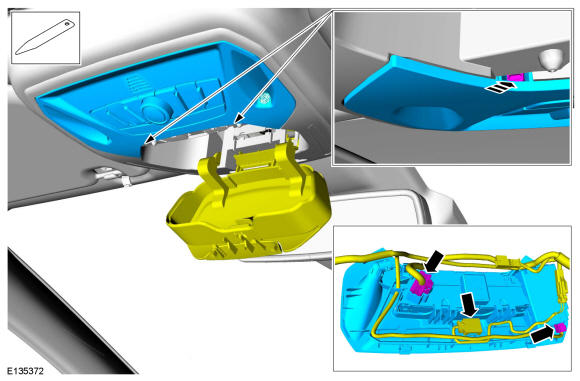

Front Overhead Console: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the dome lamp and disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
- 3.

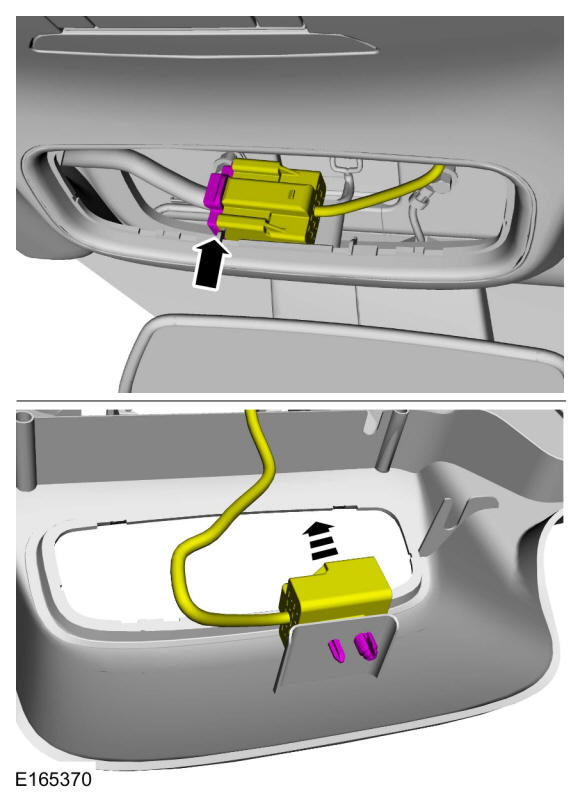

- Disengage the retaining tabs and remove the roof bezel cover.
- Disconnect the roof bezel cover electrical connectors.
- 4.
- 1.NOTE: Note the position of the component before removal.

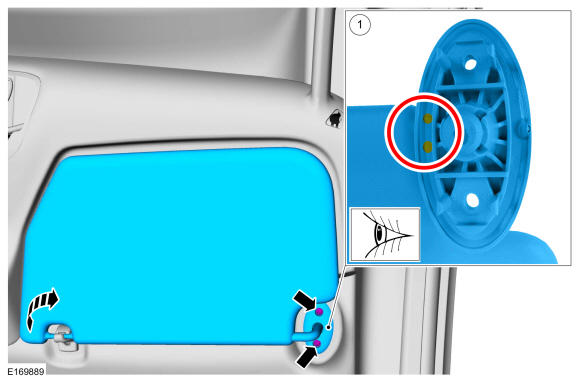

Remove the retainers and the LH side sun visor.
- 1.
- 5.
- 1.NOTE: Note the position of the component before removal.
Remove the retainers and the RH side sun visor.
- 1.
- 6.

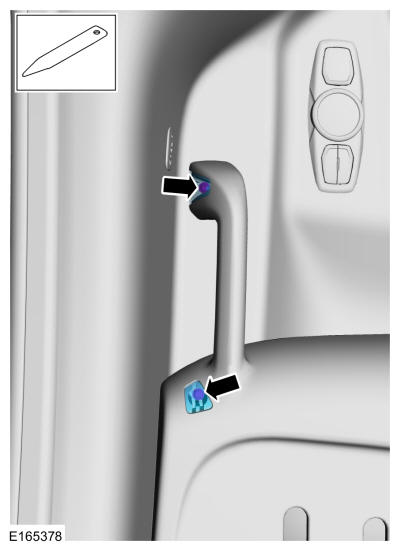

On both sides, remove the grab handle covers and retainers. Use the General Equipment: Interior Trim Remover
