Bearing Inspection

Inspection

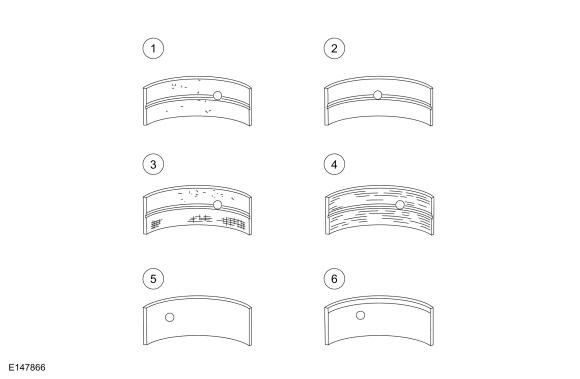

• 1.



  • 1.

    Cratering - fatigue failure

  • 2.

    Spot glazing - incorrect seating

  • 3.

    Scratching - dirty engine oil

  • 4.

    Base exposed - poor lubrication

  • 5.

    Both edges worn - journal damaged

  • 6.

    One edge worn - journal tapered or bearing not seated

Courtesy of FORD MOTOR COMPANY
