Fuel Pump Driver Module (FPDM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

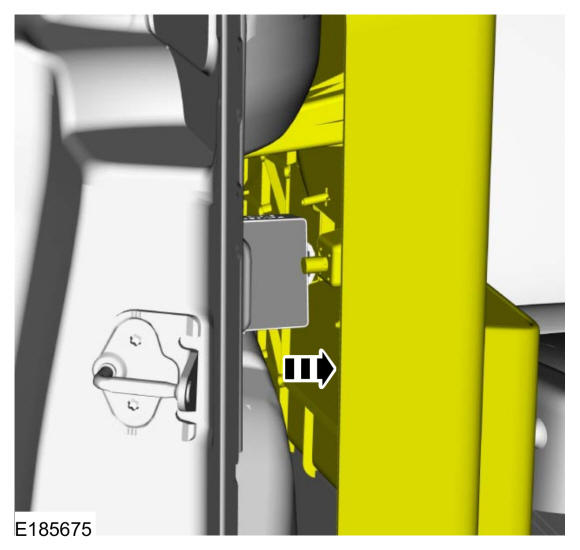

- 1.
Position aside the RH load space trim panel.
 Courtesy of FORD MOTOR COMPANY
|

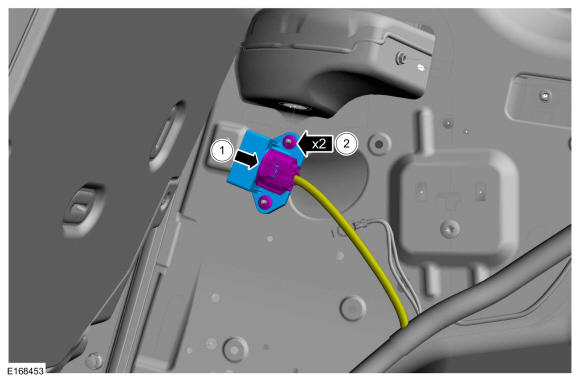

- 2.
- 1.
Disconnect the FPDM electrical connector.
- 2.
Remove the FPDM retaining nuts and the FPDM.Torque: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
