OEM Ground Distribution: Grounds

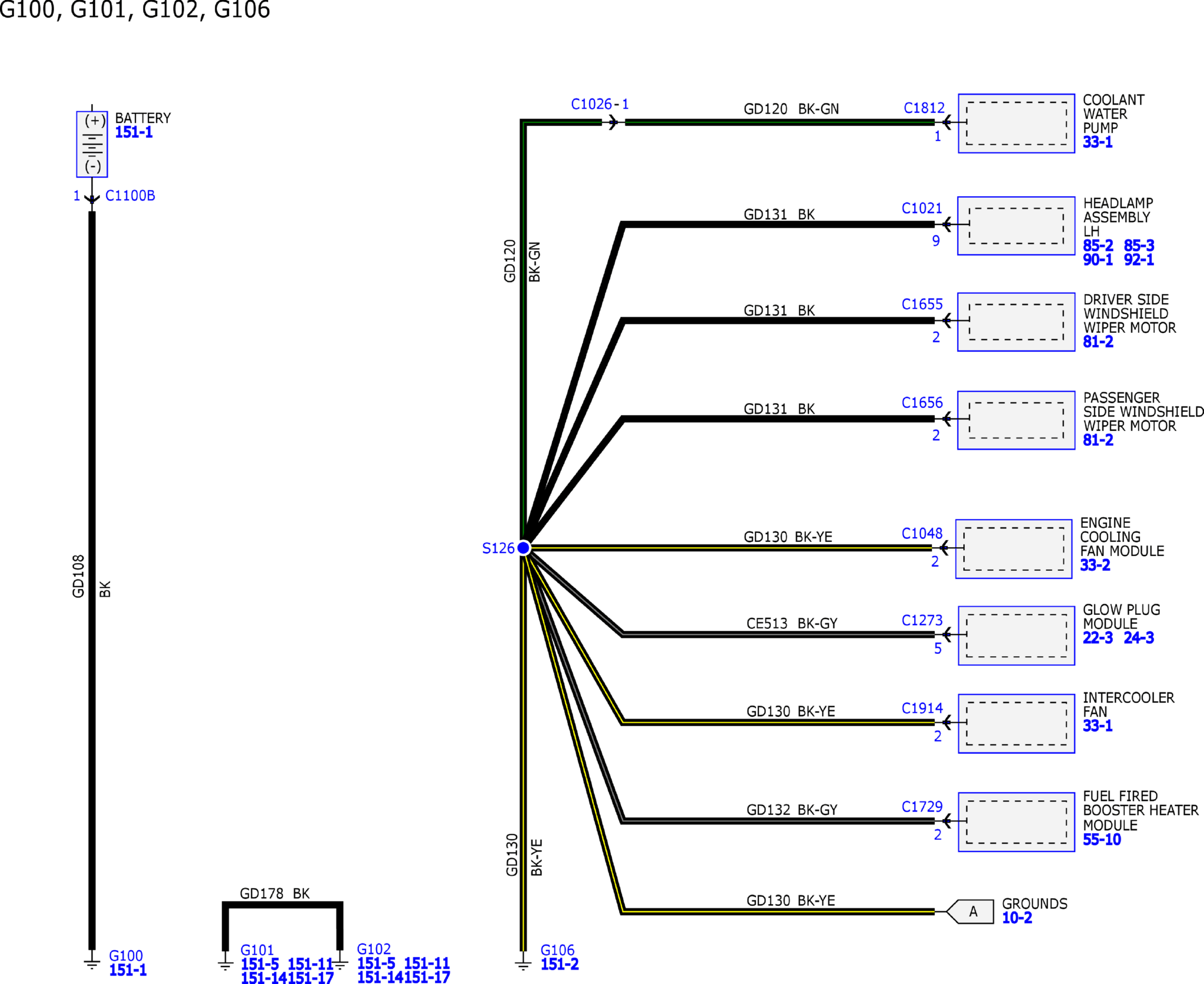

GFDW63440Courtesy of FORD MOTOR COMPANY

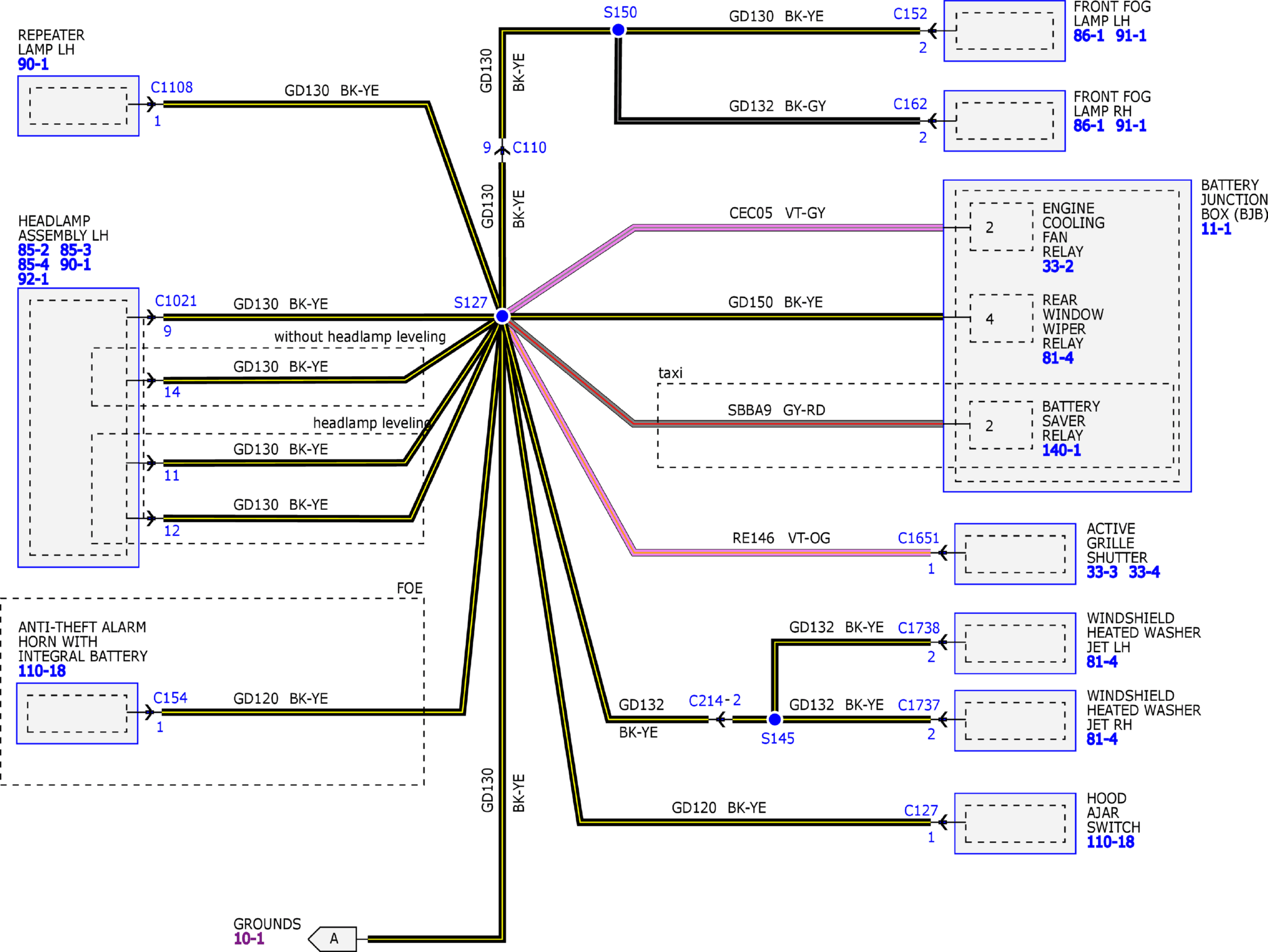

GFDW63441Courtesy of FORD MOTOR COMPANY

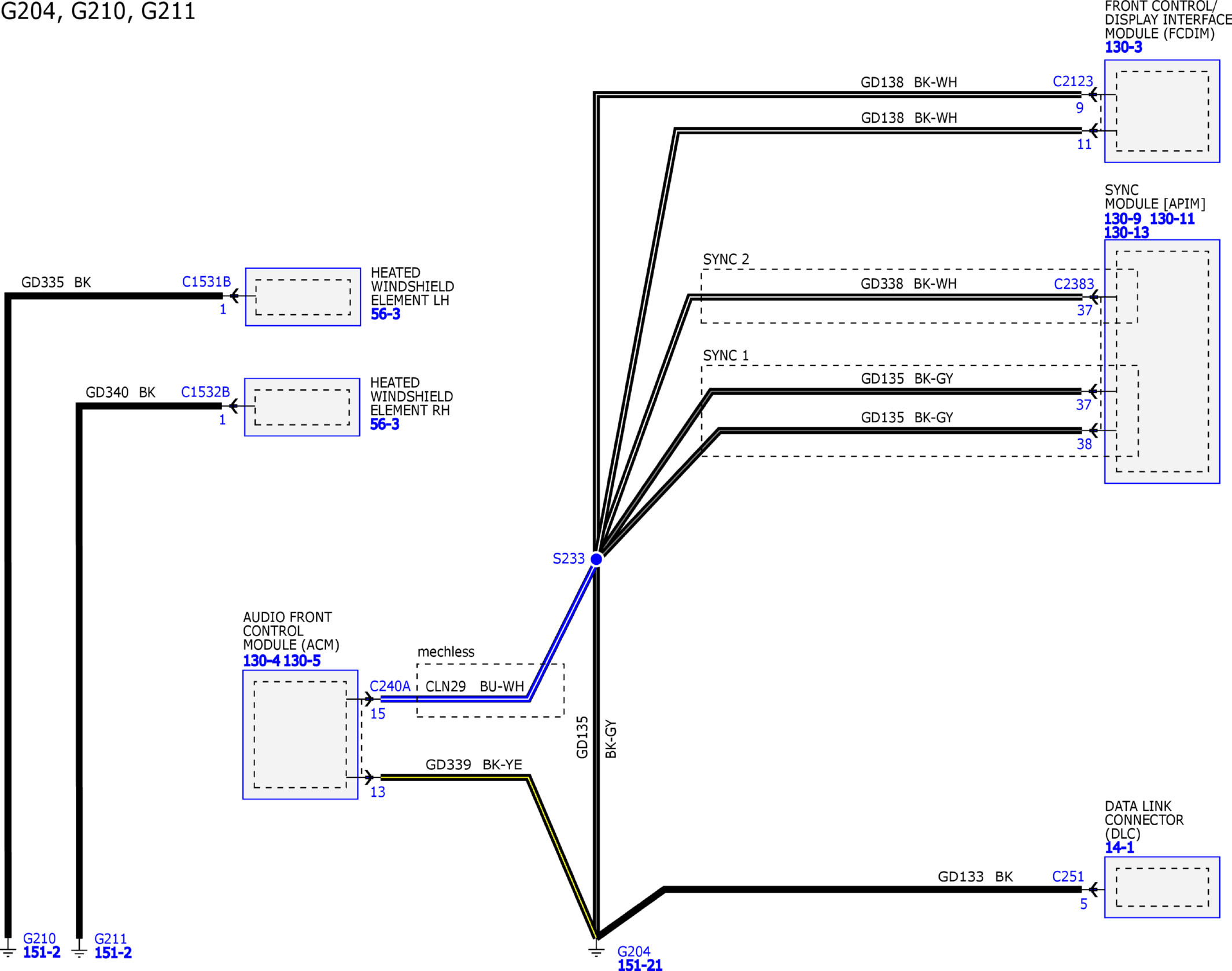

GFDW63442Courtesy of FORD MOTOR COMPANY

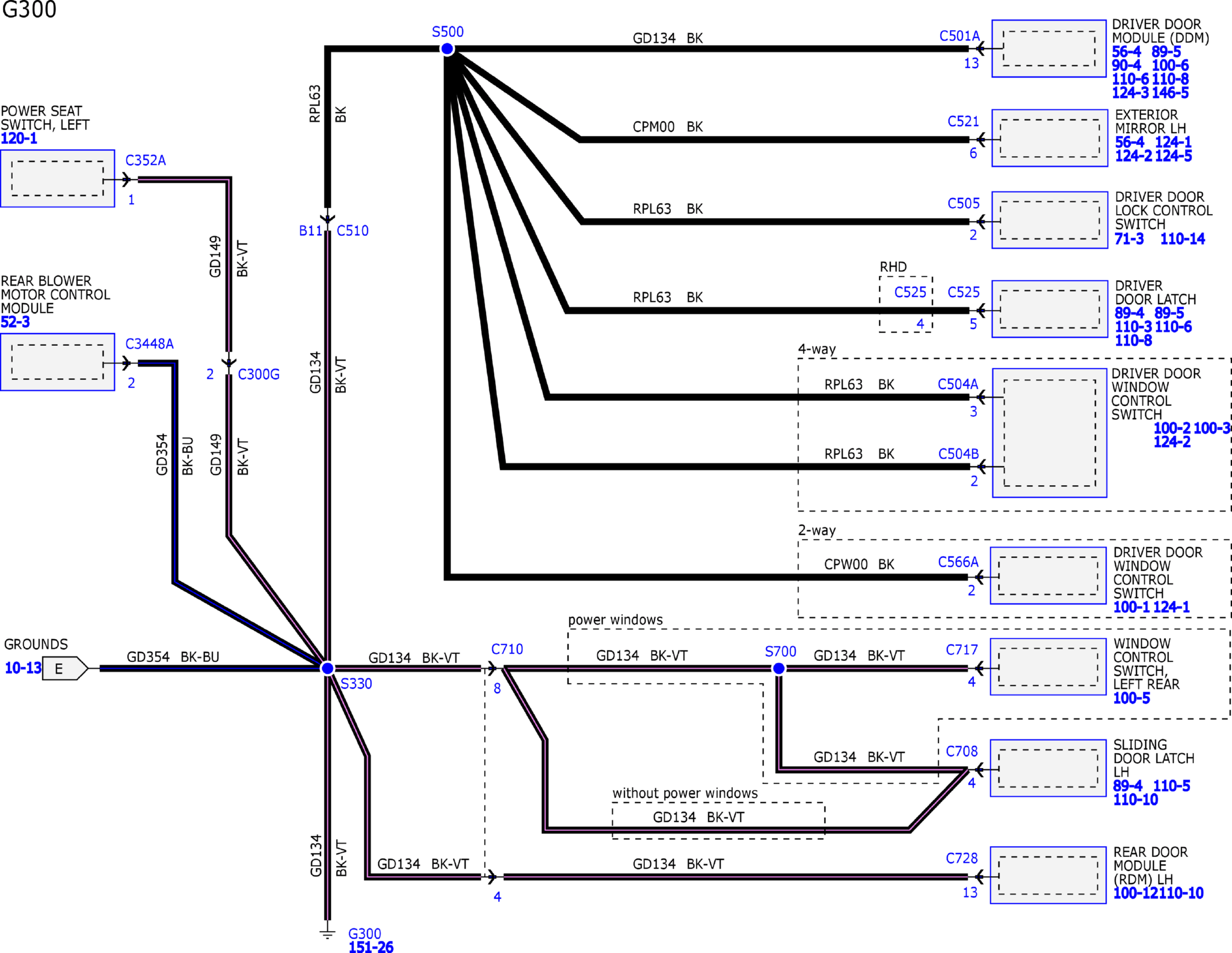

GFDW63443Courtesy of FORD MOTOR COMPANY

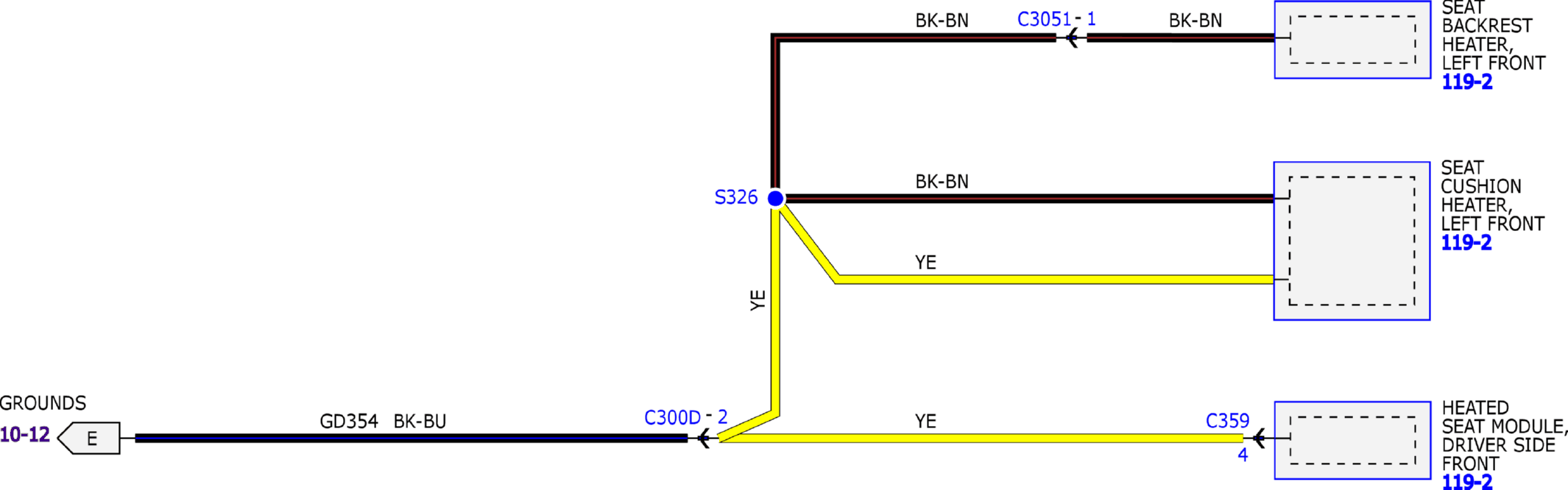

GFDW63444Courtesy of FORD MOTOR COMPANY

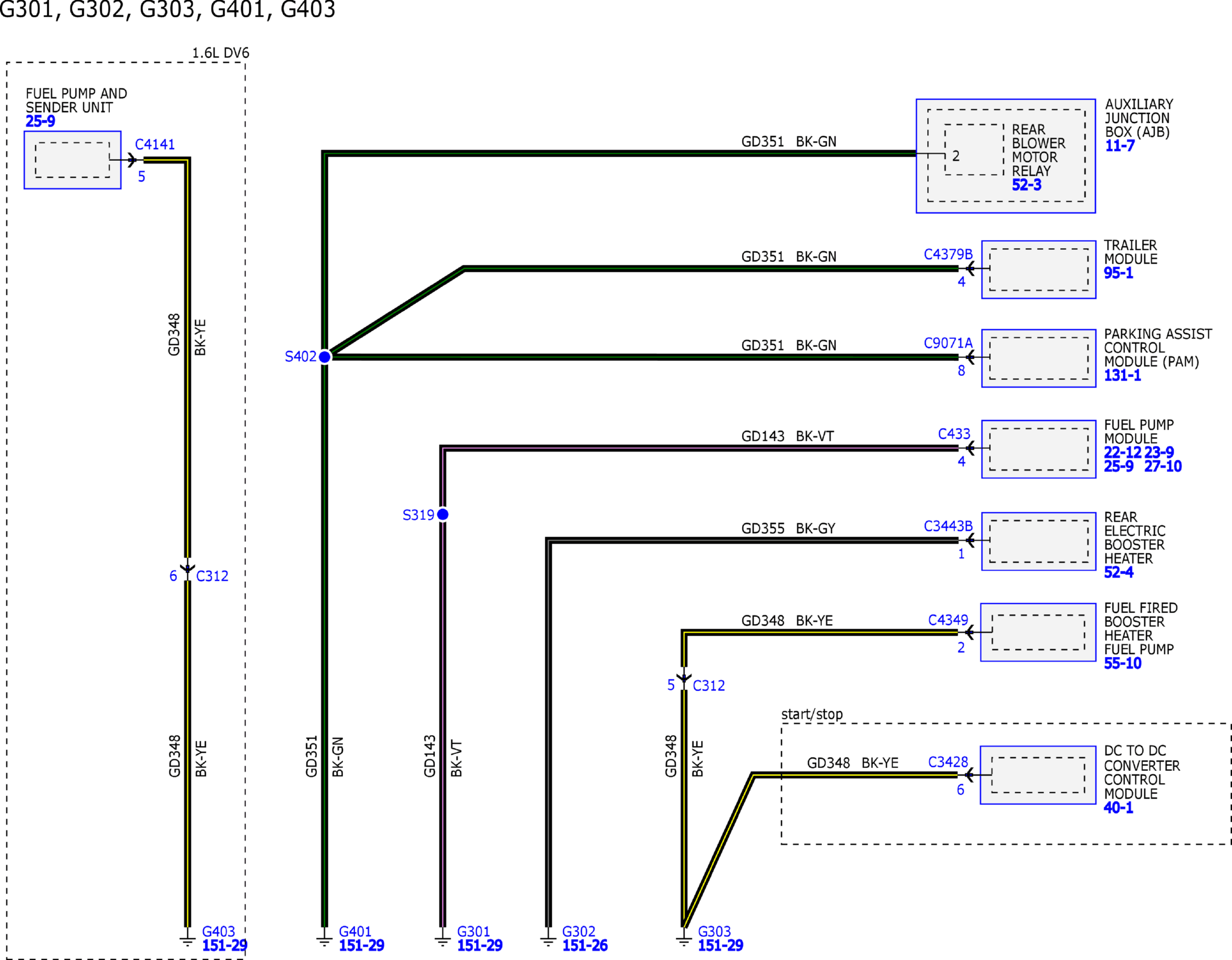

GFDW63445Courtesy of FORD MOTOR COMPANY

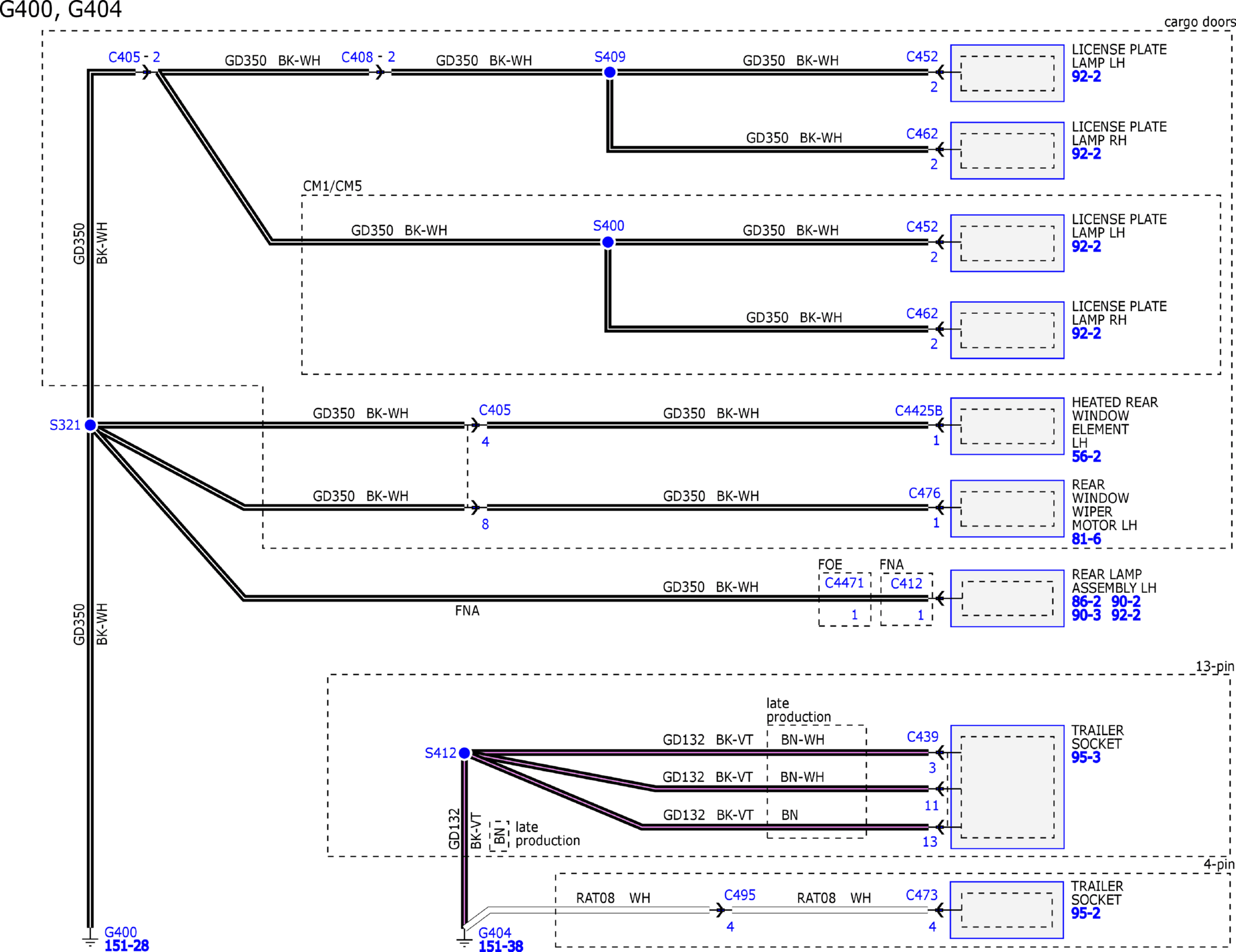

GFDW63446Courtesy of FORD MOTOR COMPANY

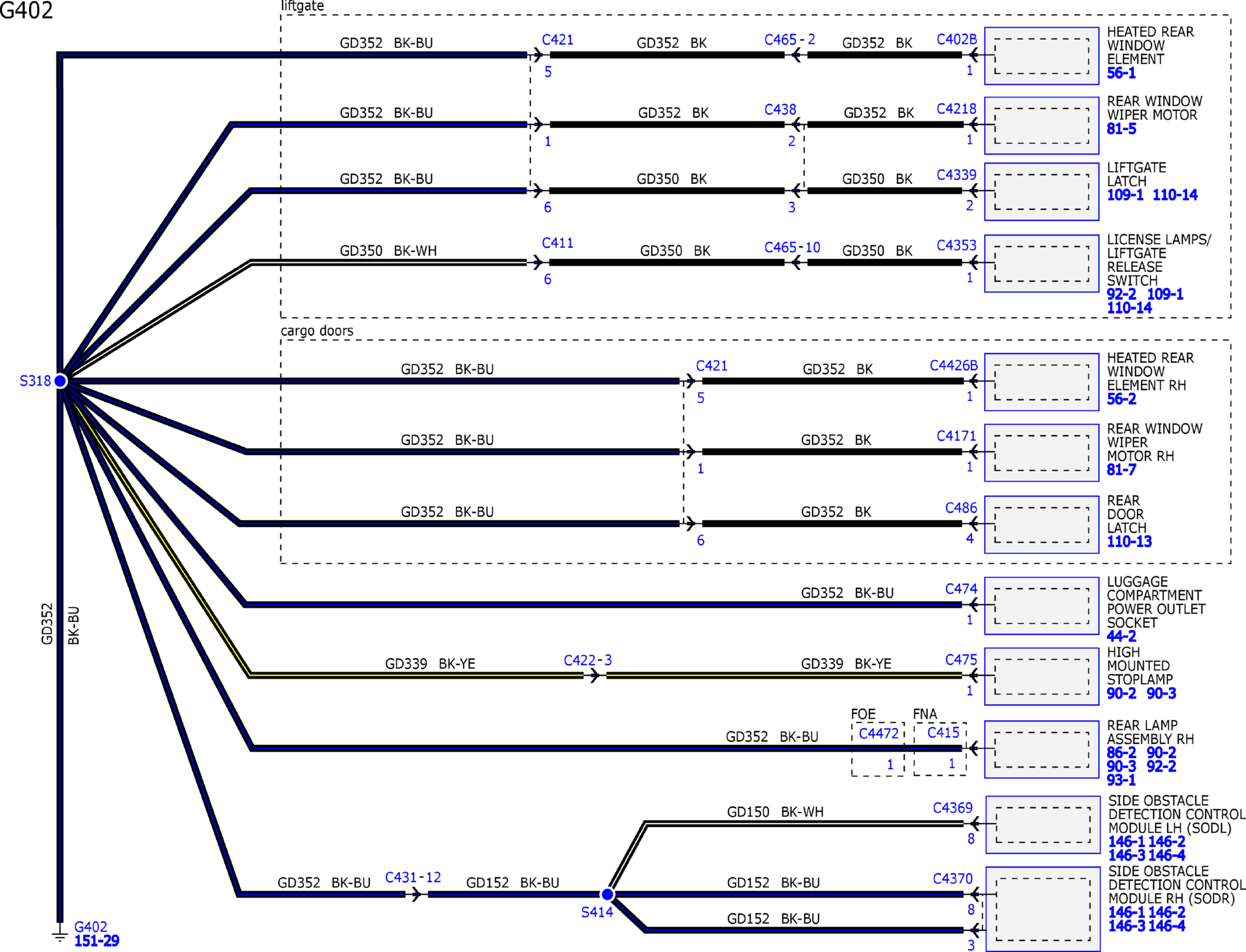

GFDW63447Courtesy of FORD MOTOR COMPANY

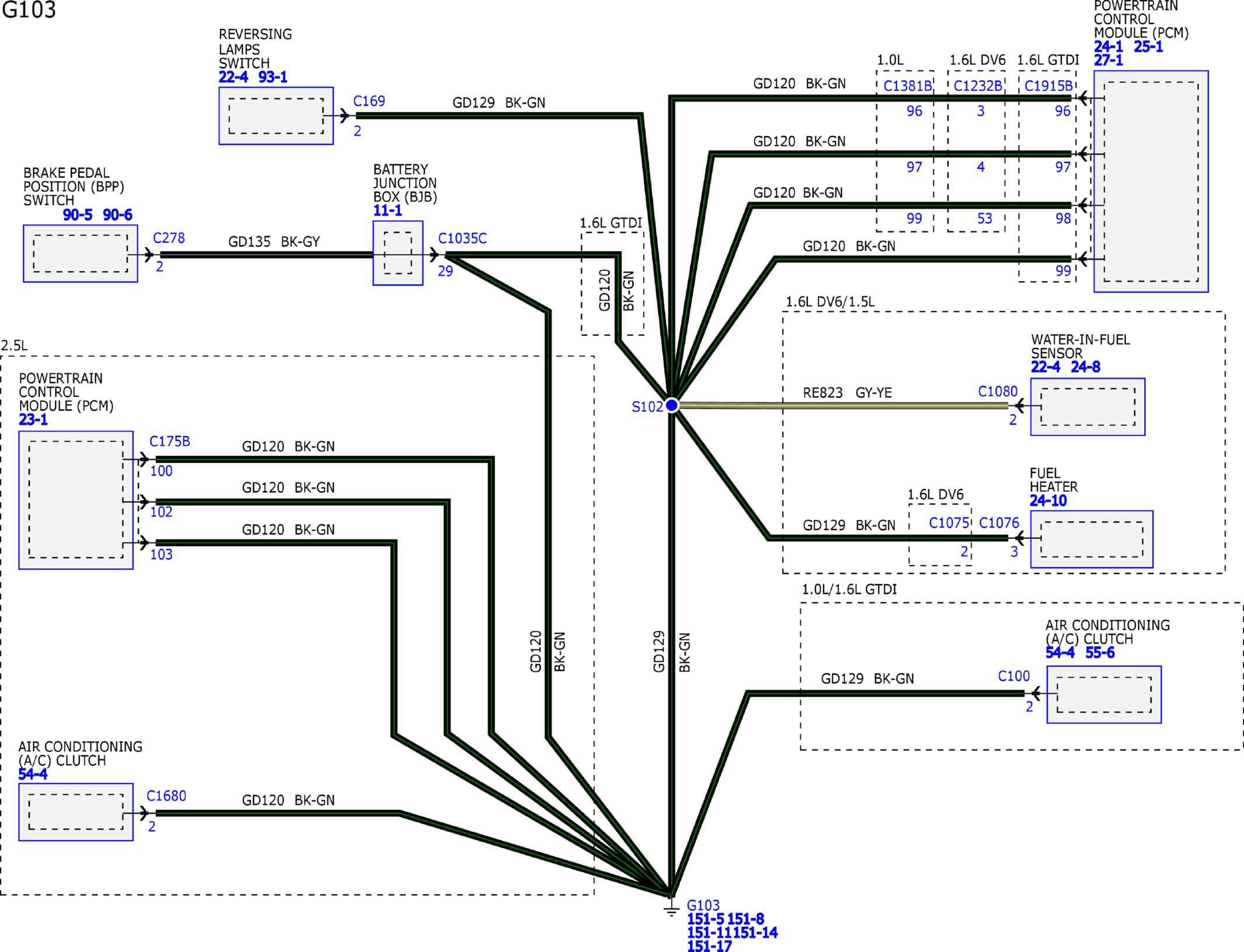

GFDW63448Courtesy of FORD MOTOR COMPANY

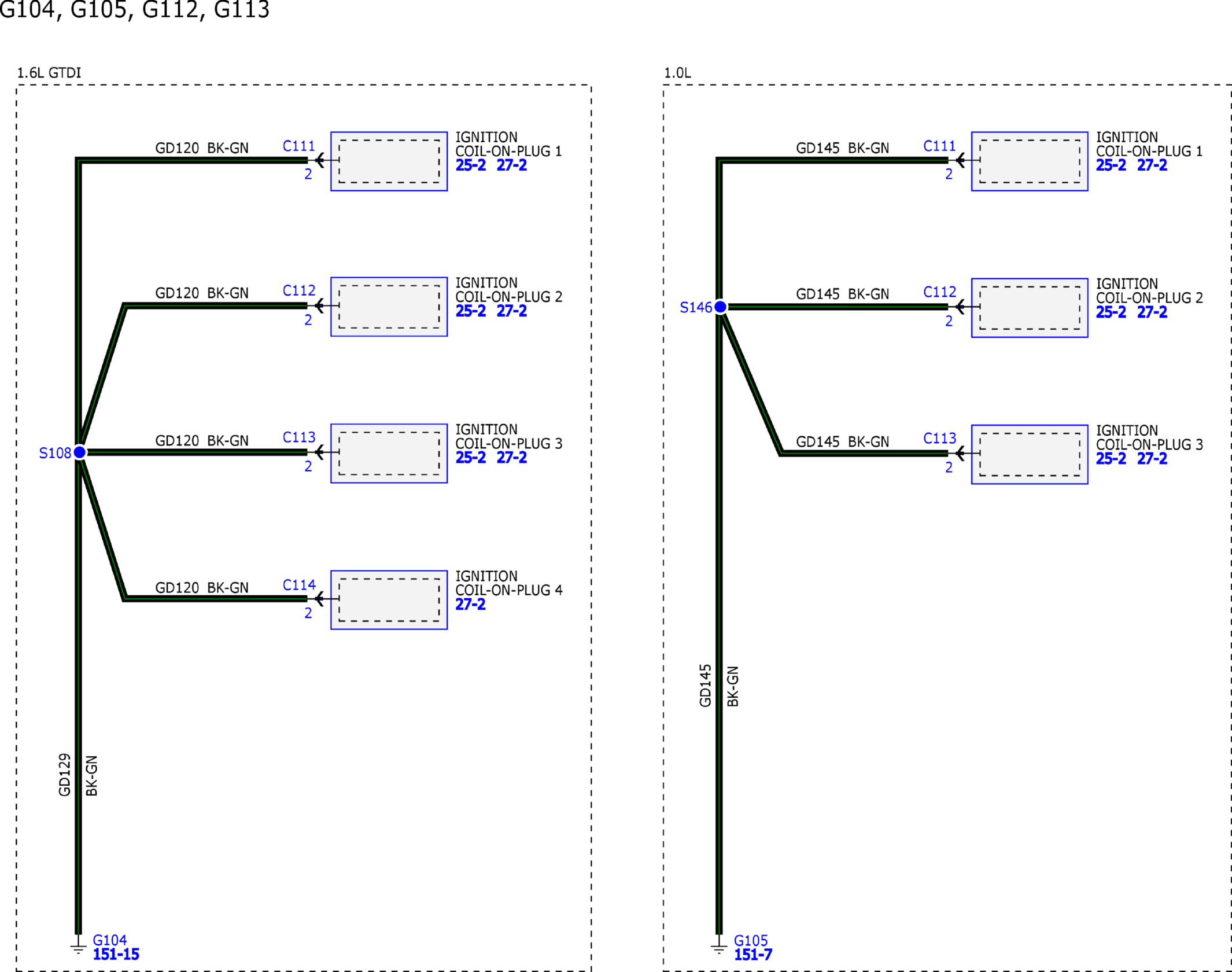

GFDW63449Courtesy of FORD MOTOR COMPANY

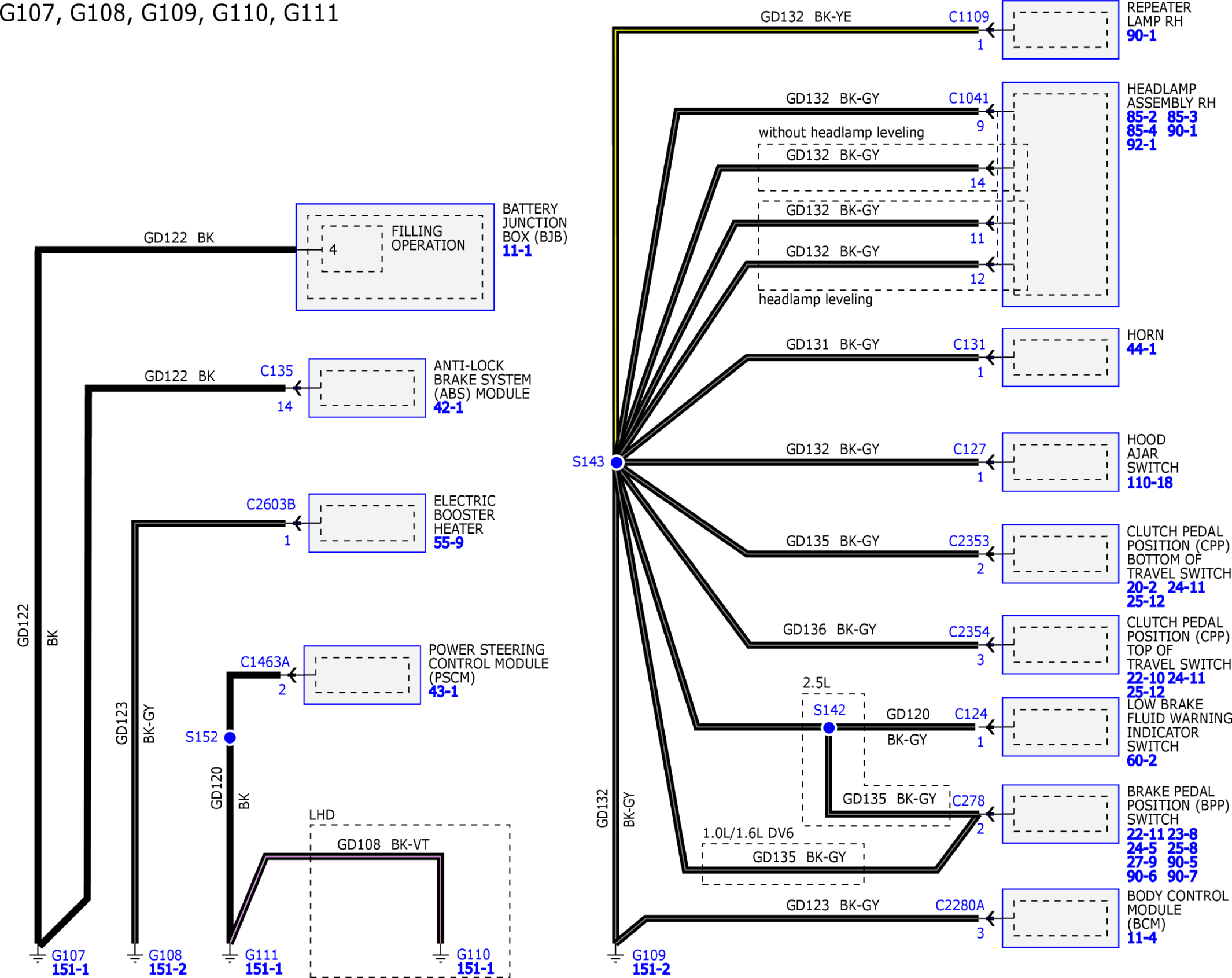

GFDW63450Courtesy of FORD MOTOR COMPANY

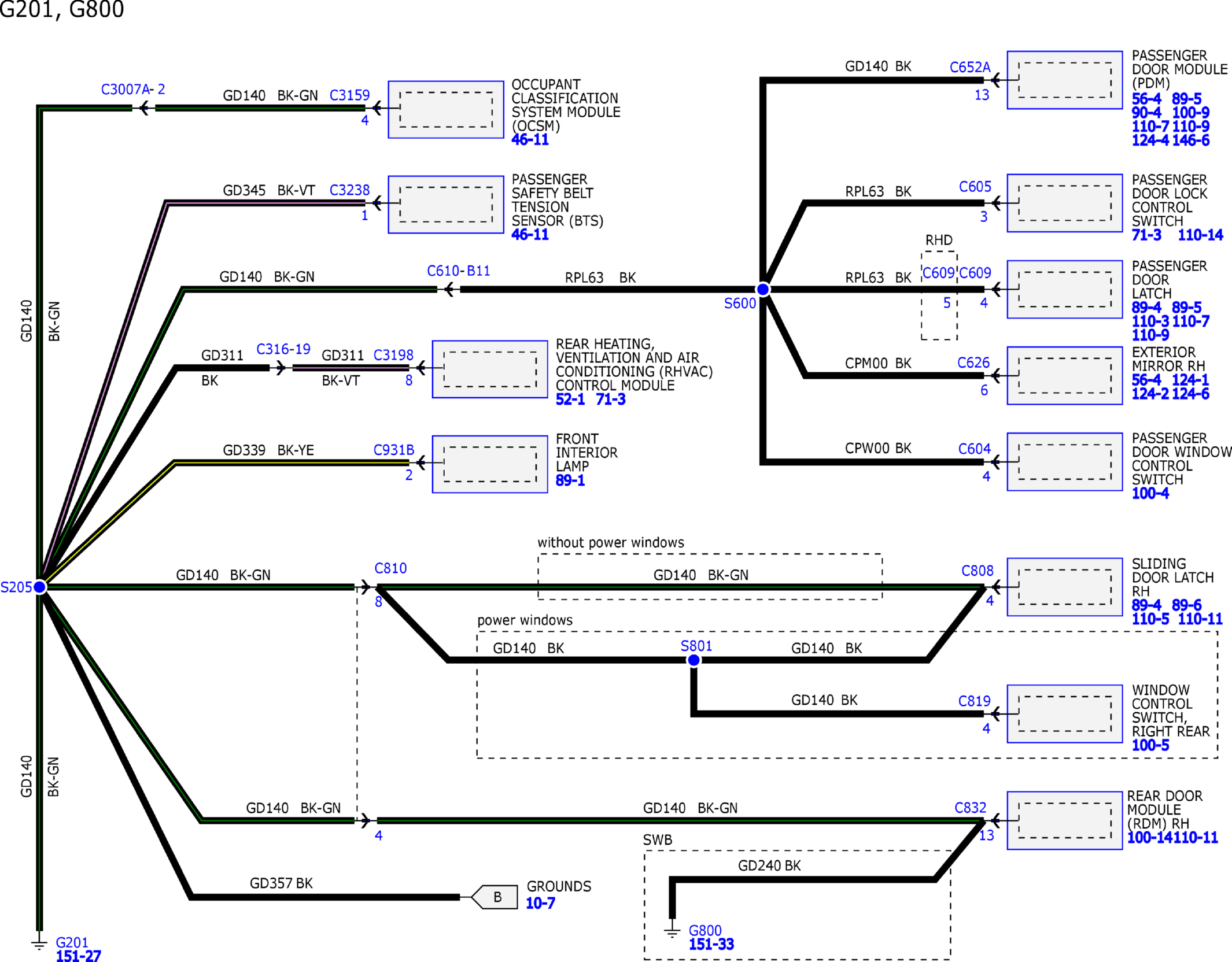

GFDW63451Courtesy of FORD MOTOR COMPANY

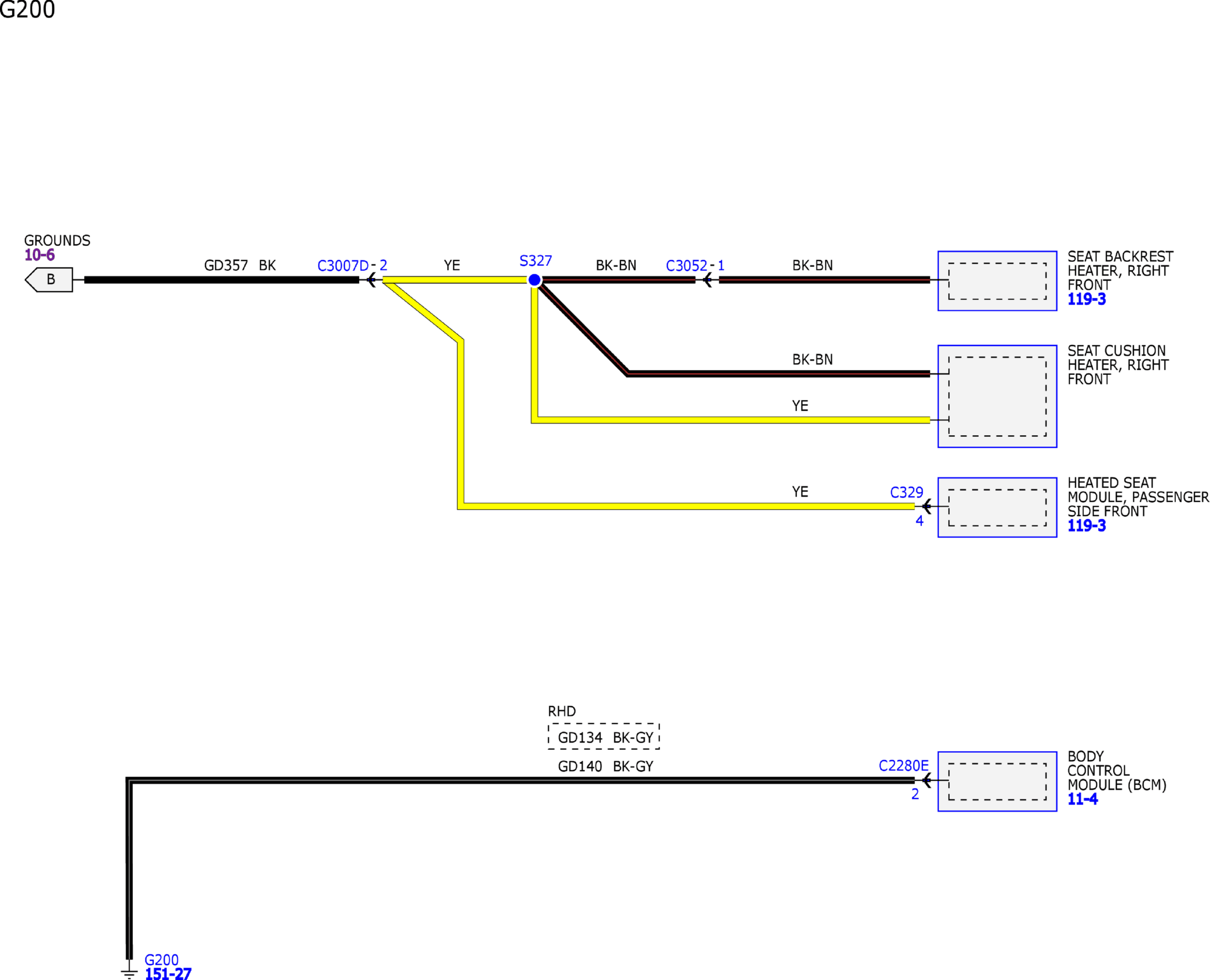

GFDW63452Courtesy of FORD MOTOR COMPANY

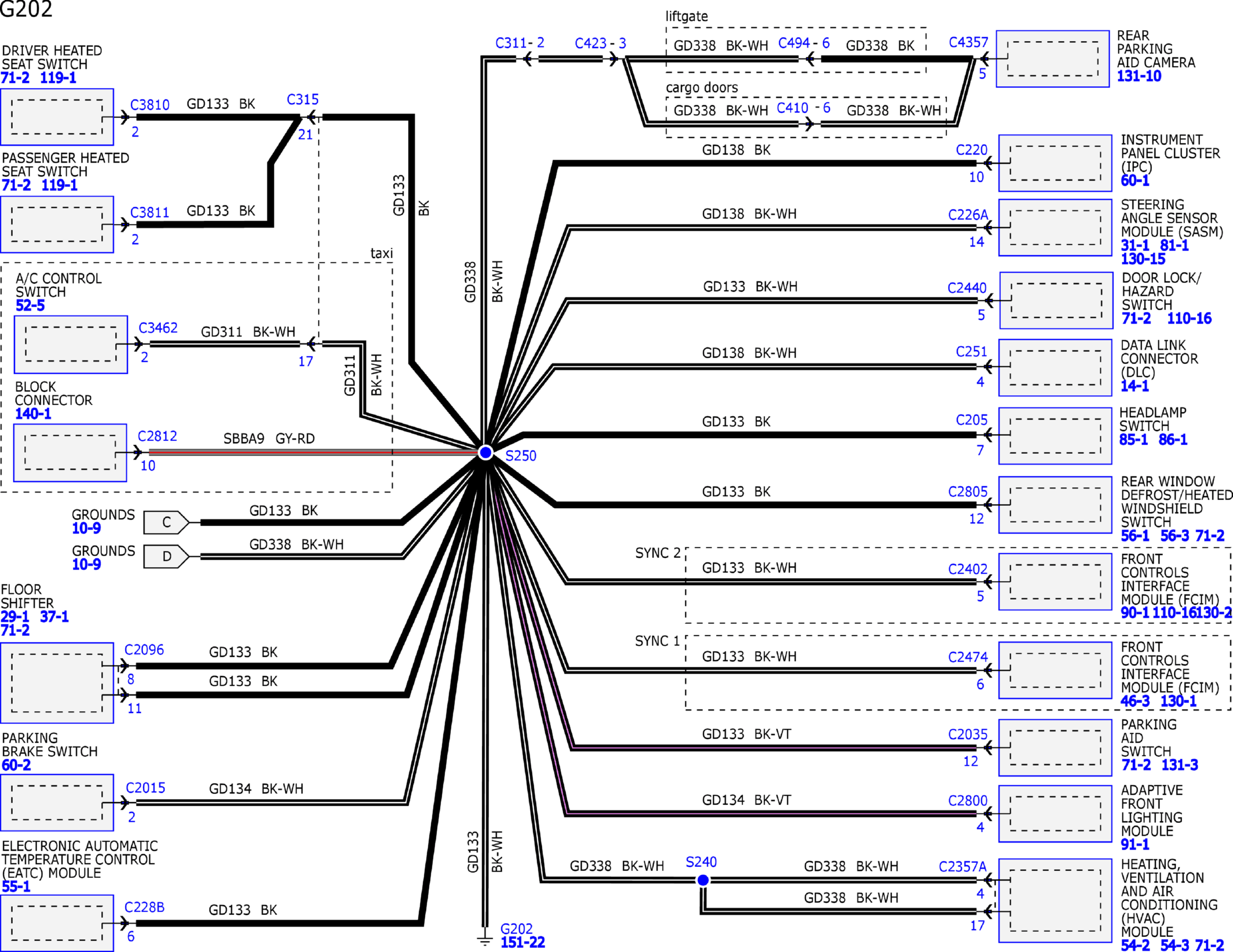

GFDW63453Courtesy of FORD MOTOR COMPANY

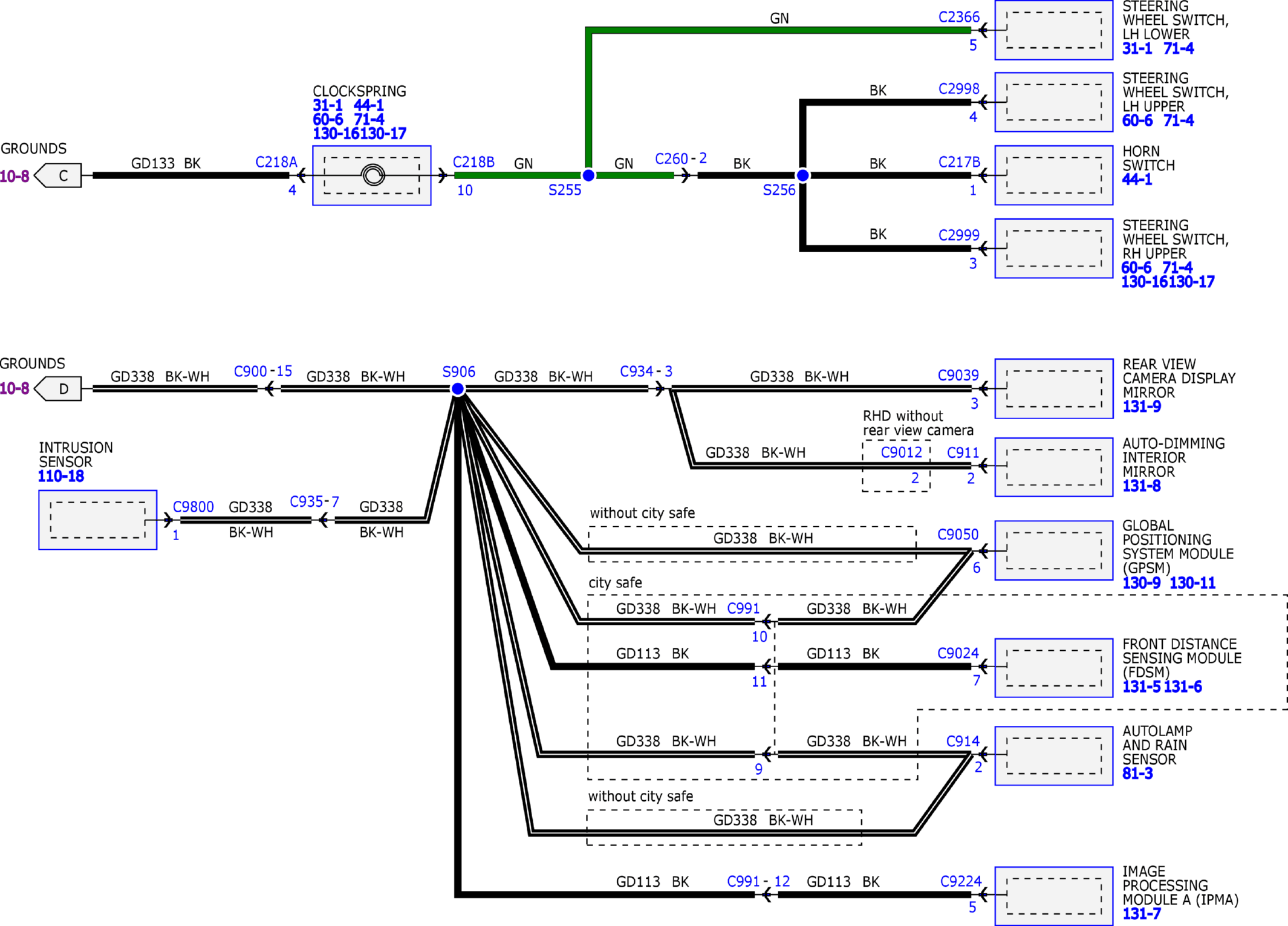

GFDW63454Courtesy of FORD MOTOR COMPANY

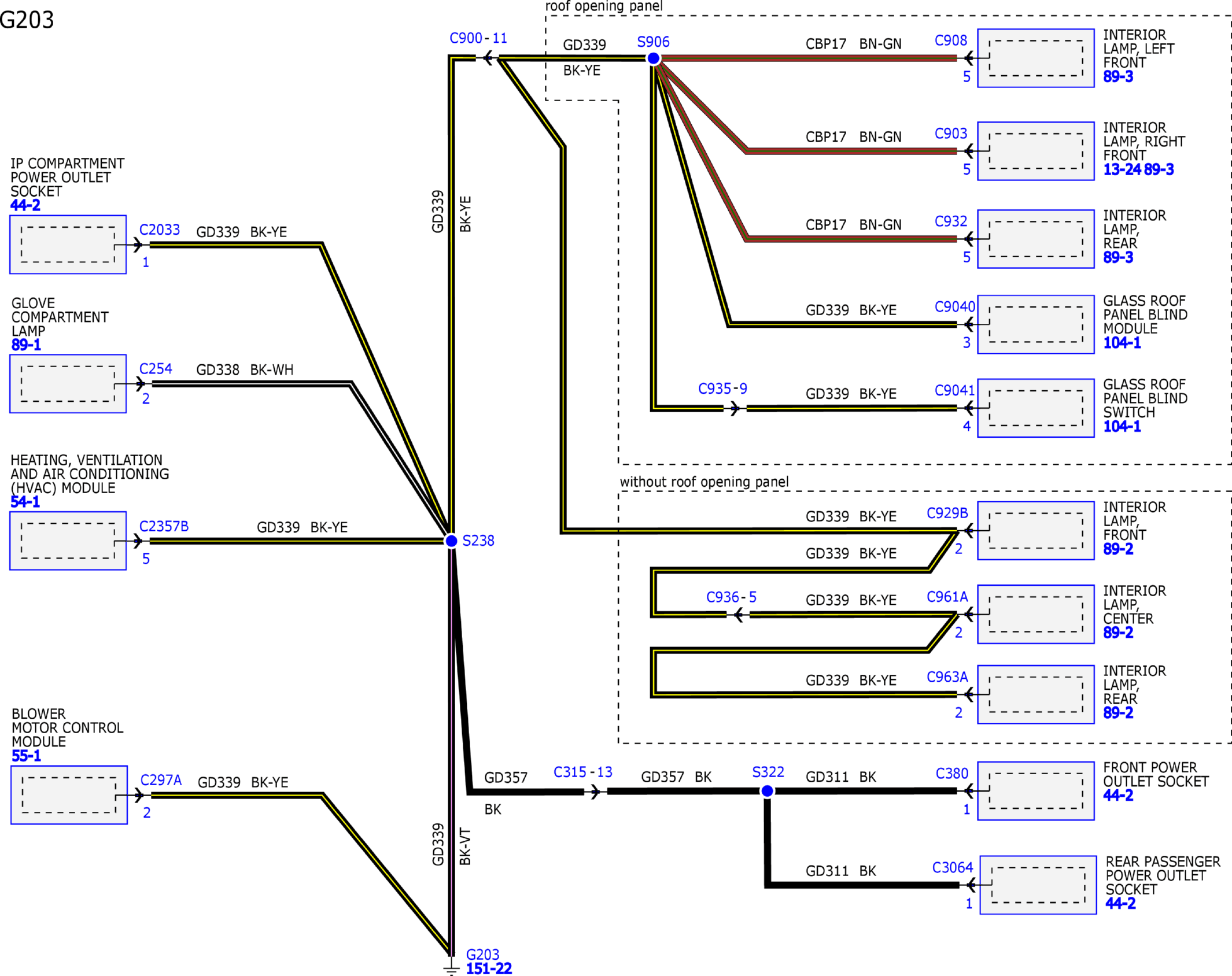

GFDW63455Courtesy of FORD MOTOR COMPANY
