Steering Gear: Installation

NOTE: To install, reverse the removal procedure.

1.

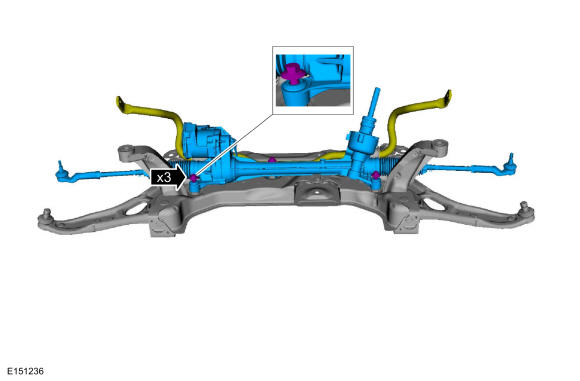

Install the steering gear, steering gear bolts finger tight. Position the front stabilizer bar.

GFD148387

Courtesy of FORD MOTOR COMPANY

2.

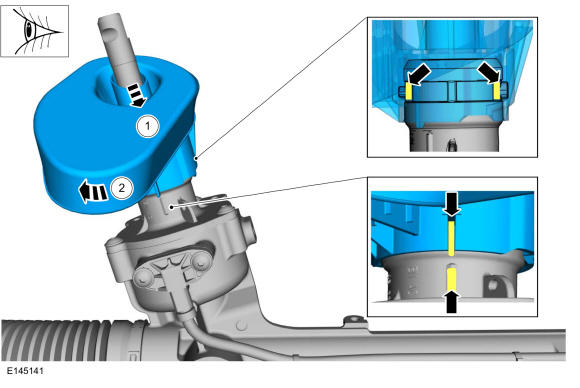

Check and install the steering gear boot on steering gear as shown.

GFD148388

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

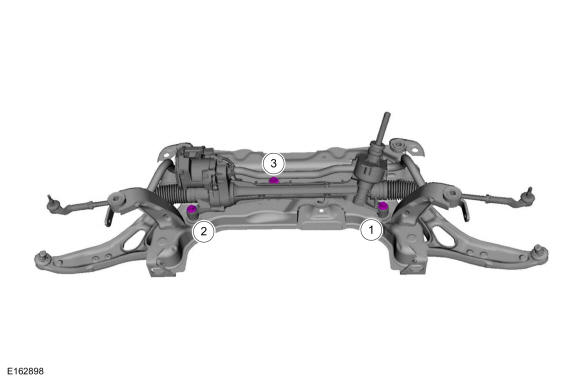

  Tighten the steering gear bolt.
  Torque:

  Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360 °

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180 °
1. 2.

  Tighten the steering gear bolt.
  Torque:

  Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360 °

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180 °
1. 3.

  Tighten the steering gear bolt.
  Torque:

  Stage 1: 81 lb.ft (110 Nm)

  Stage 2: Loosen: 360 °

  Stage 3: 41 lb.ft (56 Nm)

  Stage 4: 180 °

GFD148389

Courtesy of FORD MOTOR COMPANY
