Front Toe Adjustment

Special Tool(s) / General Equipment

Adjustment

• 1.


  NOTE: Make sure that the steering wheel lock is engaged.
  NOTE: Make sure that the road wheels are in the straight ahead position.

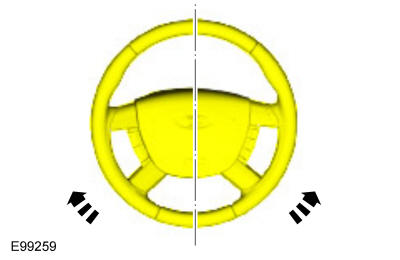

  Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY

• 2.

  Check the toe setting on both sides. Use the General Equipment: Wheel Alignment System

• 3.

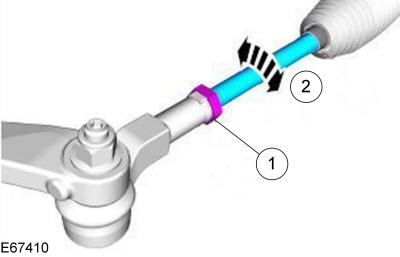

  • 1.

    On both sides, Loosen the outer tie rod end jamb nut.

    Torque: 66 lb.ft (90 Nm)

  • 2.


    NOTE: Make sure that the boot is correctly located.

    Rotate the tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

Courtesy of FORD MOTOR COMPANY
