Main Control Valve Body: Installation

  1. 1.

    Verify the check balls and the solenoid damper are in place.

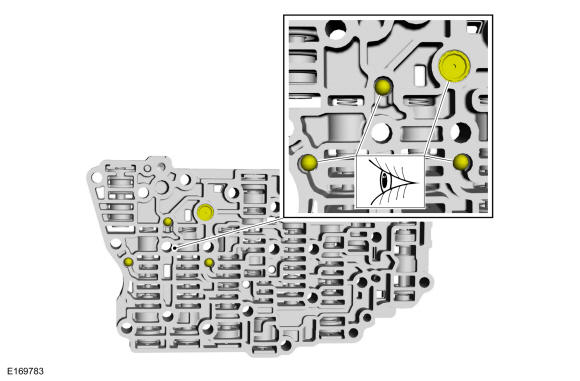

GFD149773Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: Make sure that a new component is installed.

    Install the solenoid body-to-valve body separator plate.

    Torque: 89 lb.in (10 Nm)

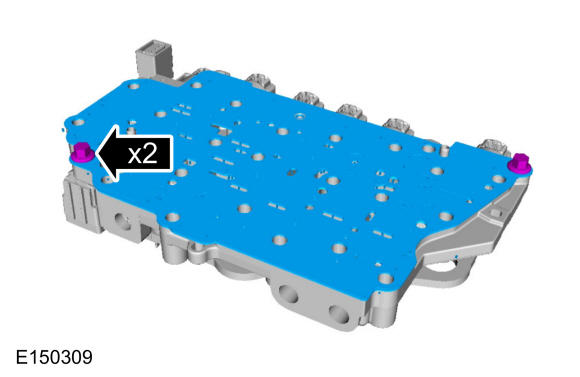

GFD149774Courtesy of FORD MOTOR COMPANY

  1. 3.

    • Install the main control valve body. And install the solenoid body and transmission internal wiring harness frame assembly.
    • Install the solenoid body-to-valve body bolt.

      Torque: 89 lb.in (10 Nm)

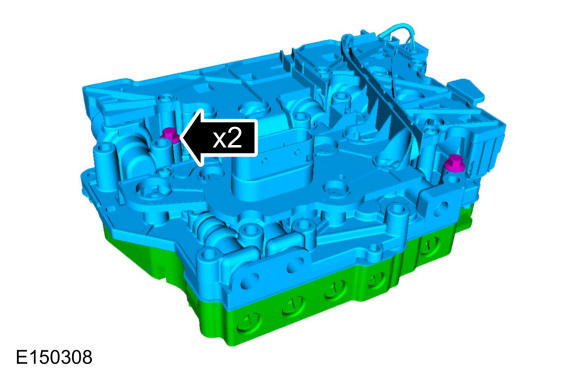

GFD149775Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Make sure that the component is correctly located on the locating dowels.
    NOTE: Make sure that a new component is installed.
    NOTE: Position the OSS and TR sensor wiring harnesses aside. On the alignment pins.

    Install and inspect the main control-to-transmission case separator plate to make sure it is positioned correctly.

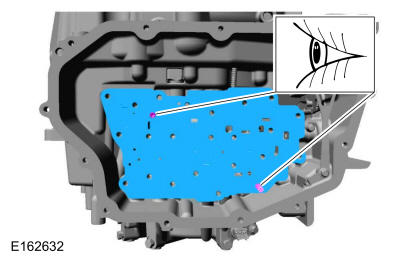

GFD149776Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Extreme cleanliness must be exercised when handling the component.
    NOTE: Take extra care when handling the components.
    • Install the transmission internal wiring harness frame, main control valve body and the solenoid body as an assembly.
    • Align the manual valve with the manual valve pin.

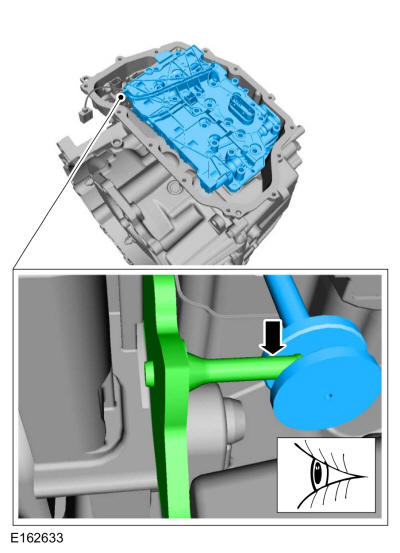

GFD149777Courtesy of FORD MOTOR COMPANY

  1. 6.

    Install the nut hand tight.

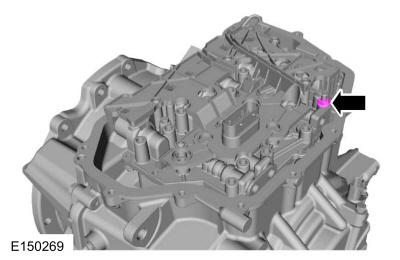

GFD149778Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: Only tighten the bolts finger tight at this stage.

    Install the bolts.

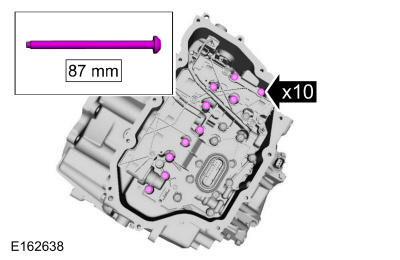

GFD149779Courtesy of FORD MOTOR COMPANY

  1. 8.

    NOTE: Only tighten the bolts finger tight at this stage.

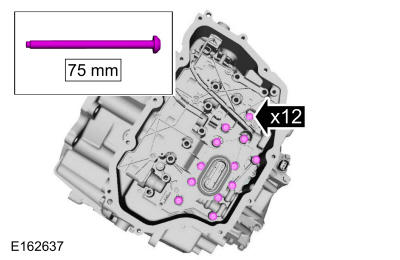

    Install the bolts.

GFD149780Courtesy of FORD MOTOR COMPANY

  1. 9.

    Tighten the main control-to-transmission case bolts and nut in a crisscross pattern.

    Torque: 89 lb.in (10 Nm)

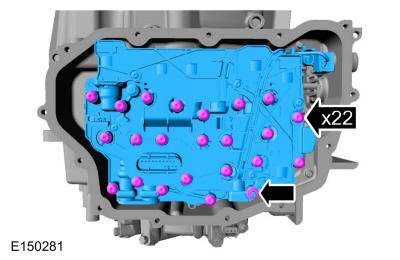

GFD149781Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: The gasket is to be reused unless damaged.

    Install the rubber grommet.

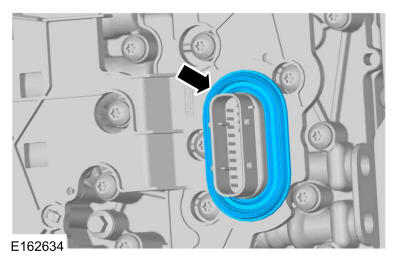

GFD149768Courtesy of FORD MOTOR COMPANY

  1. 11.

    NOTE: Make sure that the cable is correctly routed.

    Connect the OSS electrical connector.

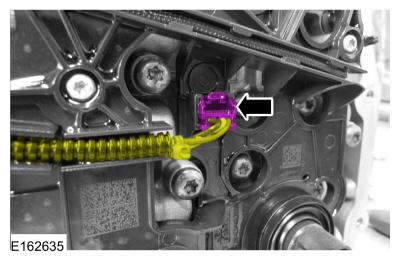

GFD149767Courtesy of FORD MOTOR COMPANY

  1. 12.

    Connect the TR sensor electrical connector.

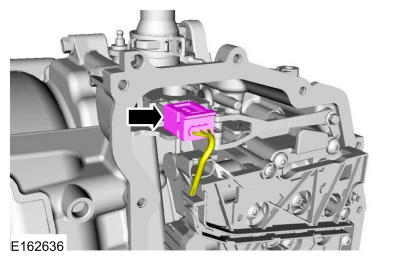

GFD149766Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the main control cover. Refer to: Main Control Cover - 1.6L EcoBoost (110kW/150PS) - Sigma/1.6L EcoBoost (132kW/180PS) - Sigma . Refer to: Main Control Cover - 2.5L Duratec (125kW/170PS) .

  1. 14.

    NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

    If a new solenoid body is installed, update the solenoid body strategy. Refer to: Transmission Strategy Download .
