Pinpoint Tests AX: Intake Throttle: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: TACM+, TACM-, TP, SIGRTN and VREF
intake throttle actuator (9E926)

PCM (12A650)

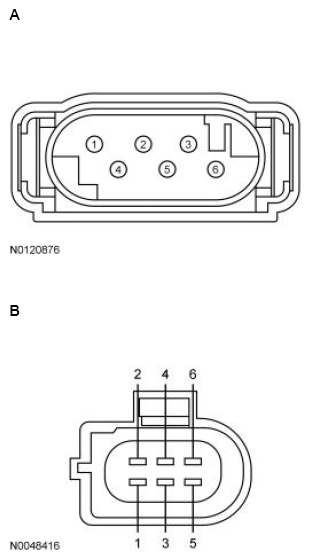

Fig 1: Identifying Intake Throttle Actuator Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	4 1 6 2 3	TACM- TACM+ TP SIGRTN VREF
All other vehicles	B	2 6 5 3 1	TACMTACM+ TP SIGRTN VREF

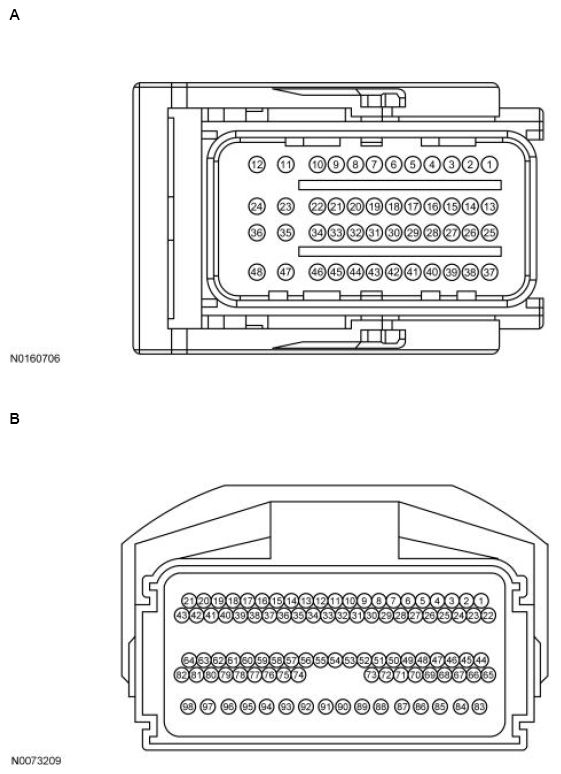

Fig 2: Identifying Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	44 43 16	TACMTACM+ TP
All other vehicles	B	44 45 29	TACMTACM+ TP
