Pinpoint Tests E: Manifold Absolute Pressure (MAP) Sensor: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

harness circuits: MAP, SIGRTN, and VREF
MAP sensor (14A464)

PCM (12A650)

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	MAP (Manifold Absolute Pressure)
1	SIGRTN (Signal Return)
3	VREF (Reference Voltage)

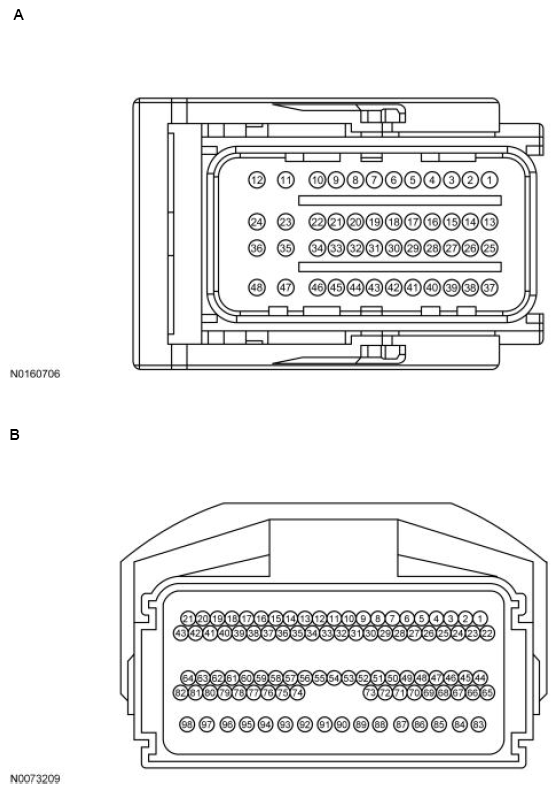

Fig 2: Identifying Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	28	MAP
All other vehicles	B	59	MAP
