Spring Lock Couplings
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 310-250Disconnect Tool, Fuel LineTKIT-2012A-FLTKIT-2012A-ROW | |
|---|---|
Disconnect
WARNING:
Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
- Refer to: Gasoline And Gasoline-Ethanol Fuel Systems Health And Safety Precautions .
- If servicing a liquid fuel tube spring lock coupling, release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Cables - Plug-In Hybrid Electric Vehicle (PHEV) .

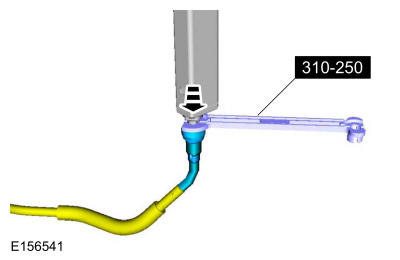

- Install the Spring Lock Coupling Disconnect Tool on the tube and push into the spring lock coupling to release. Use Special Service Tool: 310-250 Disconnect Tool, Fuel Line.

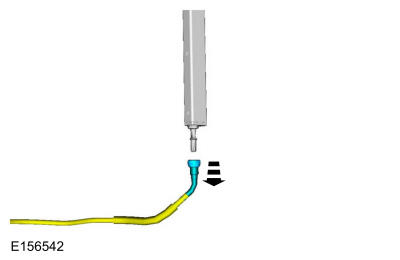

- Separate the spring lock coupling from the tube.
Connect
- Align and push the spring lock coupling onto the tube until fully seated.
- Pull on the coupling to make sure it is fully engaged.
- Connect the battery ground cable. Refer to: Battery Cables - Plug-In Hybrid Electric Vehicle (PHEV) .
