Selector Lever Cable Adjustment

Adjustment

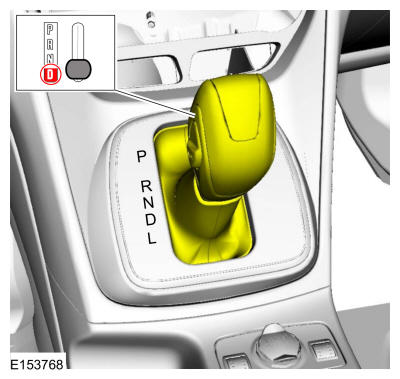

1. Refer to: Jacking And Lifting - Overview

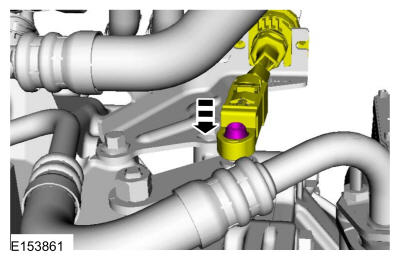

2. Courtesy of FORD MOTOR COMPANY

3. Courtesy of FORD MOTOR COMPANY

4. Courtesy of FORD MOTOR COMPANY

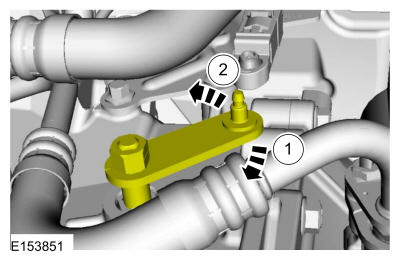

5. 1. Rotate the selector shaft lever clockwise until it stops.
   2. Rotate the selector shaft lever counterclockwise 3 detents.

   Courtesy of FORD MOTOR COMPANY

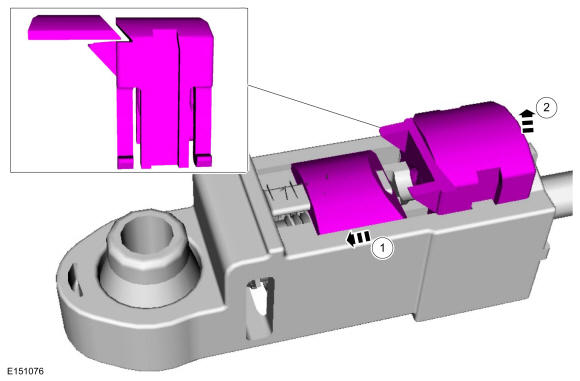

6. 1. Move the slide to the left.
   2. While holding the slide, position the adjuster lock upward.

   Courtesy of FORD MOTOR COMPANY

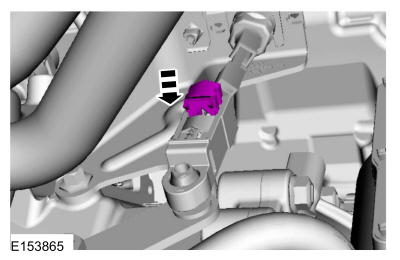

7. Courtesy of FORD MOTOR COMPANY

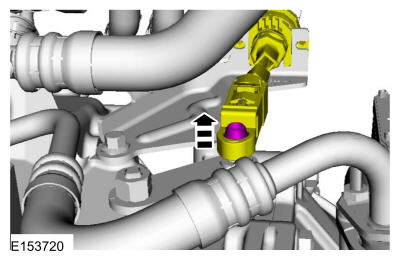

8. Courtesy of FORD MOTOR COMPANY

9. Courtesy of FORD MOTOR COMPANY

10. Verify that the vehicle only starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
