Selector Lever Cable: Installation

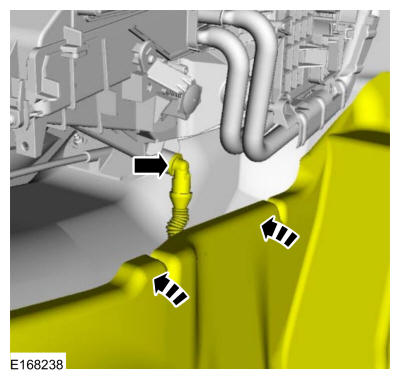

Install the selector lever cable.

Courtesy of FORD MOTOR COMPANY

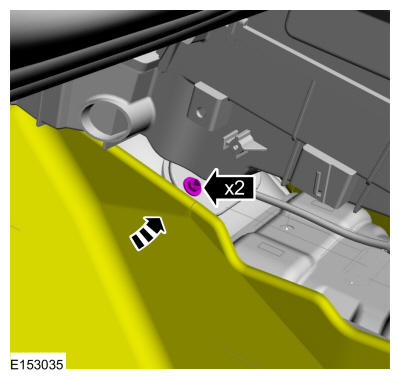

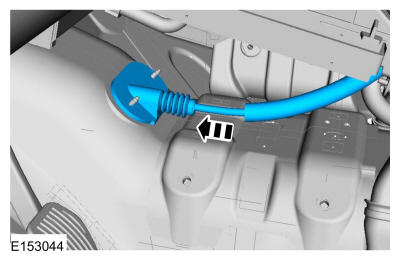

Install the selector lever cable grommet nuts and reposition the carpet.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the HVAC hose and reposition the carpet.

Courtesy of FORD MOTOR COMPANY

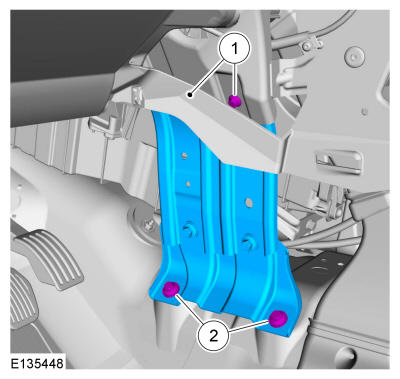

Install the instrument panel bracket and the bolts.
1. Torque: 89 lb.in (10 Nm)
2. Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

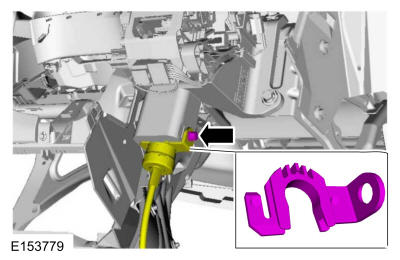

Connect the selector lever cable to the selector lever and install the bolt.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

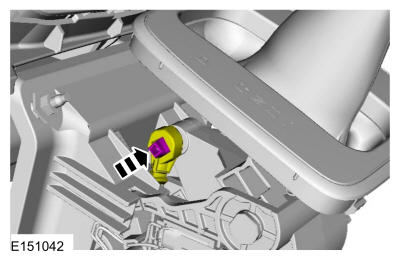

Connect the selector lever end to the selector lever.

Courtesy of FORD MOTOR COMPANY
Install the floor console.
Refer to: Floor Console

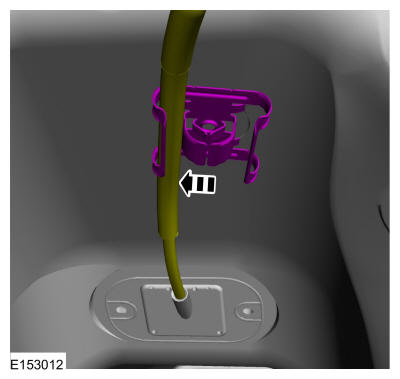

Connect the selector lever cable to the retainer.

Courtesy of FORD MOTOR COMPANY

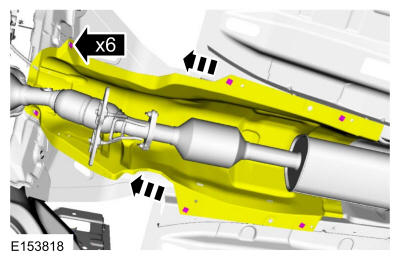

Position the exhaust heat shield and install the retainers.

Courtesy of FORD MOTOR COMPANY

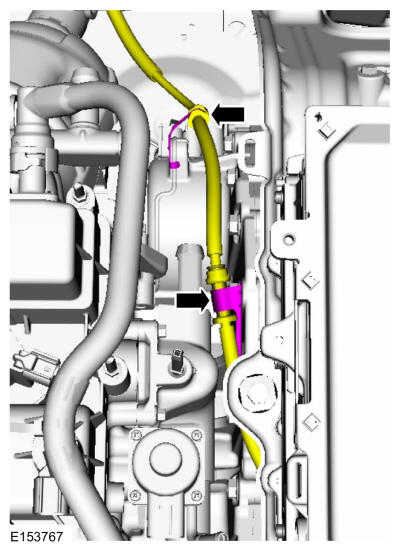

Connect the selector lever cable to the retainers.

Courtesy of FORD MOTOR COMPANY

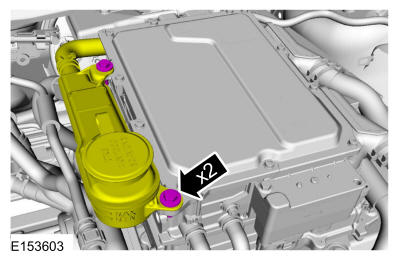

Position the brake fluid reservoir and install the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the selector lever cable to the bracket and install the bolt.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the air cleaner.
Refer to: Air Cleaner
Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY
Position the transmission manual lever in D.
1. Rotate the selector shaft lever clockwise until it stops.
2. Rotate the selector shaft lever counterclockwise 3 detents.
Courtesy of FORD MOTOR COMPANY
Unlock the selector lever cable adjuster.
1. Move the slide to the left.
2. While holding the slide, position the adjuster lock upward.
Courtesy of FORD MOTOR COMPANY

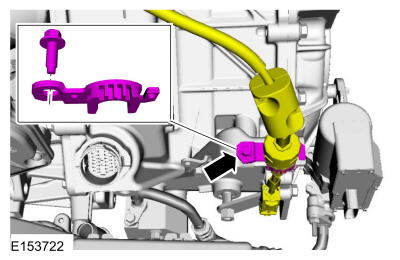

Connect the selector lever cable to the transmission manual lever.

Courtesy of FORD MOTOR COMPANY
Lock the adjuster.

Courtesy of FORD MOTOR COMPANY
Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY
Verify that the vehicle only starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
