Possible Causes

Fig 1: Antilock Braking System (ABS) Module Connector - C135
GFDW79032Courtesy of FORD MOTOR COMPANY

Harness Side

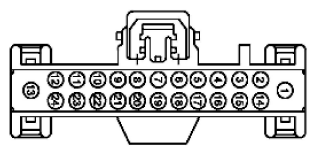

Fig 2: Gateway Module A (GWM) Connector - C2431
G11915580Courtesy of FORD MOTOR CO.

Harness Side

Fig 3: PSCM-A (-A) Connector - C1436A
G11676840Courtesy of FORD MOTOR CO.

Harness Side

Fig 4: PSCM-B (-B) Connector - C1463B
G09694751Courtesy of FORD MOTOR CO.

Harness Side

  1. AE1: CHECK THE COMMUNICATION NETWORK
    • Ignition ON, engine OFF.
    • Press the Read Vehicle Information button to view the results of the modules communicating on the network.
    • Retrieve the continuous memory DTCs.
    • Does the PSCM pass the Network Test?
      Yes No
      Go to  AE2. DIAGNOSE the PSCM does not communicate with the diagnostic scan tool. REFER to COMMUNICATIONS NETWORK .
  2. AE2: RECHECK THE ABS MODULE DTCS
    • Clear the ABS DTCs.
    • Ignition OFF.
    • Ignition ON, engine OFF.
    • Carry out the ABS self-test.
    • Is DTC U0131:xx or U0420:xx retrieved again?
      Yes No
      Go to  AE3. The system is operating correctly at this time. The DTC may have been set due to high network traffic or an intermittent fault condition.
  3. AE3: CHECK FOR ABS MODULE VOLTAGE CONCERN DTCS
    • Review the results from the recorded ABS module self-test.
    • Is DTC U3003:16 or U3003:17 present?
      Yes No
      For DTC U3003:16, Go to PINPOINT TEST A .
      For DTC U3003:17, Go to PINPOINT TEST F .      		 Go to  AE4.
  4. AE4: CHECK THE PSCM FOR DTCS
    • Carry out the PSCM self-test.
    • Are any PSCM DTCs present?
      Yes No
      DIAGNOSE the PSCM DTC. REFER to POWER STEERING . Go to  AE5.
  5. AE5: CHECK FOR OTHER CAUSES OF COMMUNICATION NETWORK CONCERN
    NOTE: If new modules were installed prior to the DTC being set, the module configuration can be incorrectly set during the PMI or the PMI may not have been carried out.
    • Check the vehicle service history for recent service actions related to the PSCM or the ABS module. If recent service history is found:
      • Verify the correct replacement module was installed. HVBOM may be used to verify correct part fitment.
      • Verify the configuration of replacement module was correct. Re-configure the module using as-built data if prior configuration is suspect.
      • Verify the module was not obtained from a like vehicle and installed into customer vehicle. Return the swapped module to source vehicle and obtain new replacement module.
    • Operate the system and determine if the observable symptom is still present.
    • Is the observable symptom still present?
      Yes No
      Go to  AE6. The system is operating correctly at this time. The concern may have been due to incorrect parts replacement procedures or incorrect module configuration.
  6. AE6: CHECK FOR COMMUNICATION DTCS IN OTHER MODULES
    • Ignition ON, engine OFF.
    • Retrieve the continuous memory DTCs.
    • Is DTC U0131:xx or U0420:xx set in 1 or more modules in addition to the ABS module?
      Yes No
      Go to  AE7. Go to  AE8.
  7. AE7: VERIFY PSCM OPERATION
    • Ignition OFF.
      NOTE: The battery must be removed to access the ABS module electrical connector.
    • Remove the battery. Refer to the BATTERY .
    • PSCM_A connector disconnected. (C1436A)
    • PSCM_B connector disconnected. (C1463B)
    • GWM connector disconnected. (C2431)
    • ABS Module connector disconnected. (C135)
    • Using a good light source, inspect all disconnected electrical connectors for the following:
      • corrosion - install new connector or terminal and clean the module pins
      • damaged or bent pins - install new terminals or pins
      • pushed-out pins - install new pins as necessary
      • spread terminals - install new terminals as necessary
    • ABS Module connector connected. (C135) Make sure the connector seats and latches correctly.
    • GWM connector connected. (C2431) Make sure the connector seats and latches correctly.
    • PSCM_B connector connected. (C1463B) Make sure the connector seats and latches correctly.
    • PSCM_A connector connected. (C1436A) Make sure the connector seats and latches correctly.
    • Install the battery. Refer to the BATTERY .
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
      Yes No

      INSTALL a new EPAS gear.
      CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA.
      If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions.
      If no service articles address this concern, INSTALL a new EPAS gear. REFER to POWER STEERING SYSTEM .
      ORDER a replacement EPAS gear and INCLUDE the RVC on the form.
      If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.      		 The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues.
      If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.
  8. AE8: VERIFY ABS MODULE OPERATION
    • Ignition OFF.
      NOTE: The battery must be removed to access the ABS module electrical connector.
    • Remove the battery. Refer to the BATTERY .
    • ABS Module connector disconnected. (C135)
    • GWM connector disconnected. (C2431)
    • PSCM_A connector disconnected. (C1436A)
    • PSCM_B connector disconnected. (C1463B)
    • Using a good light source, inspect all disconnected electrical connectors for the following:
      • corrosion - install new connector or terminal and clean the module pins
      • damaged or bent pins - install new terminals or pins
      • pushed-out pins - install new pins as necessary
      • spread terminals - install new terminals as necessary
    • PSCM_B connector connected. (C1463B) Make sure the connector seats and latches correctly.
    • PSCM_A connector connected. (C1436A) Make sure the connector seats and latches correctly.
    • GWM connector connected. (C2431) Make sure the connector seats and latches correctly.
    • ABS Module connector connected. (C135) Make sure the connector seats and latches correctly.
    • Install the battery. Refer to the BATTERY .
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
      Yes No
      INSTALL a new ABS module.
      CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA.
      If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions.
      If no service articles address this concern, INSTALL a new ABS module. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE .
      ORDER a replacement ABS module and INCLUDE the RVC on the form.
      If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.      		 The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues.
      If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.
  9. AE9: VERIFY ABS MODULE OPERATION
    • Ignition OFF.
      NOTE: The battery must be removed to access the ABS module electrical connector.
    • Remove the battery. Refer to the BATTERY .
    • ABS Module connector disconnected. (C135)
    • GWM connector disconnected. (C2431)
    • PSCM_A connector disconnected. (C1436A)
    • PSCM_B connector disconnected. (C1463B)
    • Using a good light source, inspect all disconnected electrical connectors for the following:
      • corrosion - install new connector or terminal and clean the module pins
      • damaged or bent pins - install new terminals or pins
      • pushed-out pins - install new pins as necessary
      • spread terminals - install new terminals as necessary
    • PSCM_B connector connected. (C1463B) Make sure the connector seats and latches correctly.
    • PSCM_A connector connected. (C1436A) Make sure the connector seats and latches correctly.
    • GWM connector connected. (C2431) Make sure the connector seats and latches correctly.
    • ABS Module connector connected. (C135) Make sure the connector seats and latches correctly.
    • Install the battery. Refer to the BATTERY .
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
      Yes No
      INSTALL a new ABS module.
      CHECK OASIS for any applicable service articles: TSB, GSB, SSM or FSA.
      If a service article exists for this concern, DISCONTINUE this test and FOLLOW the service article instructions.
      If no service articles address this concern, INSTALL a new ABS module and HCU assembly. REFER to ANTI-LOCK BRAKE SYSTEM (ABS) MODULE and HYDRAULIC CONTROL UNIT (HCU) .
      ORDER a replacement and HCU assembly module and INCLUDE the RVC on the form.
      If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.      		 The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. ADDRESS the root cause of any connector or pin issues.
      If this is a Ford paid repair, INCLUDE the RVC on the warranty claim form.
