Side Obstacle Detection Control Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: SODL shown, SODR similar.

NOTE: If installing a new SODL or SODR, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new SODL or SODR after installation.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the onscreen instructions.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .
Remove the rear quarter panel moulding. Refer to: Rear Quarter Panel Moulding .

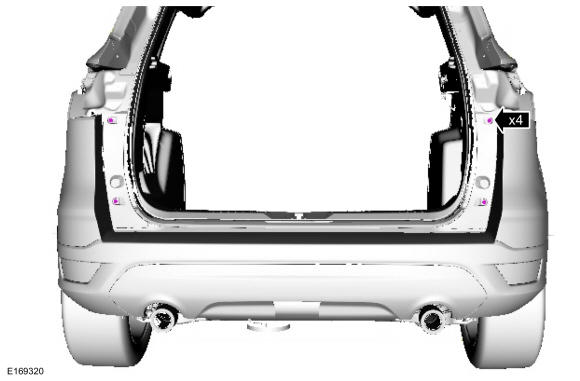

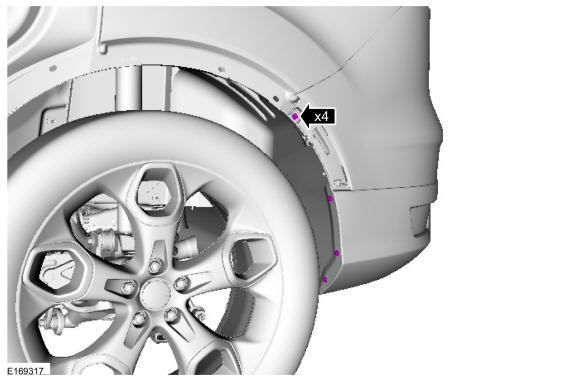

Remove the screws.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

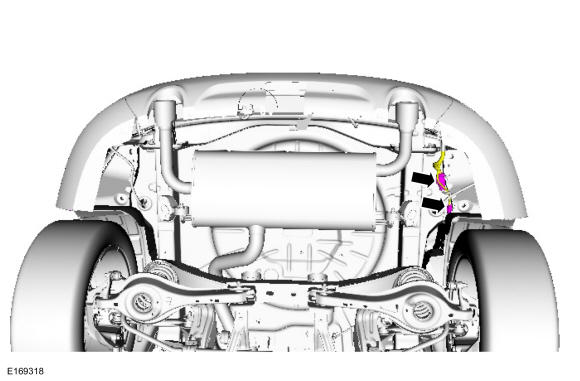

Disconnect the electrical connectors and position aside wiring harness.

Courtesy of FORD MOTOR COMPANY

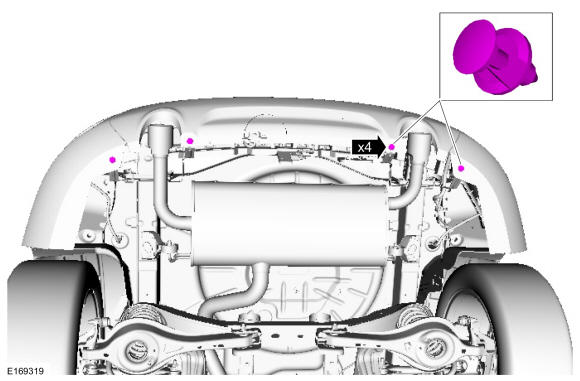

Remove the push pins.

Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

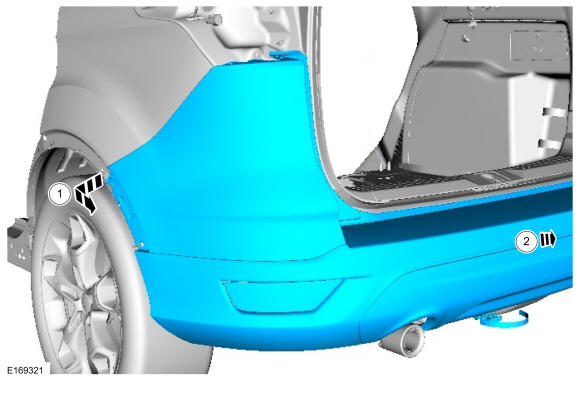

Gently flex the rear bumper cover to access the SODL or the SODR.

Courtesy of FORD MOTOR COMPANY

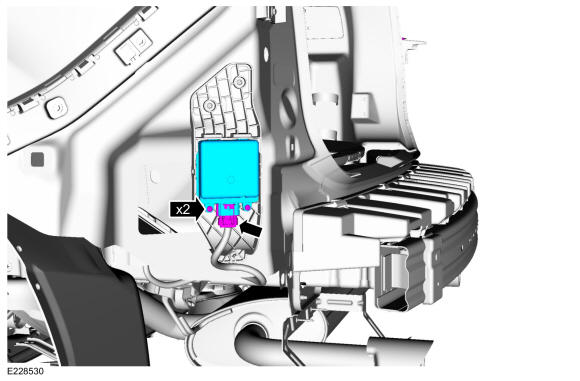

Disconnect the electrical connector, remove the screws and the SOD.

Courtesy of FORD MOTOR COMPANY

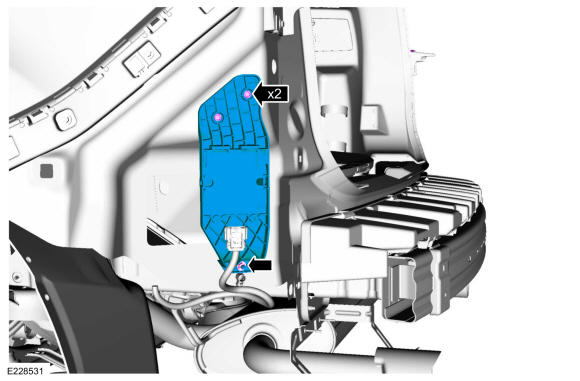

If required. Remove the retainer and the SOD bracket.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
