Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

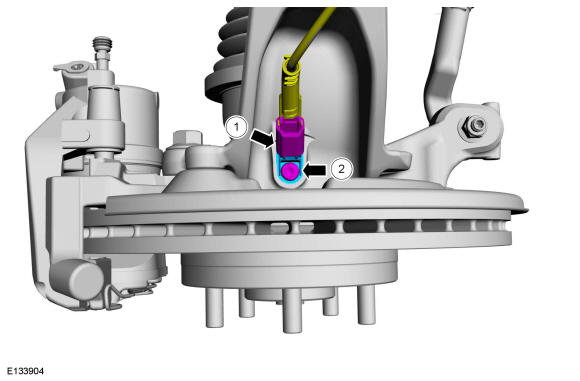

    1. Disconnect the electrical connector.
    2. Remove the bolt and the front wheel speed sensor.

      Torque: 42 lb.in (4.8 Nm)

GFD182420Courtesy of FORD MOTOR COMPANY
