Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: FWD vehicle shown, AWD vehicles similar.

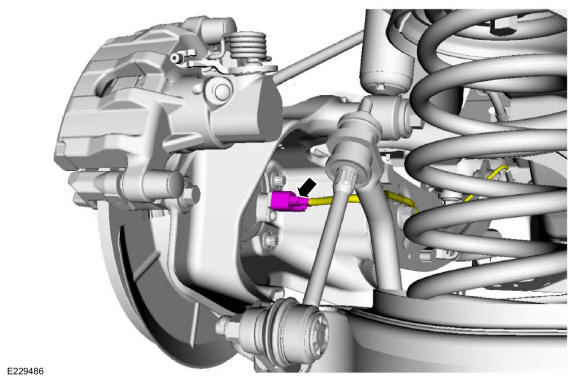

  1. Disconnect the electrical connector.
    GFD186304Courtesy of FORD MOTOR COMPANY

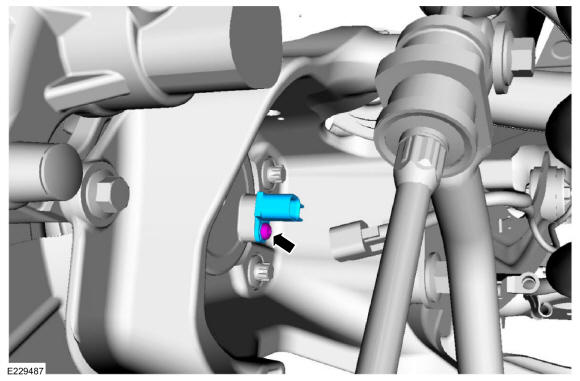

  2. Remove the bolt and the rear wheel speed sensor.

    Torque: 42 lb.in (4.8 Nm)

GFD186305Courtesy of FORD MOTOR COMPANY
