Transfer Case Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

Materials

Name	Specification
Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

Follow the health and safety precautions. Refer to: Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

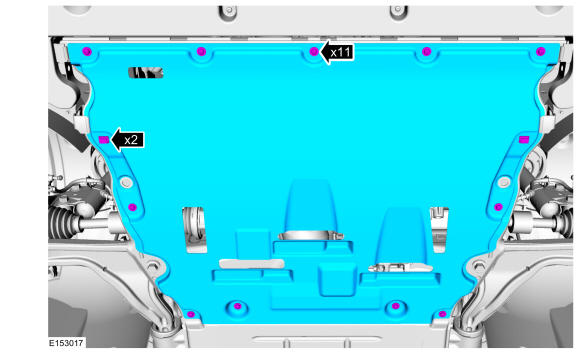

If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

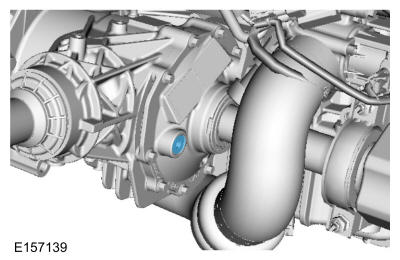

Remove the PTU (Power Transfer Unit) fill plug.

Courtesy of FORD MOTOR COMPANY
Fill the PTU with clean fluid, level with the fill plug opening.
Material: Motorcraft ® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY
Install the PTU fill plug.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
