Transfer Case

WARNING: This page is about a different variant/trim than selected.

All vehicles

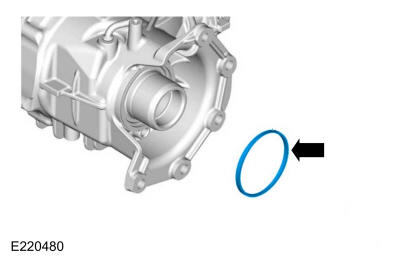

Install a new compression seal.

Courtesy of FORD MOTOR COMPANY

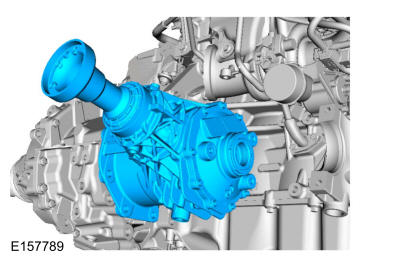

Install the PTU.

Courtesy of FORD MOTOR COMPANY

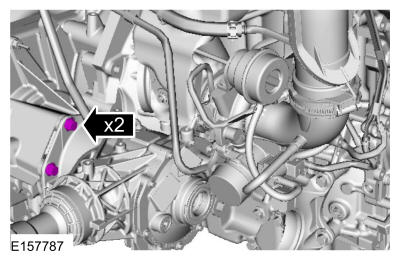

Install the new top PTU bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

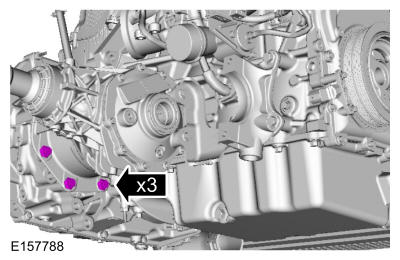

Install the new bottom PTU bolts.
Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
Check the PTU fluid level. Refer to: Transfer Case Fluid Level Check .
2.0L EcoBoost (177kW/240PS) - MI4

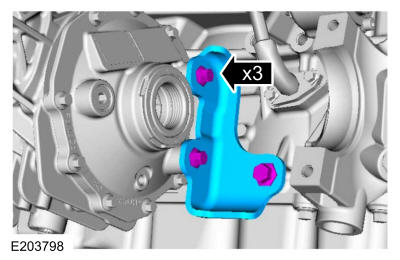

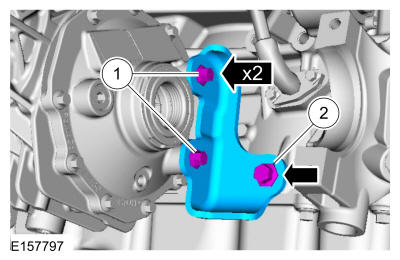

Install the PTU support bracket and the support bracket bolts.
Torque:

1: 18 lb.ft (25 Nm)

2: 46 lb.ft (63 Nm)

Courtesy of FORD MOTOR COMPANY

1.5L EcoBoost (132kW/180PS) - I4/1.6L EcoBoost (132kW/180PS) - Sigma
NOTE: 2.0L shown. 1.5L and 1.6L similar.

Install the PTU support bracket and the support bracket bolts.

Torque :: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

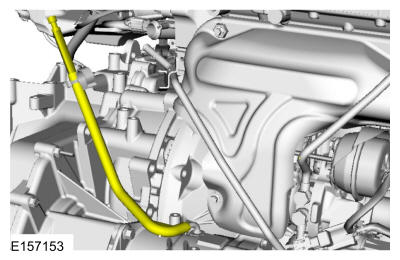

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

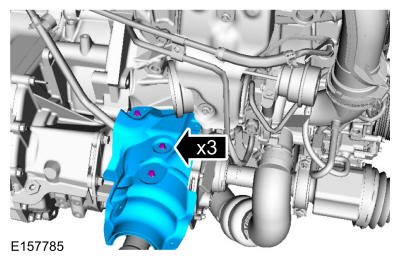

Install the PTU heat shield and heat shield bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH halfshaft. Refer to: Front Halfshaft RH .
2.0L EcoBoost (177kW/240PS) - MI4
Install the catalytic converter. Refer to: Catalytic Converter .

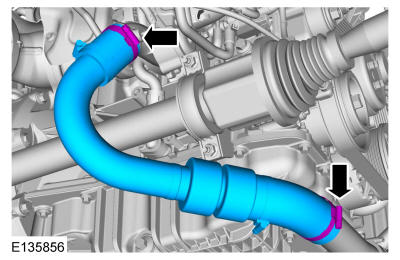

Install the CAC tube.
Torque:

1: 44 lb.in (5 Nm)

2: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the rear driveshaft. Refer to: Rear Driveshaft .
1.6L EcoBoost (132kW/180PS) - Sigma
Install the CAC tube.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

1.5L EcoBoost (132kW/180PS) - I4/1.6L EcoBoost (132kW/180PS) - Sigma

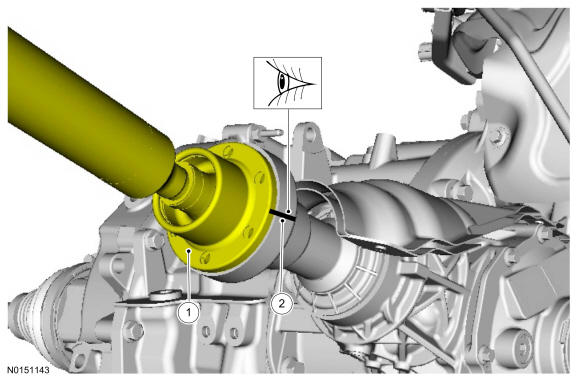

Align the index-mark on driveshaft to the PTU pinion flange.

Courtesy of FORD MOTOR COMPANY

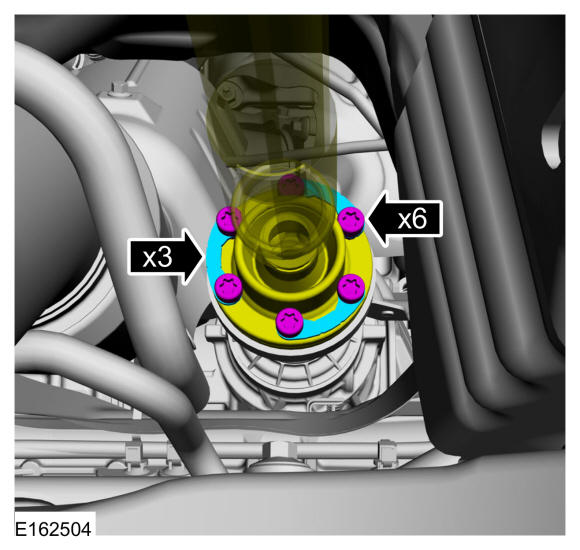

Install the new driveshaft-to-pinion flange bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

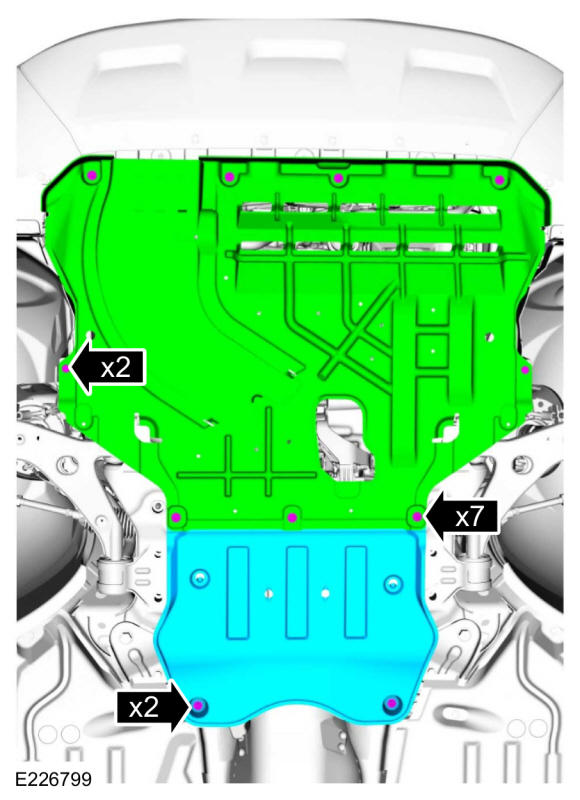

All vehicles

Courtesy of FORD MOTOR COMPANY
