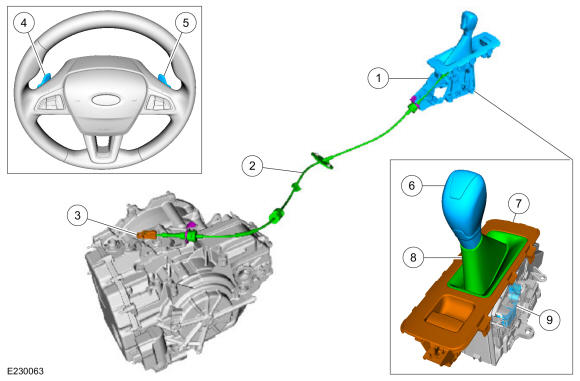

Component Location

GFD184357Courtesy of FORD MOTOR COMPANY
Item Description
1 Selector lever assembly
2 Selector lever cable
3 Selector lever adjuster
4 Downshift paddle switch
5 Upshift paddle switch
6 Selector lever knob
7 Selector lever bezel
8 Selector lever boot
9 Brake shift interlock actuator
