Selector Lever Assembly: Removal
NOTE:
Removal steps in this procedure may contain installation details.

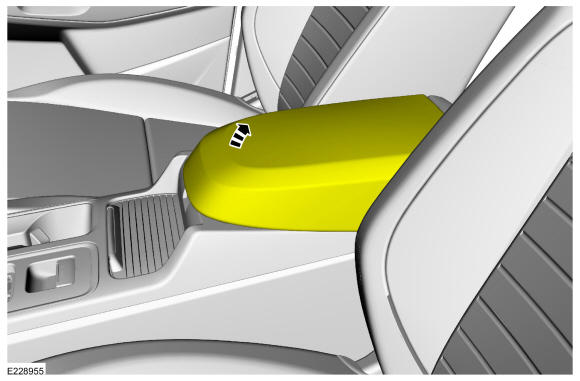

- Open the floor console stowage bin lid.

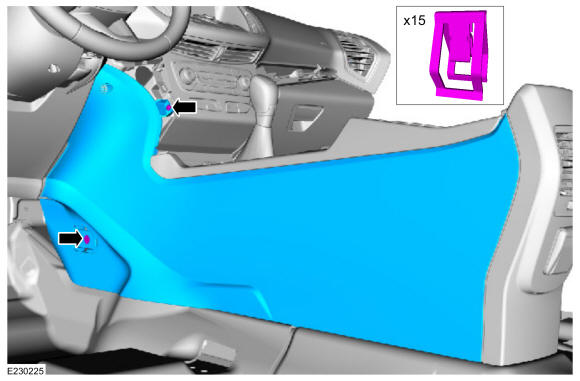

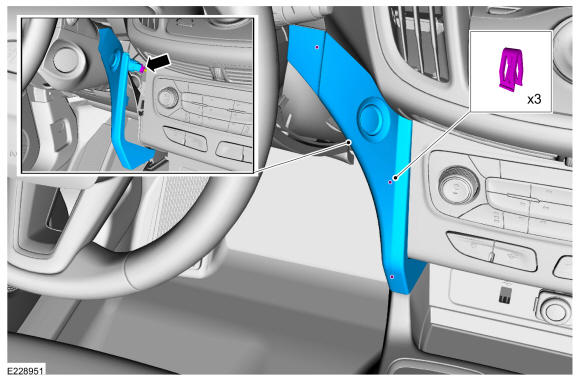

- Release the clips, disconnect the Start/Stop switch electrical connector and remove the LH instrument panel lower finish panel.

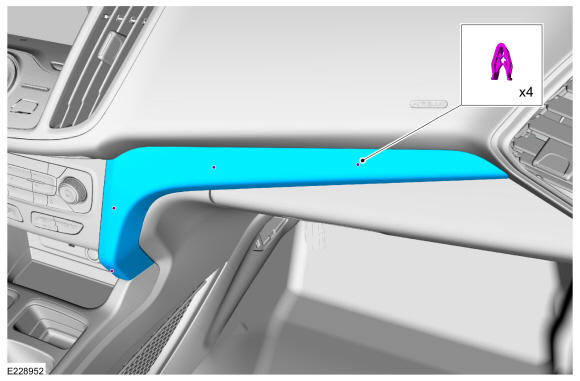

- Release the clips and remove the RH instrument panel lower finish panel.

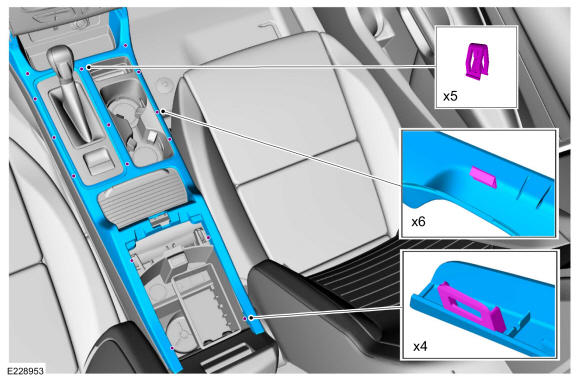

- Release the retainers and remove the floor console upper trim panel.

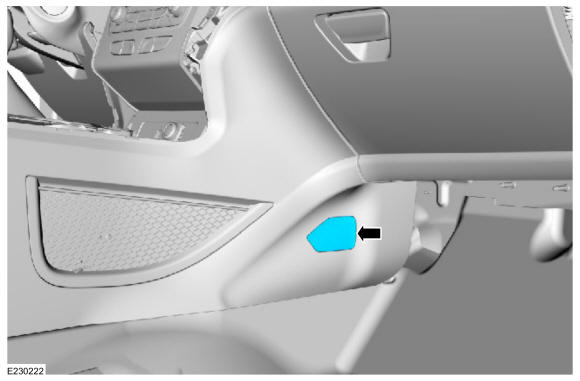

- Remove the RH console finish panel retainer cover.

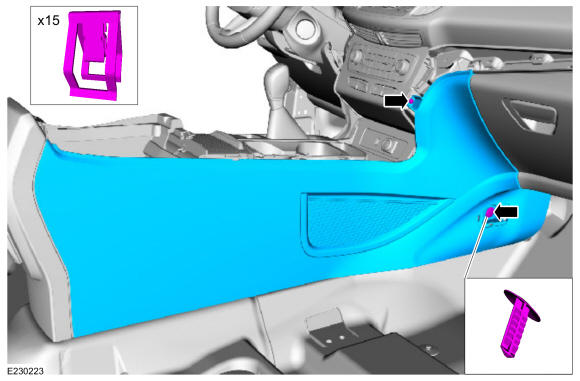

- Remove the pushpin, the bolt and the RH console finish panel.

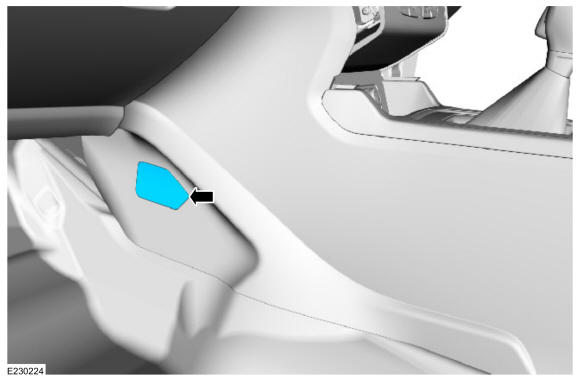

- Remove the LH console finish panel retainer cover.
- Remove the screws and the LH console finish panel.

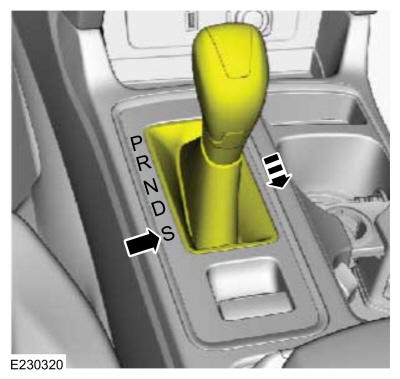

- Position the selector lever in S.

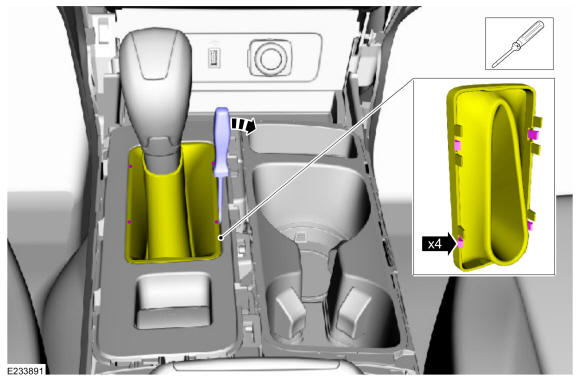

- Using a small screwdriver, pry the selector lever boot clips away from the selector lever bezel and position the boot aside.

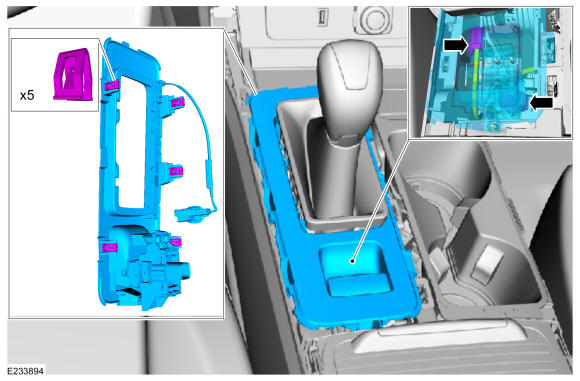

- Detach the selector lever bezel, raise the bezel, detach and disconnect the selector lever light bar electrical connector, disconnect the parking brake switch and remove the bezel.

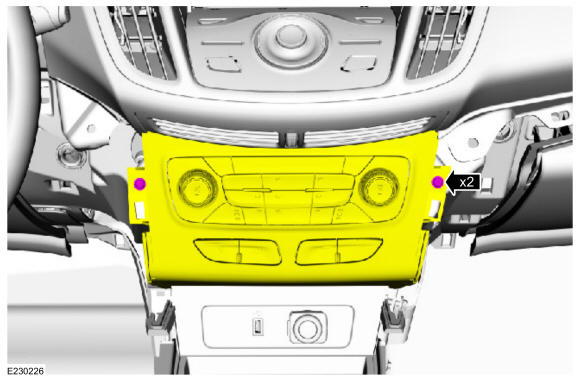

- Remove the screws and position the HVAC control panel aside.

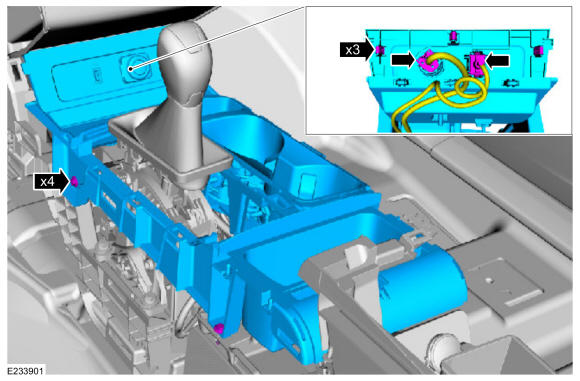

- Remove the bolts, detach the clips and reposition the lower console finish panel, disconnect the power point and USB electrical connectors and remove the lower console finish panel.

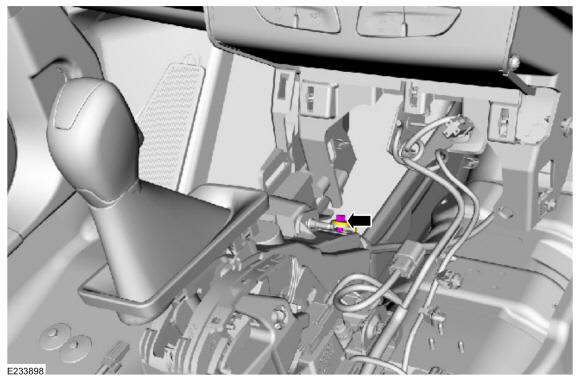

- Remove the selector lever cable retaining clip bolt.
-

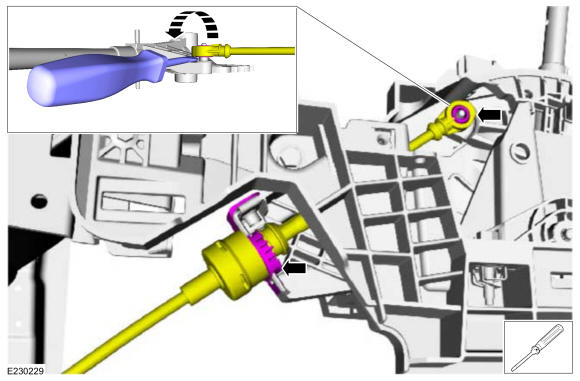

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.
Using a screwdriver, pry the selector lever cable end from the selector lever and disconnect the selector lever cable clip from the selector lever assembly.

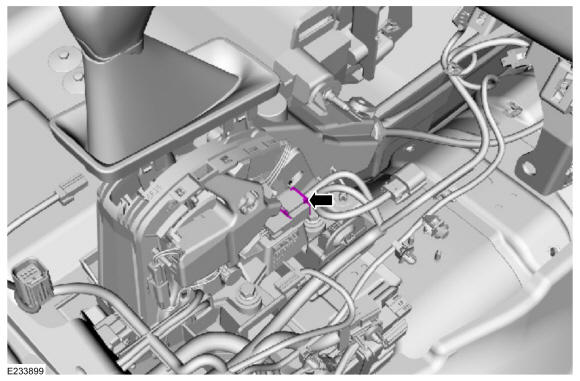

- Disconnect the selector lever electrical connector.

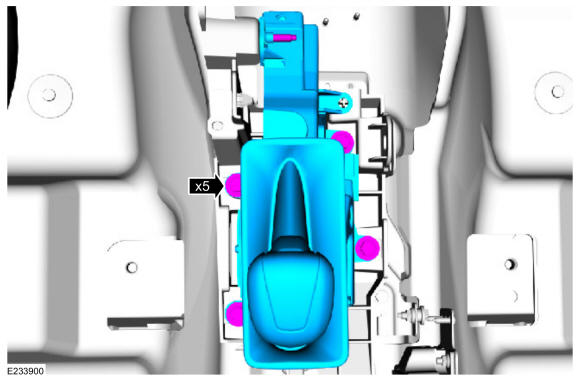

- Remove the bolts and the selector lever.
Torque: 71 lb.in (8 Nm)
