Selector Lever Cable: Removal
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the floor console. Refer to: Floor Console .
- Remove the bolts and the LH side console housing support bracket.
- Remove the retainers and the engine undershield.
FWD vehicles
- Remove the air cleaner. Refer to: Air Cleaner 1.5L EcoBoost (132kW/180PS) - I4 . Or Refer to: Air Cleaner 2.0L EcoBoost (177kW/240PS) . Or Refer to: Air Cleaner 2.5L Duratec (125kW/170PS) .

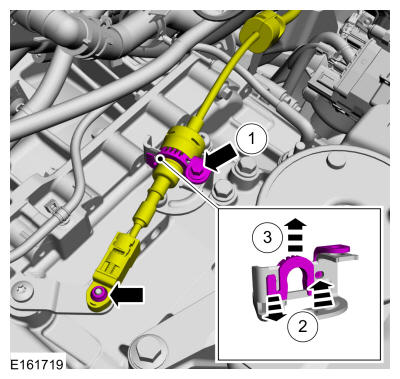

- Disconnect the selector lever cable from the transmission manual lever and the bracket.
- Remove the selector lever cable bracket bolt.
- Disengage the selector lever cable holding clip.
- Disconnect the selector lever cable.

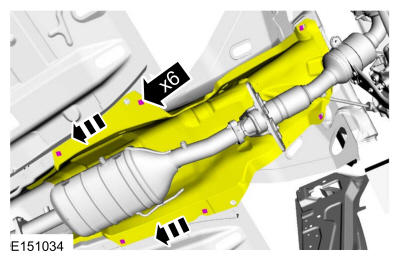

- Remove the nuts and position the front floor exhaust system heat shield aside.
AWD vehicles
- Remove the battery tray. Refer to: Battery Tray .

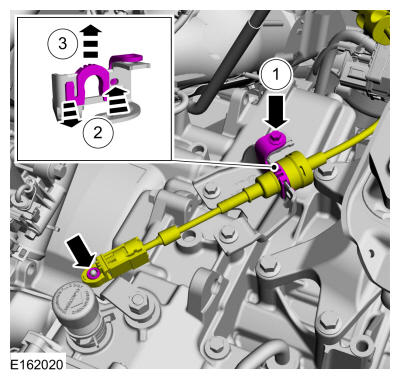

- Disconnect the selector lever cable from the transmission manual lever and the bracket.
- Remove the selector lever cable bracket bolt.
- Disengage the selector lever cable holding clip.
- Disconnect the selector lever cable.

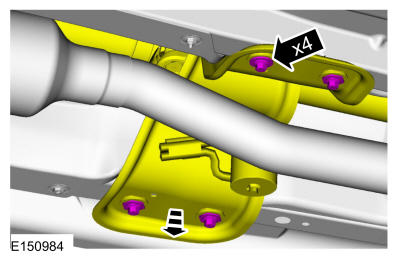

- Remove the bolts and position the exhaust pipe mounting bracket aside.

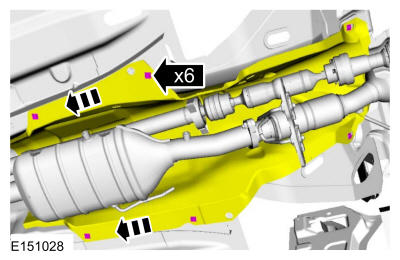

- Remove the nuts and position the front floor exhaust system heat shield aside.
All vehicles
- Disconnect the selector lever cable retainer.

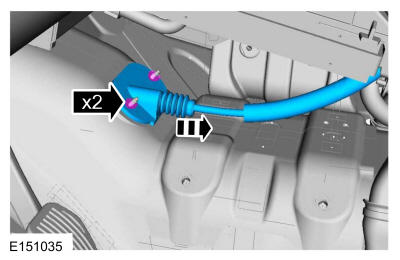

- Remove the nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.
