Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Position the selector lever in S.
    GFD184374Courtesy of FORD MOTOR COMPANY
  2. Using a small screwdriver, pry the selector lever boot clips away from the selector lever bezel and position the boot aside.
    GFD184359Courtesy of FORD MOTOR COMPANY

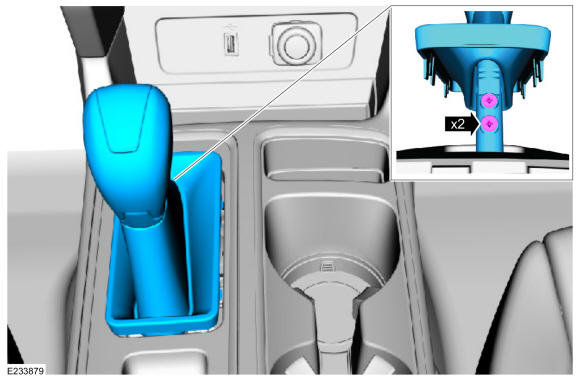

  3. Lift the boot, remove the screws and remove the boot and knob as an assembly.
    GFD184396Courtesy of FORD MOTOR COMPANY

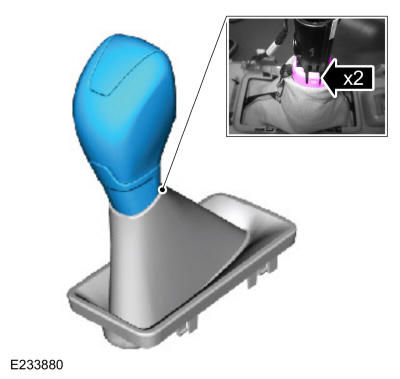

  4. Release the tabs on the selector lever boot and remove the selector lever knob from the selector lever boot.
GFD184397Courtesy of FORD MOTOR COMPANY
