Integrated Wheel End (IWE): Notes

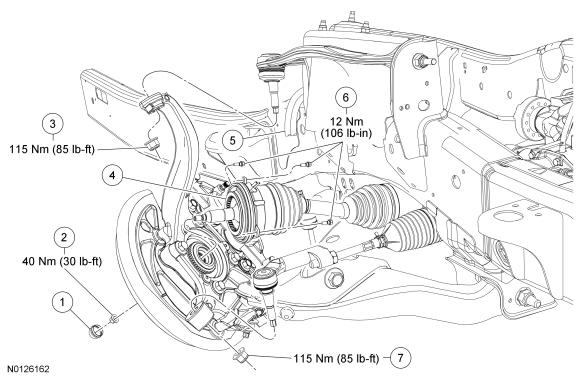

Fig 1: Integrated Wheel End Replacement Components With Torque Specifications
GFD136463Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 1131 Dust cap
2 N802827-S-S Axle nut
3 W520215-S-S Upper ball joint nut
4 3C247 Integrated Wheel End (IWE)
5 - Vacuum vent and supply tube
6 W710279-S-S IWE bolts (3 required)
7 W520215-S-S Tie-rod nut
