Mode Select Switch (MSS): Removal

Navigator

  1. 1.

    NOTE: The Mode Select Switch (MSS) is not serviceable separately.

    Refer to FCIM, Information and Entertainment Systems - THX Audio System .

Expedition

  1. 2.

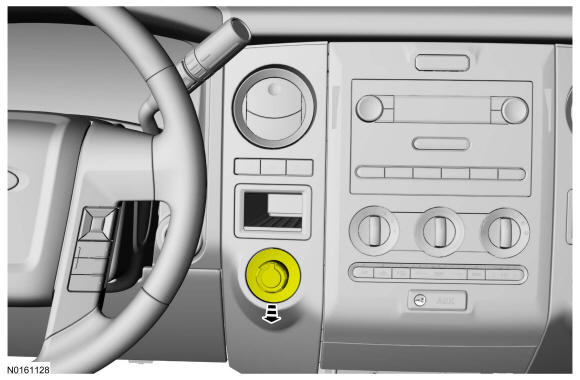

    Carefully pry the Mode Select Switch (MSS) from the instrument panel.
GFD136465Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the MSS harness connector and remove the switch.
GFD136466Courtesy of FORD MOTOR COMPANY
