Heated Seat Module - Second Row: Notes

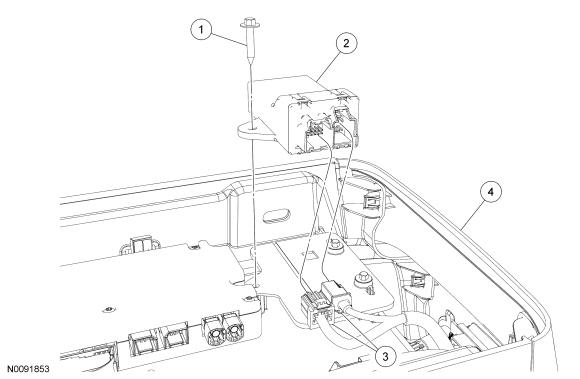

NOTE: Bottom of floor console shown.
GFD137550Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Screw
2 14C724 Heated seat module
3 - Electrical connectors (part of 14B079)
4 - Front floor console
