Main Control: Disassembly
NOTE:
Make an identifying mark on each solenoid and the corresponding bore for correct assembly.
NOTE:
Solenoids may visually appear the same but their designs/functions are different. Use care not to assemble the main control assembly incorrectly. Incorrect solenoid installation results in poor transmission shift quality.
NOTE:
Note the location of the 8 check balls, 6 solenoid dampers, 2 internal valves and springs and 2 filter screens for reassembly.
Main Control Upper Half
- 3.

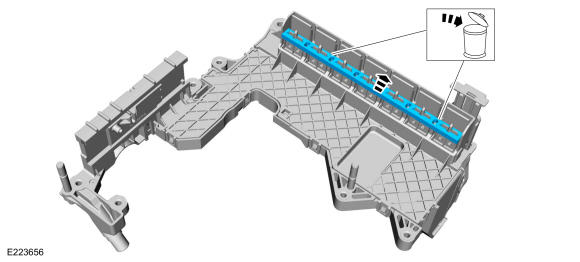

Carefully separate the molded leadframe from the main control assembly.- 1.
Molded leadframe
- 2.
Main control assembly
- 1.
- 6.
Separate the lower half of the main control assembly from the upper half of the main control assembly.
- 8.

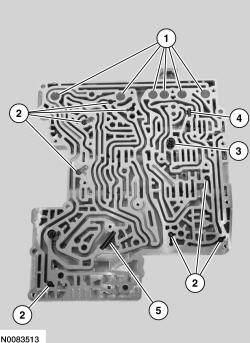

Remove the solenoid dampers, check balls, converter drain back valve and filter screens from the main control assembly. Note the location for assembly.- 1.
Solenoid dampers
- 2.
Check balls
- 3.
Converter drain back valve
- 4.
Small filter screen
- 5.
Large filter screen
- 1.
- 9.

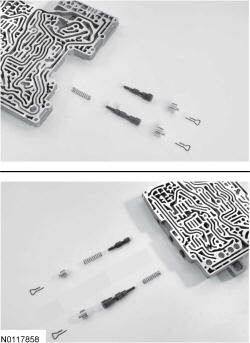

Remove the retaining clips, caps, valves and valve springs from each bore of the main control assembly. Note the location and order for assembly.
Main Control Lower Half
- 13.

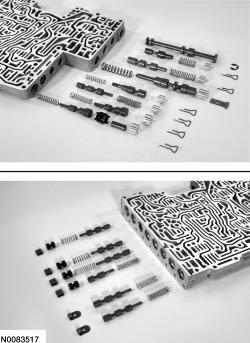

Remove the retaining clips, caps, valves and valve springs from each bore of the main control assembly. Note the location and order for assembly.
