Selector Lever Bezel: Installation

All vehicles

1. 1.

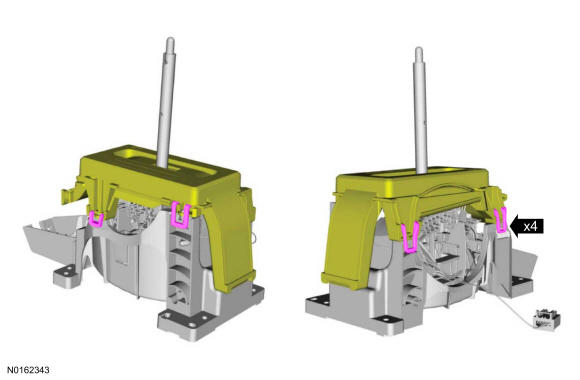

   Position the selector lever bezel on the selector lever assembly.

Courtesy of FORD MOTOR COMPANY

Navigator

1. 2.

   Attach and connect the LED electrical connector.

Courtesy of FORD MOTOR COMPANY

Expedition

1. 3.

   Connect the lamp connectors to the bezel.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 4.

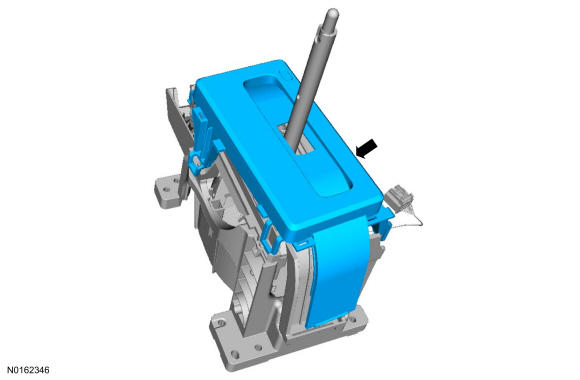

   Install the selector lever bezel onto the selector lever housing.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the selector lever knob. Refer to Selector Lever Knob .
