Transfer Case Shift Motor: Notes
Material
| Item | Specification |
| Ultra Silicone Sealant TA-29 | - |

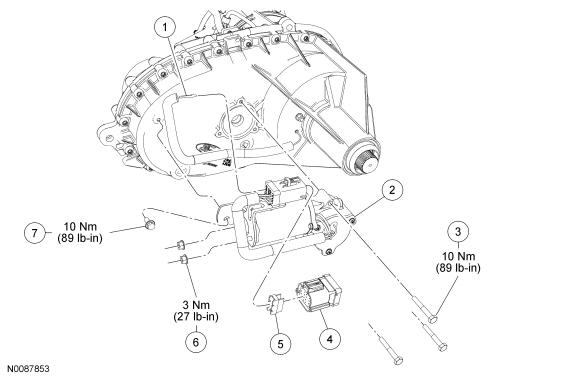

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Coil wire (part of 7G361) |
| 2 | 7G360 | Transfer case shift motor |
| 3 | N800670-S-S | Transfer case shift motor bolt (3 required) |
| 4 | 15525 | Connector |
| 5 | - | Connector inner retainer (part of 15525) |
| 6 | - | Transfer case shift motor nut (part of 7G360) (2 required) |
| 7 | 7A443 | Transfer case shift motor bolt |
