Anti-Lock Brake System (ABS) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the HCU. Refer to: Hydraulic Control Unit (HCU) .
- 2.NOTE: Make sure the HCU and ABS module are clean and free of brake fluid or foreign material before separating the components. Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or component damage can occur.

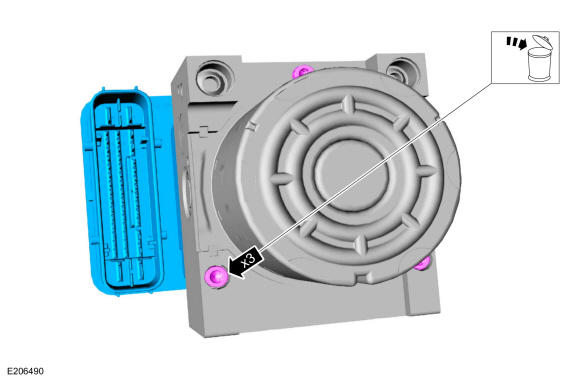

Remove the bolts and the ABS module.
Torque: 49 lb.in (5.5 Nm)
