Transmission Control Switch (TCS): Removal

  1. 1.

    Remove the LH cowl side trim panel.

    Use the General Equipment: Interior Trim Remover

GFD124528Courtesy of FORD MOTOR COMPANY

  1. 2.

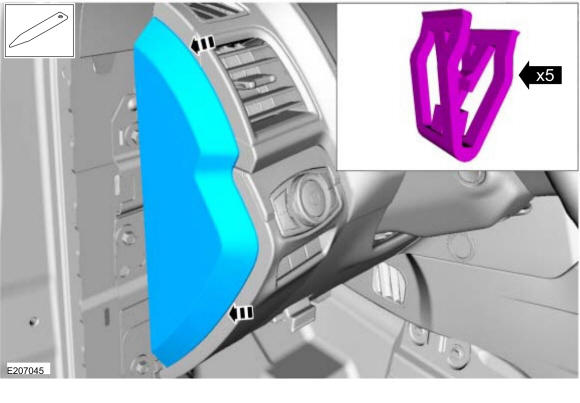

    Remove the LH instrument panel trim panel.

    Use the General Equipment: Interior Trim Remover

GFD124529Courtesy of FORD MOTOR COMPANY

  1. 3.

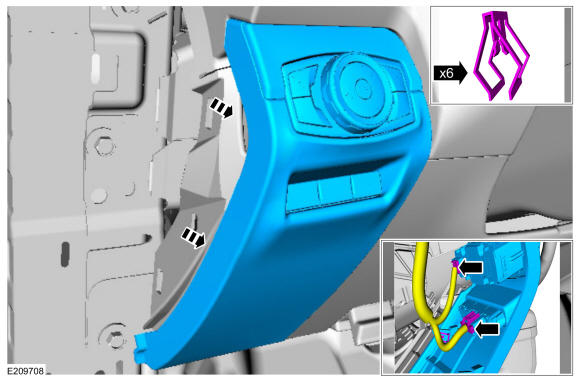

    Remove the LH instrument panel trim panel and disconnect the electrical connectors.
GFD124530Courtesy of FORD MOTOR COMPANY

  1. 4.

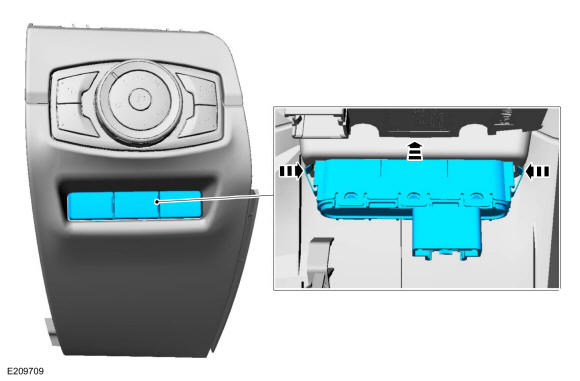

    Press the spring clips in and remove the TCS.
GFD124531Courtesy of FORD MOTOR COMPANY
