Transfer Case Control Module (TCCM): Removal

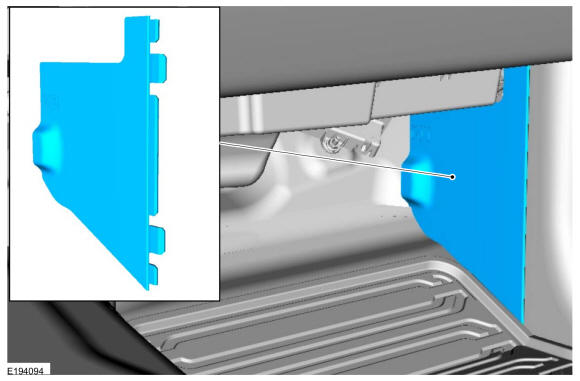

  1. Remove the CJB cover.
    GFD177898Courtesy of FORD MOTOR COMPANY

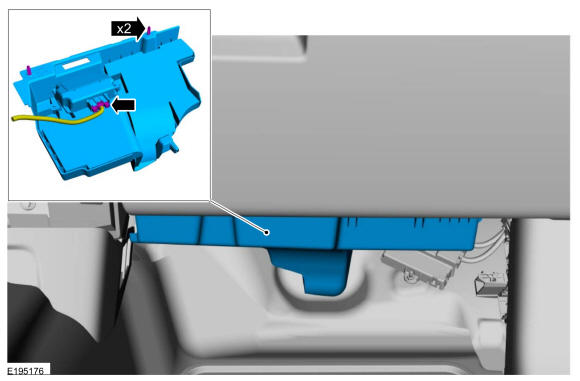

  2. Remove and disconnect the lower access panel.
    GFD177899Courtesy of FORD MOTOR COMPANY

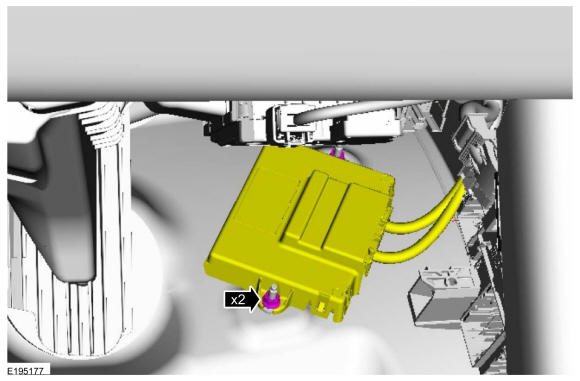

  3. NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM nut when removing the TCCM.

    Loosen the LH TCCM nut and remove the RH TCCM nut.

    Torque: 62 lb.in (7 Nm)

    GFD177900Courtesy of FORD MOTOR COMPANY

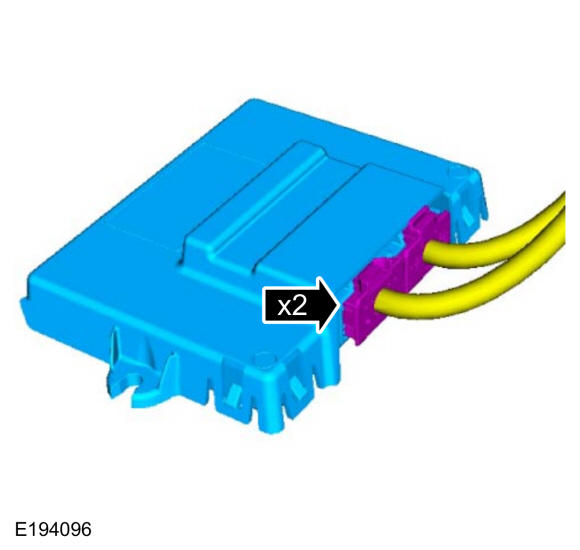

  4. Disconnect the electrical connectors and remove the TCCM.
GFD177901Courtesy of FORD MOTOR COMPANY
