Front Strut and Spring Assembly: Assembly

1.

NOTE: During assembly, apply the specified silicone brake grease to the strut rod and the top and sides of the outermost part of the dust boot.

To assemble, reverse the disassembly procedure.

Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

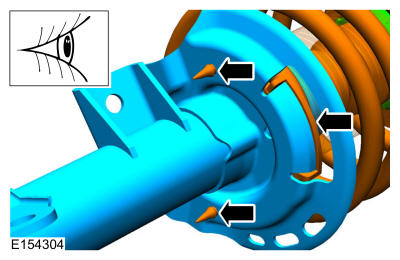

GFD138229

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Use an Allen key to prevent the piston rod from rotating.

Only tighten the nut finger tight at this stage. Use the General Equipment: Spring Compressor Use the General Equipment: Vise

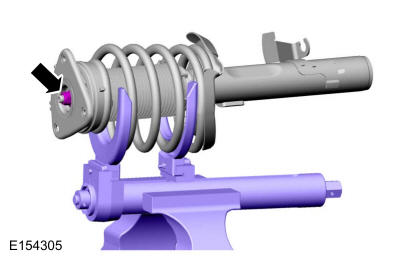

GFD138230

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Make sure that the spring is correctly located in the lower spring seat.

NOTE: Make sure that the installation marks are aligned.

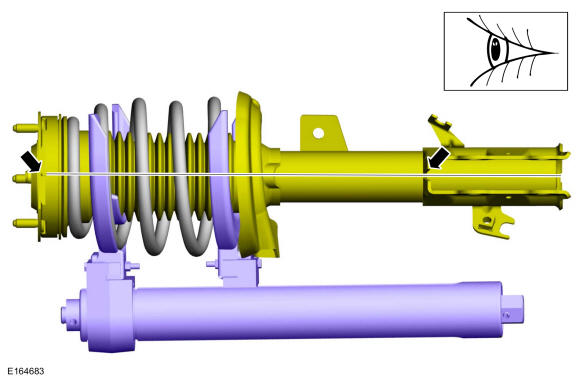

GFD138231

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Use an Allen key to prevent the piston rod from rotating.

Use the General Equipment: Spring Compressor Use the General Equipment: Vise

Torque: 35 lb.ft (48 Nm)

GFD138230

Courtesy of FORD MOTOR COMPANY

6.

Refer to: Front Strut and Spring Assembly .
