Front Seat Backrest: Installation

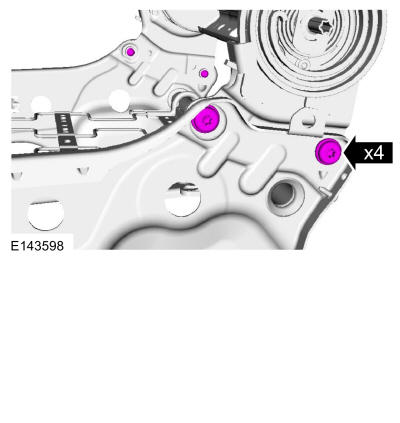

- 2.
- 1.

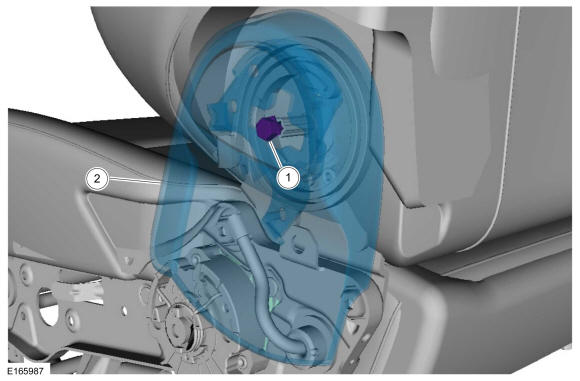

Install the recline handle.
- 2.
Tighten the bolt.
- 3.
Push the recline handle fully toward the inboard side of the seat, then release the pressure on the recline handle.
- 1.
- 3.

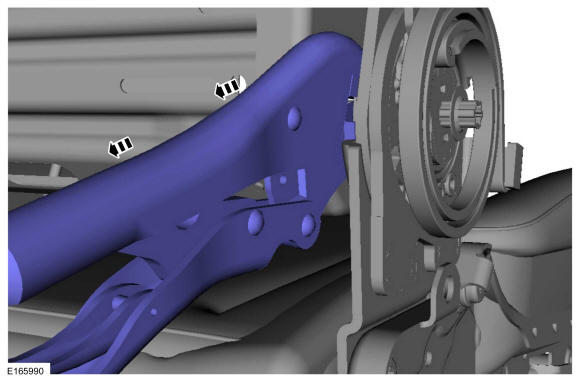

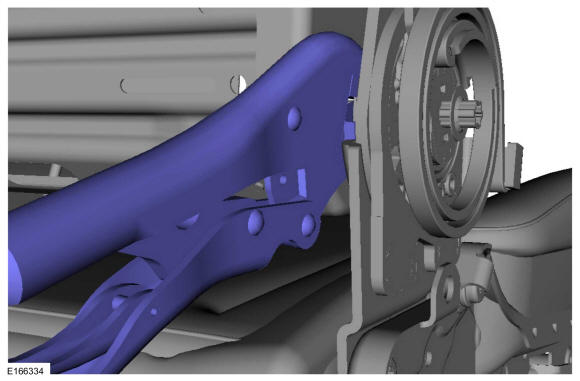

On both sides, immobilize the recline shaft using the locking pliers clamped to the shaft and flush up against the side of the recliner.Use the General Equipment: Locking Pliers
- 4.

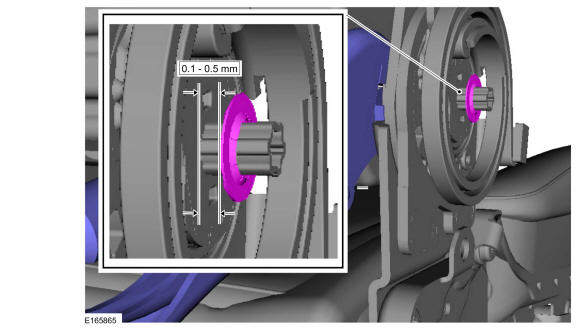

If the clearance between the inboard push nut and the bushing exceeds 0.5 mm (0.019 in), install a 0.5 mm (0.019 in) feeler gauge or shim between the inboard push nut and the bushing and slide the inboard push nut tight against the feeler gauge or shim.Use the General Equipment: Feeler Gauge
- 5.
- 1.
Remove the bolt.
- 2.
Remove the recline handle.
- Push the outboard push nut (located behind recline handle) flush to the outboard bushing.
- 1.
- 7.

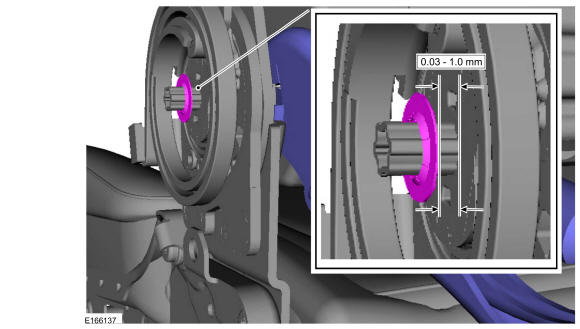

Verify the clearance between the outboard push nut and bushing is between 0.3 mm and 1.0 mm (0.011 in and 0.039 in).Use the General Equipment: Feeler Gauge
- 8.
- 1.

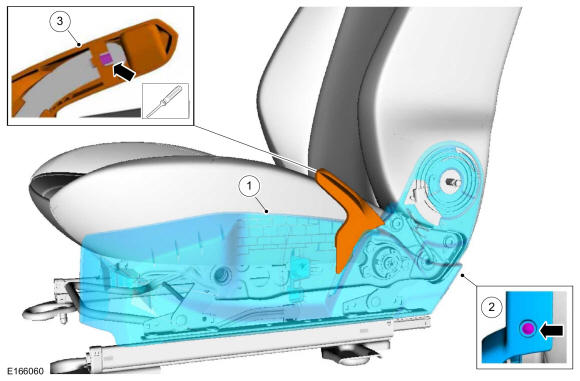

Install the side shield.
- 2.
Install the screw.Torque: 27 lb.in (3.0 Nm)
- 3.
If equipped.Install the height adjustment handle.
- 1.
- 9.
- 1.

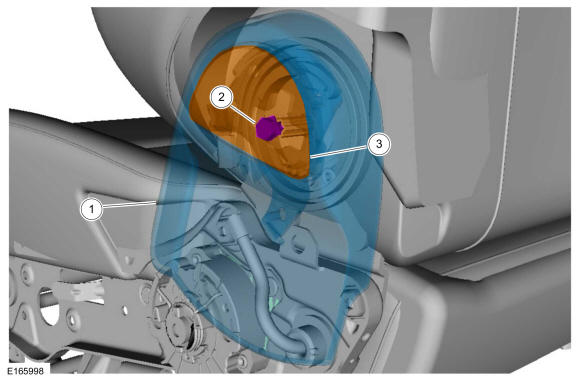

Install the recline handle.
- 2.
Tighten the bolt.Torque: 35 lb.in (4.0 Nm)
- 3.
Install the bolt cover.
- 1.
- 10.
- 1.

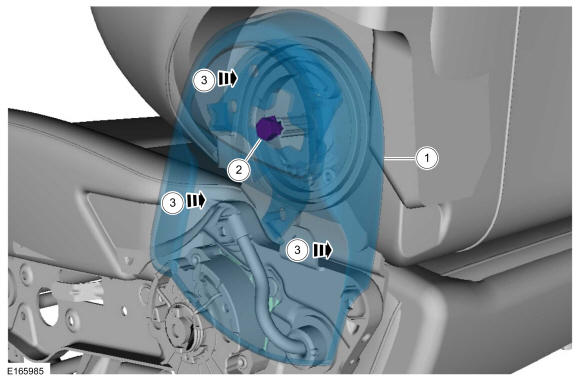

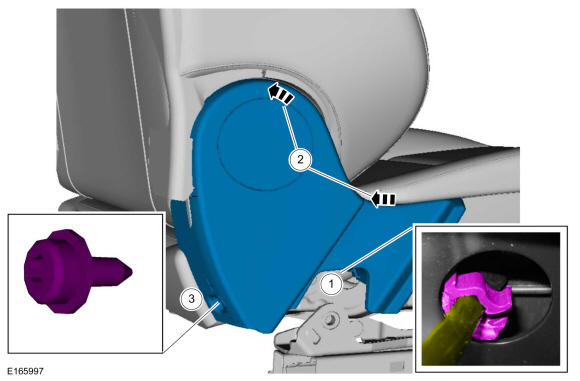

Attach the electrical harness to the recliner cover clip.
- 2.
Install the recliner cover.
- 3.
Tighten the screw.Torque: 27 lb.in (3.0 Nm)
- 1.
- 11.
Install the front seat. Refer to: Front Seat .
