Rear Wheel Speed Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

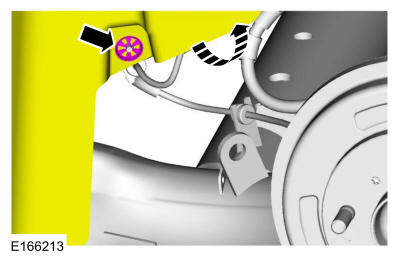

Remove the retainer and pull the rear splash shield outward.
Courtesy of FORD MOTOR COMPANY
|
- 2.

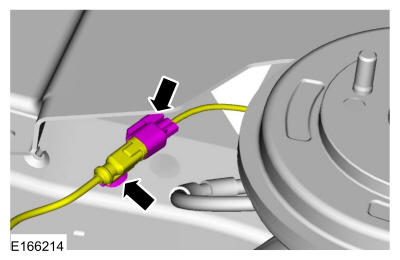

Disconnect the electrical connector and detach the wiring retainer.
Courtesy of FORD MOTOR COMPANY
|
- 3.
NOTE:
Note the position of the component before removal.

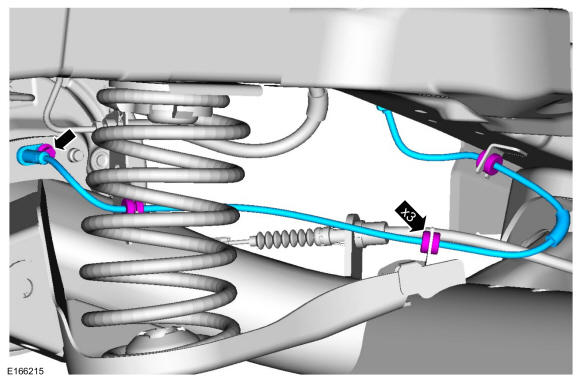

Detach the wiring retainers, remove the bolt and the rear wheel speed sensor.
Torque: 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
|
