Seat - Exploded View, Third Row

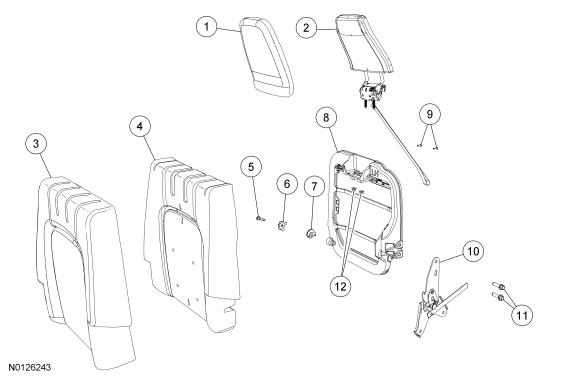

Backrest, Manual
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 501A04 | Head restraint cover |
| 2 | 611A09 | Head restraint assembly |
| 3 | 66601 | Backrest cover |
| 4 | 66801 | Backrest foam pad |
| 5 | W714465 | Pivot bolt |
| 6 | - | Felt tape |
| 7 | 613B44 | Bushing |
| 8 | 613A39 | Backrest frame |
| 9 | W505575 | Head restraint bolts |
| 10 | 613D61 | Backrest latch, manual |
| 11 | W716033 | Backrest latch-to-backrest frame bolts (2 required) |
| 12 | W520112 | Head restraint-to-backrest frame nuts |

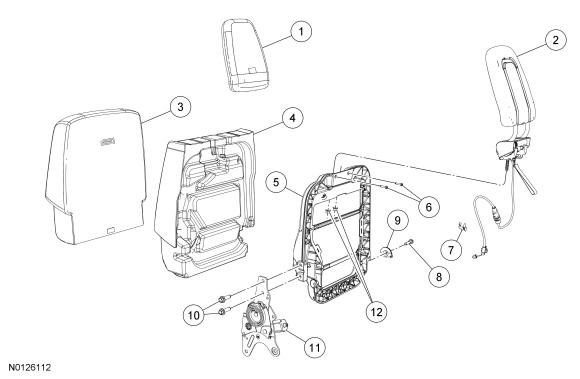

Backrest, Power
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 501A04 | Head restraint cover |
| 2 | 611A08 | Head restraint assembly |
| 3 | 66601 | Backrest cover |
| 4 | 66801 | Backrest foam pad |
| 5 | 613A39 | Backrest frame |
| 6 | W505575 | Head restraint bolts |
| 7 | W715018 | Cable retainer |
| 8 | W714465 | Pivot bolt |
| 9 | 613B44 | Bushing |
| 10 | W716033 | Backrest latch-to-backrest frame bolts (2 required) |
| 11 | 613D61 | Backrest latch, power |
| 12 | W520112 | Head restraint-to-backrest frame nuts |

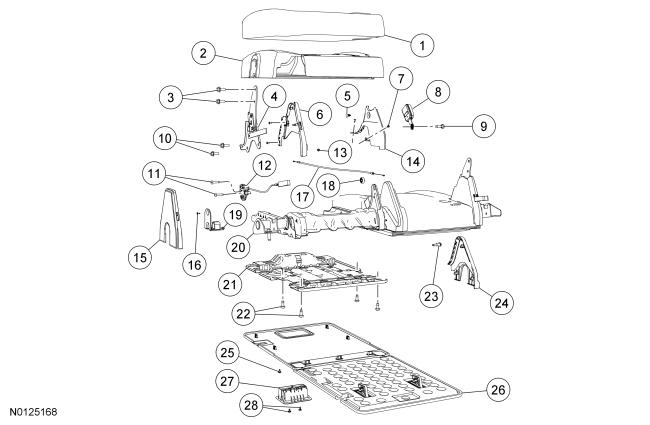

Cushion, Manual
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63804 RH 63805 LH |
Cushion trim cover |
| 2 | 63840 RH 63841 LH |
Cushion foam pad |
| 3 | W716033 | Backrest latch-to-backrest frame bolts (2 required) |
| 4 | 613D60 RH 613D61 LH |
Backrest latch |
| 5 | W705589 | Pin-type retainer |
| 6 | 67460 | Backrest latch inboard cover |
| 7 | 56910 | Screw (2 required) |
| 8 | 613D48 | Safety belt buckle |
| 9 | - | Safety belt buckle bolt (part of 613D48) |
| 10 | W716033 | Backrest latch-to-cushion frame bolts (2 required) |
| 11 | W711849 | Floor latch bolts (2 required) |
| 12 | 61143 LH/ 61142 RH |
Floor latch assembly |
| 13 | 56910 | Screw (3 required) |
| 14 | 61349 LH 61348 RH |
Inboard pivot cover |
| 15 | 67460 | Backrest latch outboard cover |
| 16 | W504694 | Screw |
| 17 | 601L60 | Pivot release cable |
| 18 | 613B44 | Bushing |
| 19 | 638A75 LH 638A74 RH |
Floor latch cover |
| 20 | 613B90 | Pivot tube assembly |
| 21 | 63160 | Cushion frame |
| 22 | W716033 | Cushion frame-to-pivot tube assembly bolts (4 required) |
| 23 | W714465 | Pivot bolt |
| 24 | 61349 LH 61348 RH |
Outboard pivot cover |
| 25 | 56910 | Screw (2 required) |
| 26 | 60513 LH 60512 RH |
Load floor panel |
| 27 | 62432 | Pivot release handle |
| 28 | 56910 | Screws (2 required) |

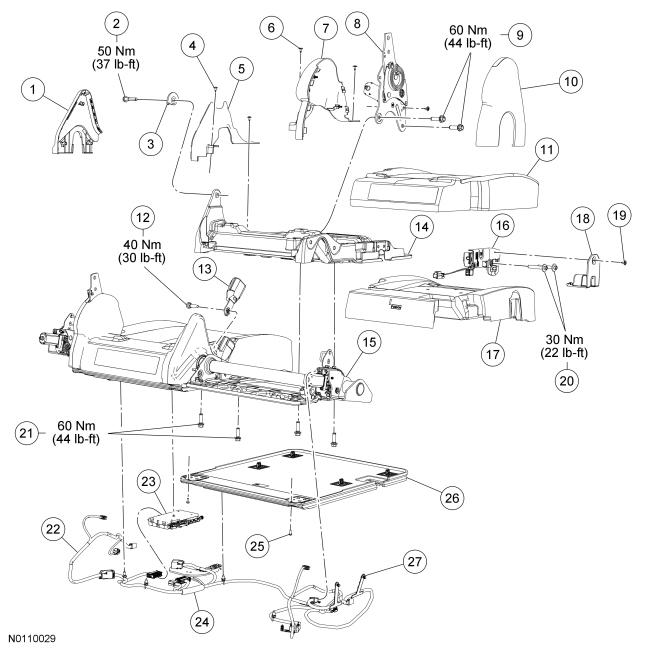

Cushion, Power
NOTE:
RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 61348 Outboard pivot cover |
|
| 2 | W714465 | Pivot bolt |
| 3 | 613B44 | Bushing |
| 4 | 56910 | Screw (2 required) |
| 5 | 61348 | Inboard pivot cover |
| 6 | 56910 | Screw (3 required) |
| 7 | 67460 | Backrest latch inboard cover |
| 8 | 613D60 | Backrest latch, power |
| 9 | W716033 | Backrest latch-to-cushion frame bolts (2 required) |
| 10 | 67460 | Backrest latch outboard cover |
| 11 | 63804 | Cushion cover |
| 12 | W707957 | Safety belt buckle bolt (part of 613D48) |
| 13 | 613D48 | Safety belt buckle |
| 14 | 63160 | Cushion frame |
| 15 | 613B90 | Pivot tube assembly, power |
| 16 | 61142 | Floor latch assembly, power |
| 17 | 63841 | Cushion foam pad |
| 18 | 638A74 | Floor latch cover |
| 19 | 56910 | Screw |
| 20 | W711849 | Floor latch bolts (2 required) |
| 21 | W716033 | Cushion frame-to-pivot tube assembly bolts (4 required) |
| 22 | 14B720 | LH seat wire harness |
| 23 | 14F042 | Power-Fold Seat Module (PFSM) |
| 24 | 14B719 | Seat wire harness |
| 25 | W504694 | Screw (2 required) |
| 26 | 60512 | Load floor panel |
| 27 | 14B720 | RH seat wire harness |
