Component Locations
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Handle the fuel injectors and fuel rail with extreme care to prevent damage to the fuel inlet of the fuel rail, fuel injector sealing areas, and sensitive fuel-metering orifices.

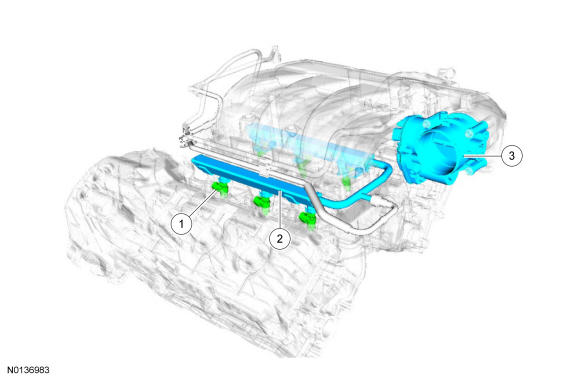

3.5L Ti-VCT
| Item | Description | Comments |
|---|---|---|
| 1 | Fuel injector | - |
| 2 | Fuel rail | - |
| 3 | TB | - |

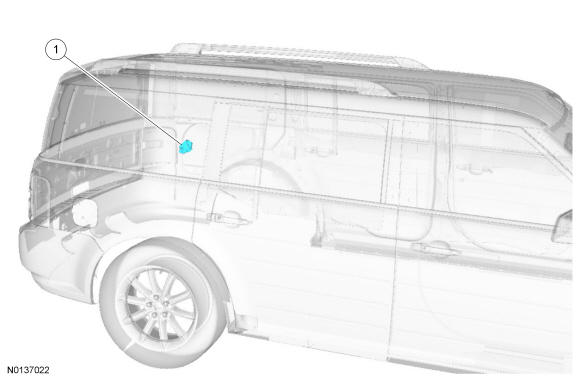

FPCM
| Item | Description | Comments |
|---|---|---|
| 1 | FPCM | - |
