Selector Lever Cable Adjustment

  1. 1.

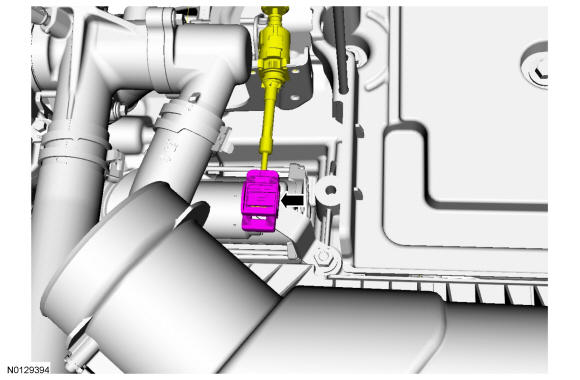

    GFD58276Courtesy of FORD MOTOR COMPANY

  1. 2.

    Place the selector lever in DRIVE.

  1. 3.

    1. 1.

      Rotate the manual control lever clockwise until it stops.

    1. 2.

      Rotate the manual control lever counterclockwise one detent.

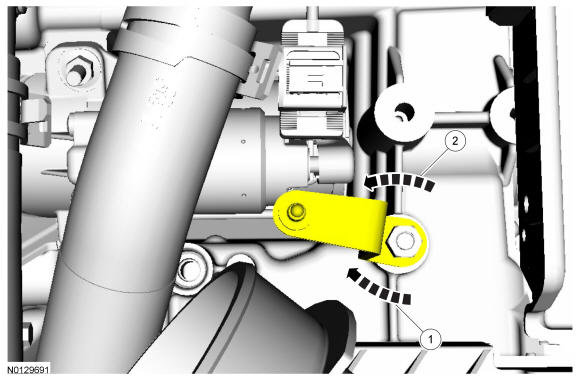

GFD58277Courtesy of FORD MOTOR COMPANY

  1. 4.

    1. 1.

      Gently pry the latch up.

    1. 2.

      Push the lock tab to slide it over.

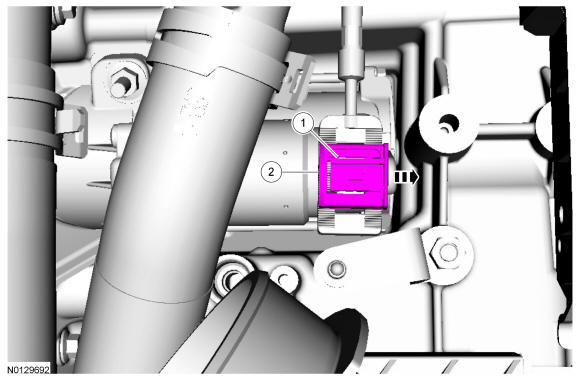

      GFD58278Courtesy of FORD MOTOR COMPANY

  1. 5.

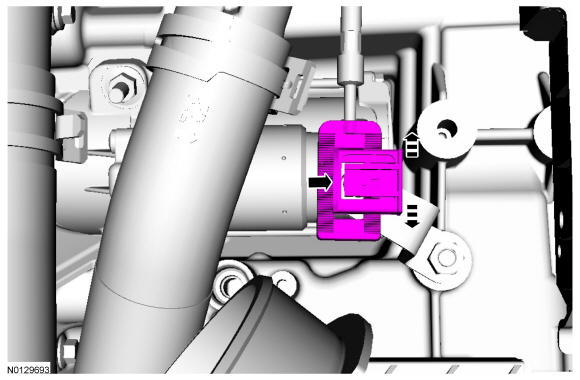

    GFD58279Courtesy of FORD MOTOR COMPANY

  1. 6.

    NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.
    NOTE: Make sure that the selector lever cable end is correctly installed onto the manual control lever ball stud by pulling back on the selector lever cable end.

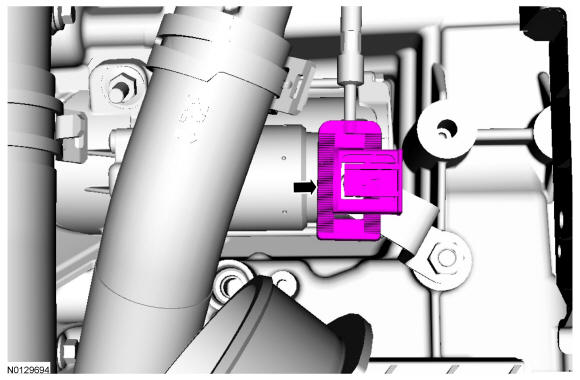

GFD58280Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: After locking the adjuster, pull back on the adjuster to make sure it is securely installed.

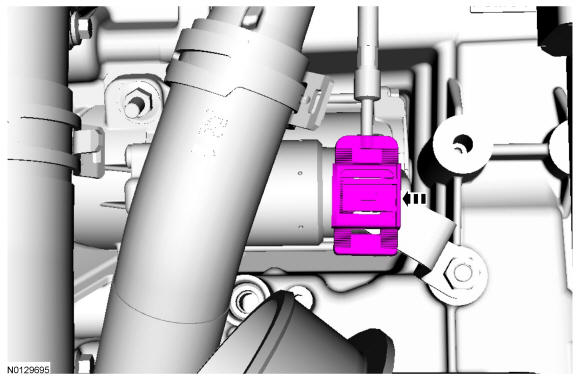

GFD58281Courtesy of FORD MOTOR COMPANY

  1. 8.

    Verify that the vehicle starts in PARK and NEUTRAL only and that the reverse lamps illuminate in REVERSE.
