Engine Mechanical: Mechanical: Engine: Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

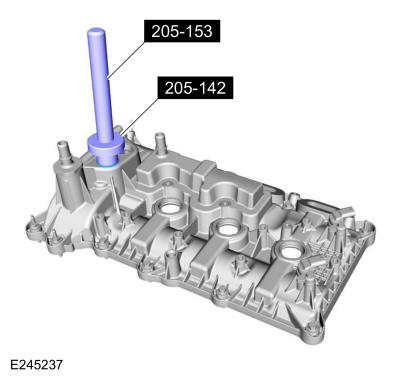

Courtesy of FORD MOTOR COMPANY	205-142 (T80T-4000-J) Installer, Differential Bearing Cone
Courtesy of FORD MOTOR COMPANY	205-150 (T80T-4000-S) Installer, Spindle Bearing
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1655 Tool, Camshaft Holding
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Knife
Puller

Materials

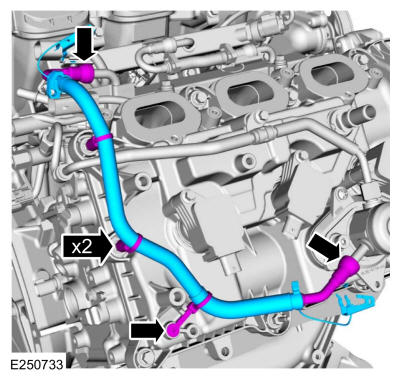

1. • Loosen the coolant hose fitting.

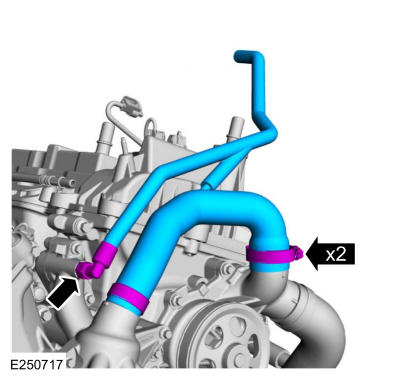

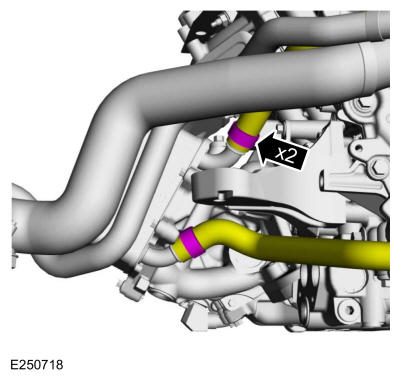

   • Release the clamps and remove the coolant hoses.

   Courtesy of FORD MOTOR COMPANY

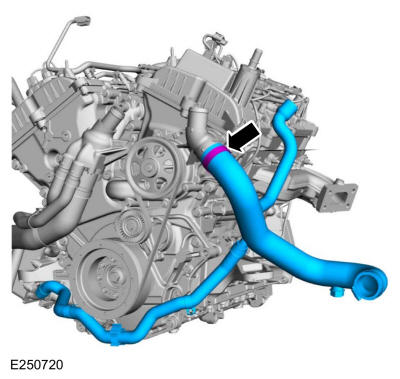

2. Release the clamps and disconnect the coolant hoses.

   Courtesy of FORD MOTOR COMPANY

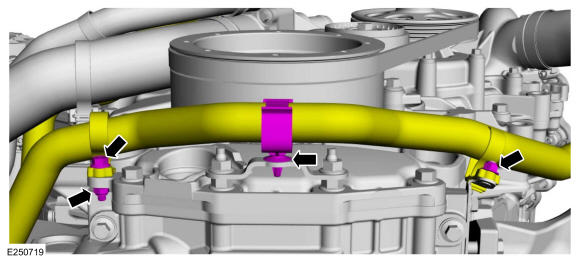

3. • Remove the coolant hose retainer nut and bolt.
   • Release the coolant hose retainer.
   • Remove the coolant hose retainer nut.

   Courtesy of FORD MOTOR COMPANY

4. Release the clamp and remove the coolant hoses.

   Courtesy of FORD MOTOR COMPANY

5. Remove the nut and position the coolant hoses and retainer aside.

   Courtesy of FORD MOTOR COMPANY

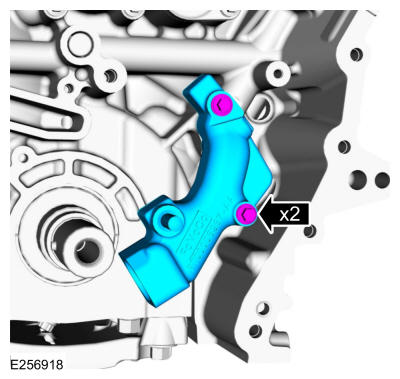

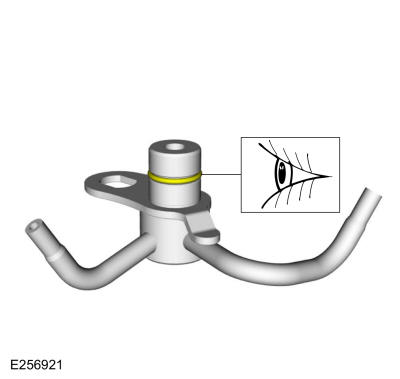

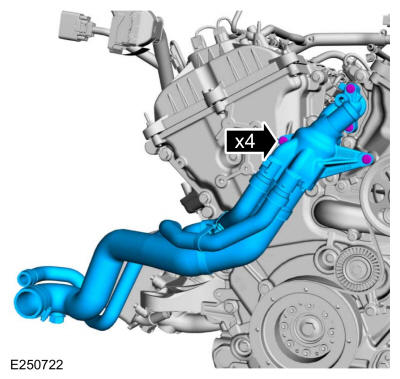

6. Remove the bolts and the thermostat housing and hoses.

   Courtesy of FORD MOTOR COMPANY

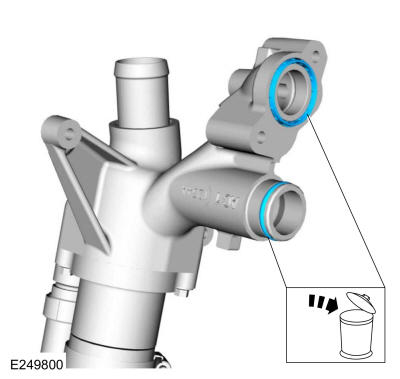

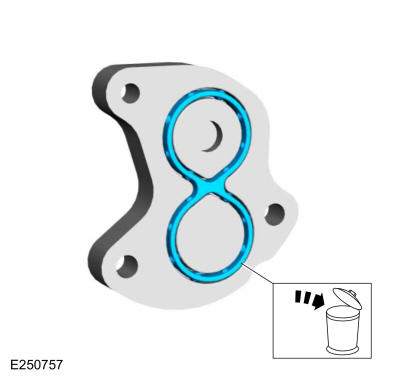

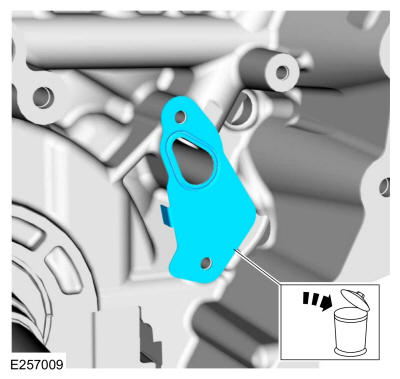

7. Remove and discard the thermostat housing O-ring seal and gasket.

   Courtesy of FORD MOTOR COMPANY

8. Disconnect the EOP sensor wiring harness electrical connector and retainer.

   Courtesy of FORD MOTOR COMPANY

9. • Remove the wiring harness retainer bolt.

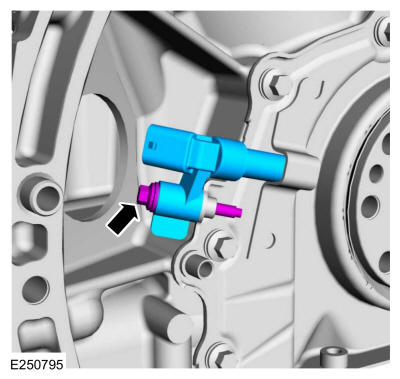

   • Remove the CKP sensor cover.
   • Disconnect the CKP sensor wiring harness electrical connector.
   • Detach the wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

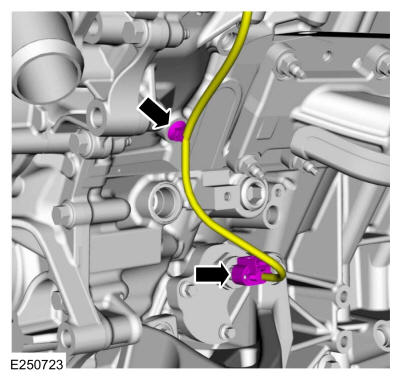

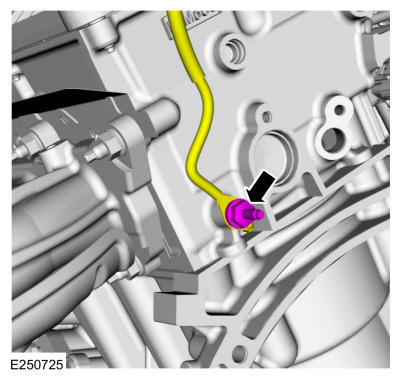

10. Remove the ground wire stud bolt.

    Courtesy of FORD MOTOR COMPANY

11. • Disconnect the ignition coil-on-plug electrical connectors.
    • Disconnect the CMP sensor electrical connectors.
    • Disconnect the VCT unit electrical connectors.
    • Detach the wiring harness retainers and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

12. Remove the retainers and the heat shield.

    Courtesy of FORD MOTOR COMPANY

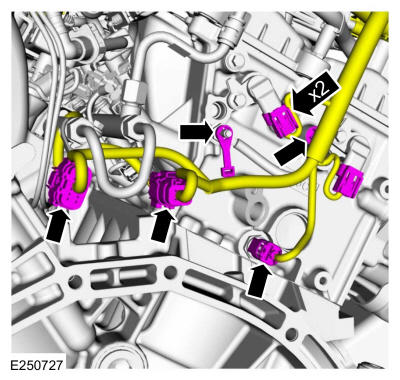

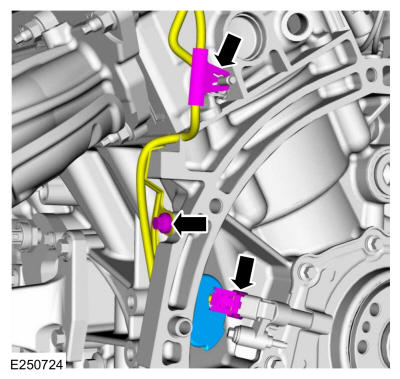

13. • Disconnect the direct injector fuel rail harness electrical connectors.
    • Disconnect the CMP sensor electrical connectors.
    • Disconnect the CHT sensor electrical connectors.
    • Detach the wiring harness retainers and position the wiring harness aside.

    Courtesy of FORD MOTOR COMPANY

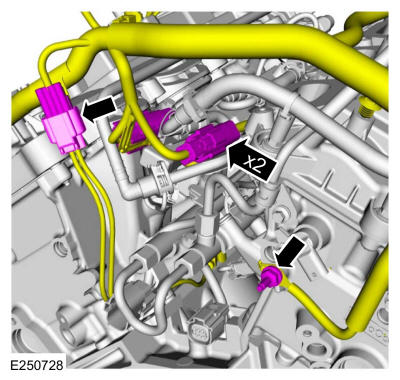

14. • Disconnect the KS sensor electrical connector.
    • Disconnect the port injector fuel rail harness electrical connectors.
    • Remove the ground wire stud bolt.

    Courtesy of FORD MOTOR COMPANY

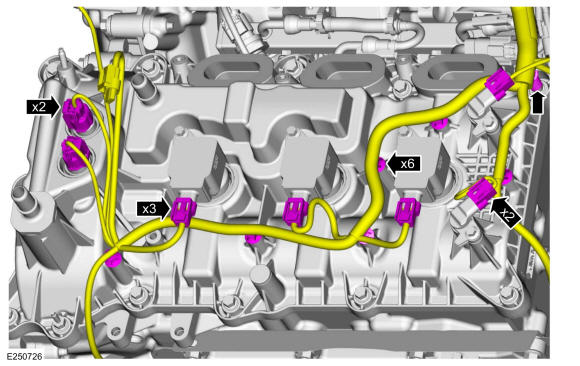

15. • Disconnect the ignition coil-on-plug electrical connectors.
    • Disconnect the VCT unit electrical connectors.
    • Disconnect the high pressure fuel pump electrical connector.

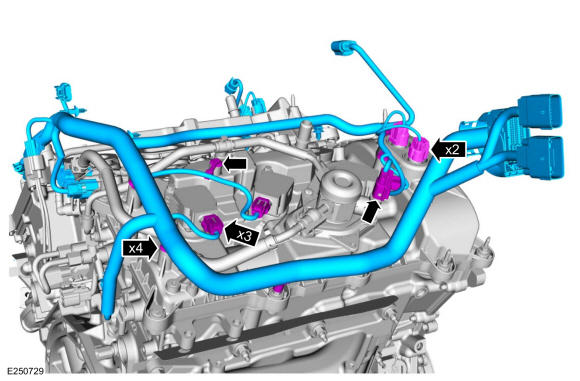

    • Detach the wiring harness retainers and remove the engine wiring harness.

    Courtesy of FORD MOTOR COMPANY

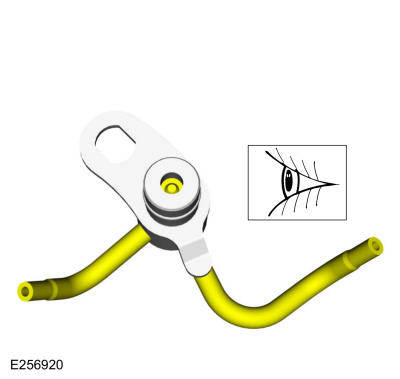

16. Disconnect the quick release coupling and remove the fuel inlet tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

17. Disconnect the secondary latches and position aside.

    Courtesy of FORD MOTOR COMPANY

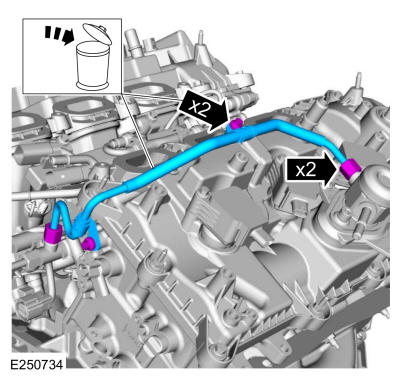

18. • Detach the high-pressure fuel pump supply line retainers.

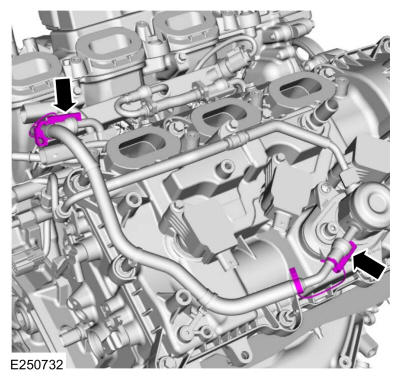

    • Disconnect the spring lock couplings and remove the high-pressure fuel pump supply line. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

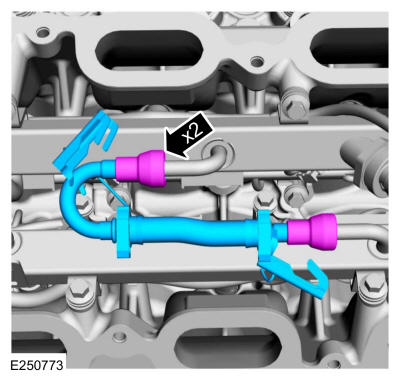

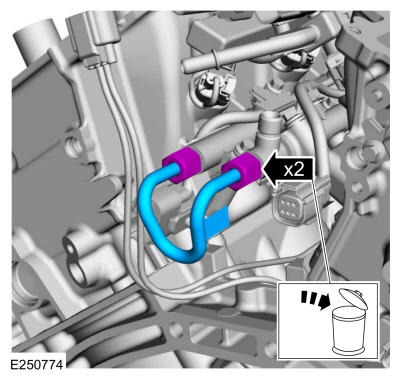

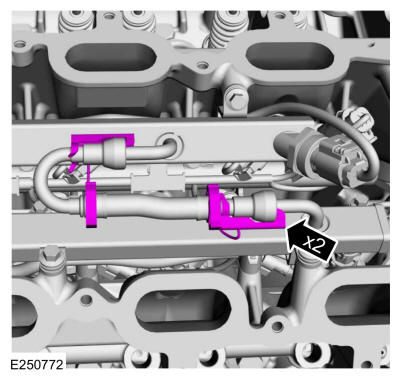

19. • Remove and discard the high-pressure fuel pump to fuel rail high-pressure fuel tube retaining bolts.
    • Disconnect the high-pressure fuel pump to fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel pump to fuel rail high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Alternately loosen the high-pressure fuel pump bolts one complete revolution at a time.

    Remove the bolts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

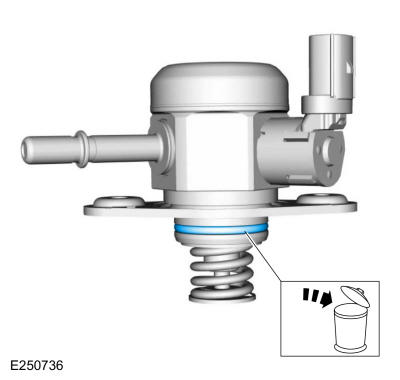

21. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

22. Remove the high-pressure fuel pump roller tappet.

    Courtesy of FORD MOTOR COMPANY

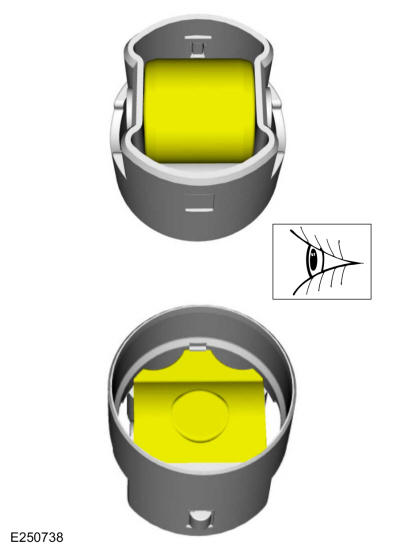

23. • Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas.
    • Inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe.
    • Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

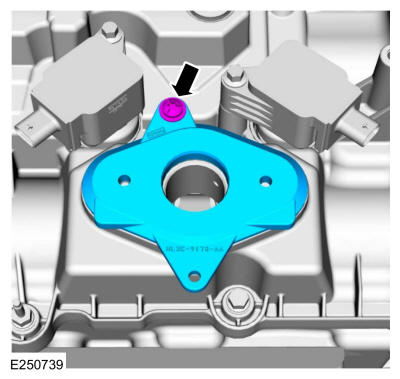

24. Loosen the bolt and remove the high-pressure fuel pump mounting plate.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

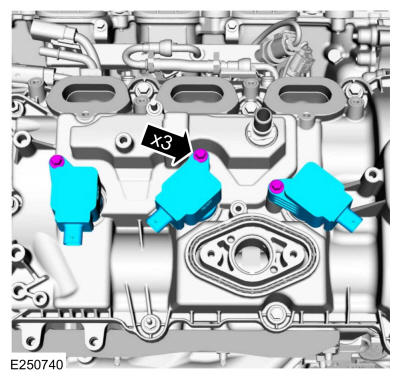

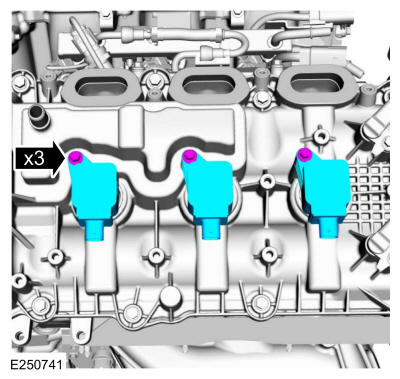

    Remove the bolts and the RH ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.
    NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the LH ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

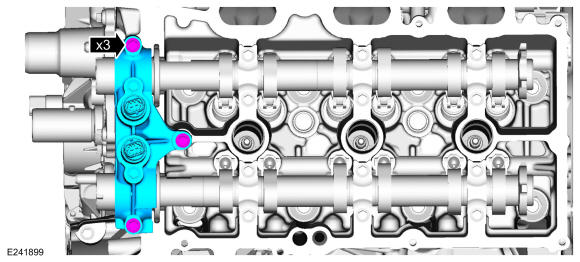

27. Loosen the stud bolts, bolts and remove the LH valve cover.

    Courtesy of FORD MOTOR COMPANY

28. Remove and discard the valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

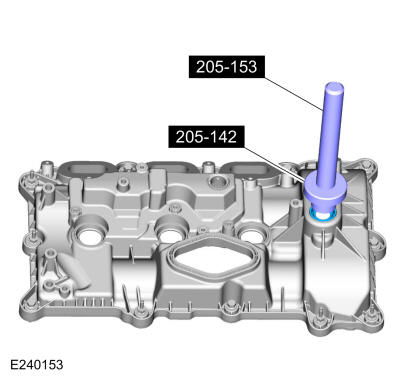

29. NOTE: Inspect the VCT oil control solenoid seals. Remove any damaged seals.

    If necessary, using the special tools, remove the VCT oil control solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

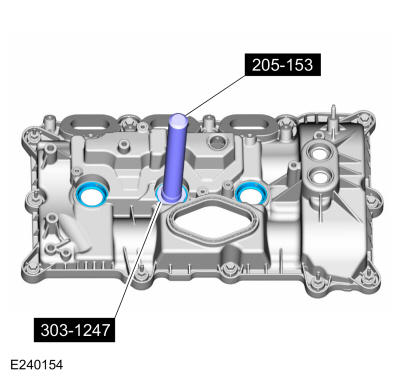

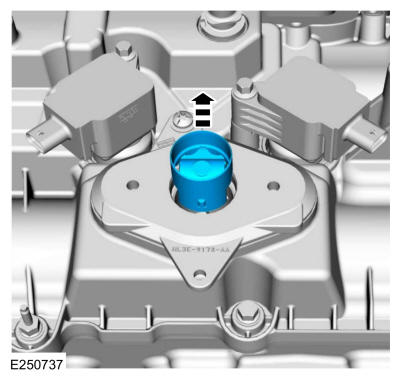

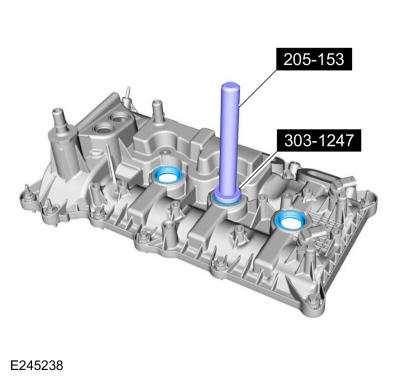

30. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    If necessary, using the special tools, remove the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

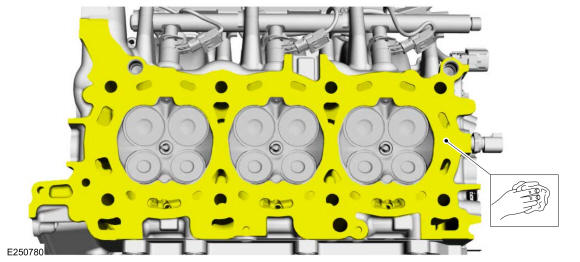

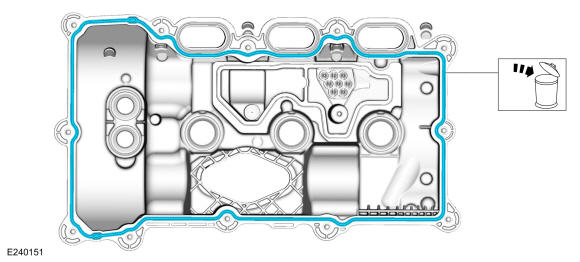

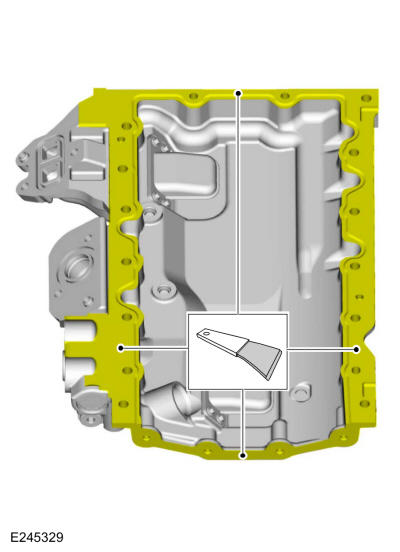

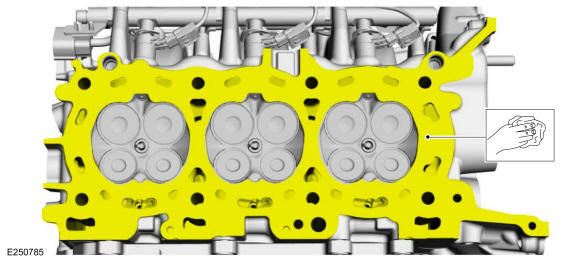

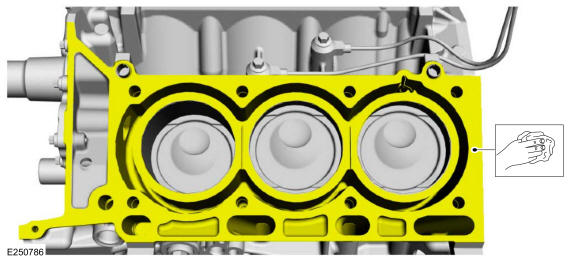

31. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

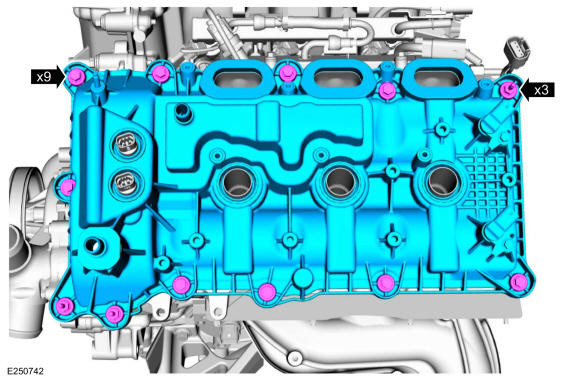

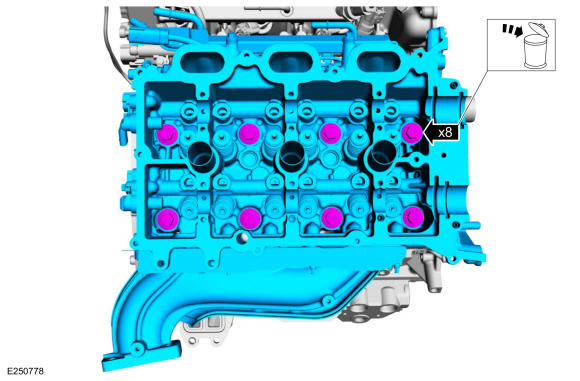

32. Loosen the stud bolts, bolts and remove the RH valve cover.

    Courtesy of FORD MOTOR COMPANY

33. Remove and discard the valve cover gasket.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

    If necessary, using the special tools, remove the VCT solenoid seals. Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

35. NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

    If necessary, using the special tools, remove the spark plug tube seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

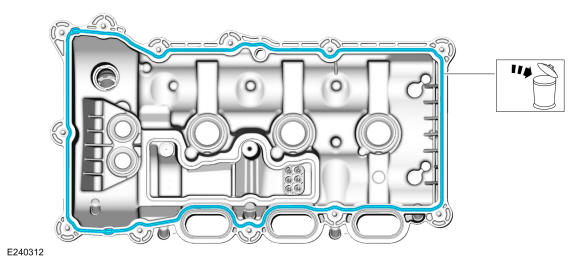

36. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

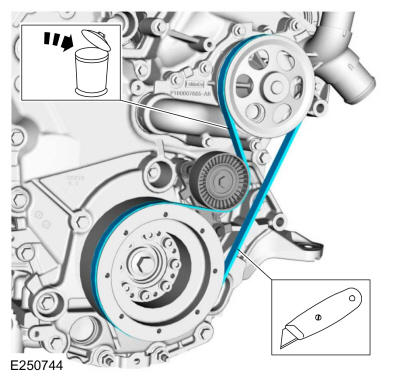

37. Cut and discard the coolant pump belt. Use the General Equipment: Knife

    Courtesy of FORD MOTOR COMPANY

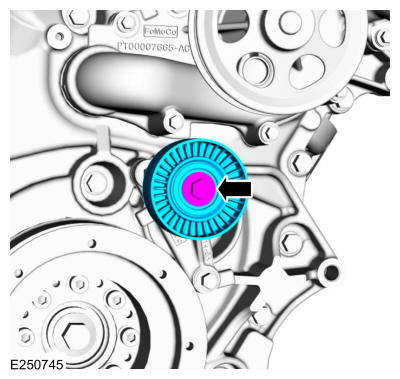

38. Remove the bolt and the coolant pump belt idler pulley.

    Courtesy of FORD MOTOR COMPANY

39. Remove the bolts and the coolant pump belt idler pulley bracket.

    Courtesy of FORD MOTOR COMPANY

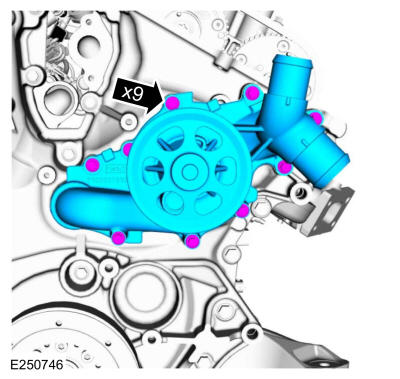

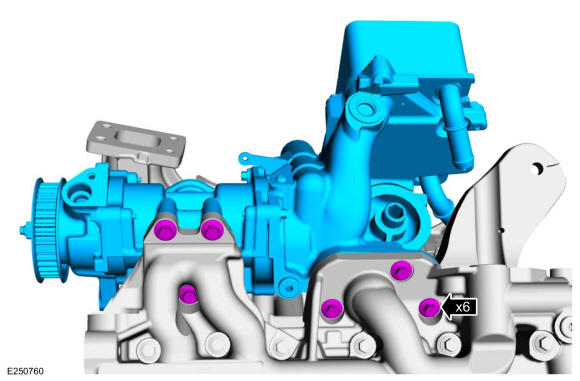

40. Remove and bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

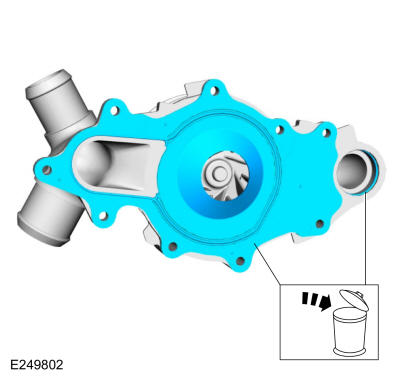

41. Remove and discard the coolant pump O-ring seal and gasket.

    Courtesy of FORD MOTOR COMPANY

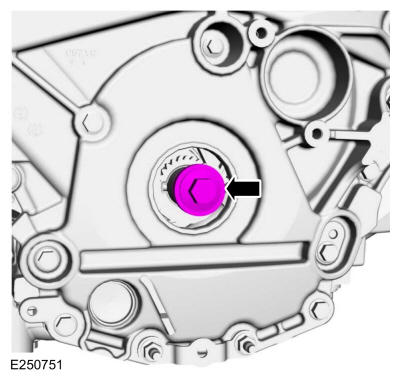

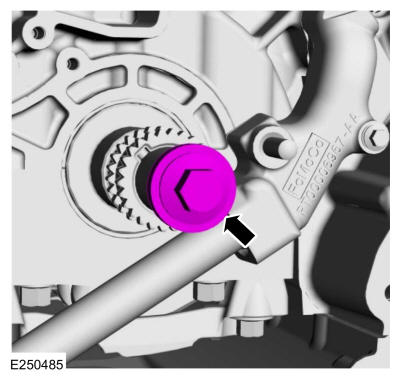

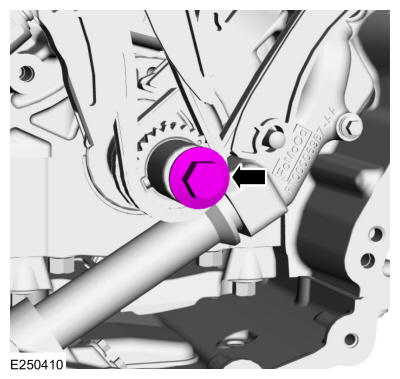

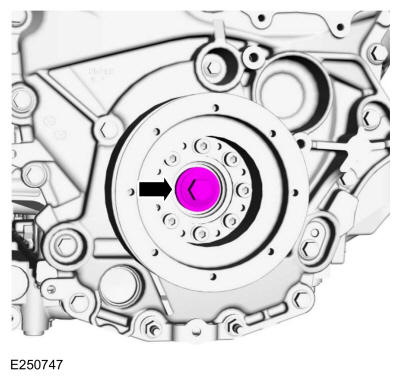

42. Remove the crankshaft bolt and washer.

    Courtesy of FORD MOTOR COMPANY

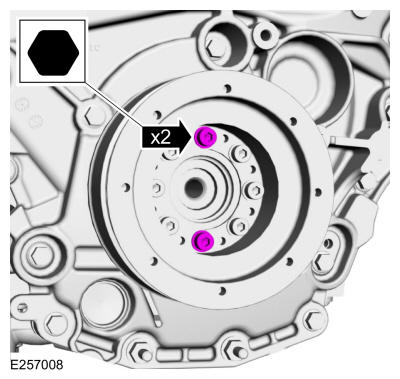

43. Remove the crankshaft pulley bolts.

    Courtesy of FORD MOTOR COMPANY

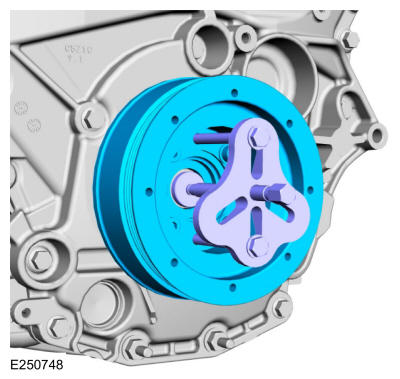

44. Using a Puller and 2 bolts, remove the crankshaft pulley. Use the General Equipment: Puller

    Courtesy of FORD MOTOR COMPANY

45. Install the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

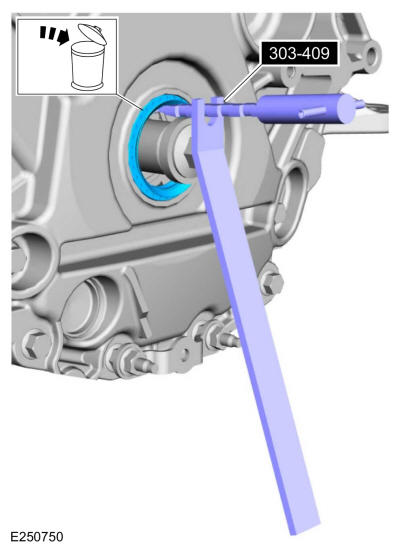

46. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    Courtesy of FORD MOTOR COMPANY

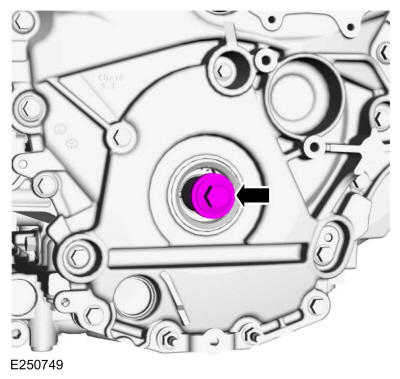

47. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

    Remove the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

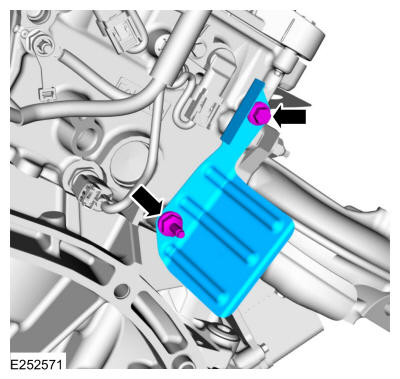

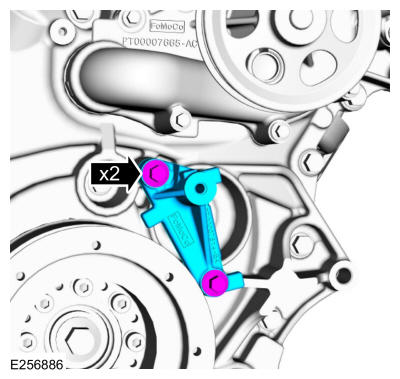

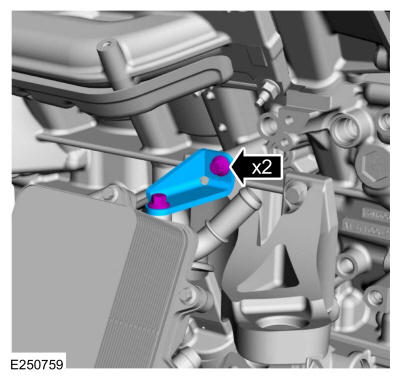

48. Remove the nuts and the coolant hose retainer bracket.

    Courtesy of FORD MOTOR COMPANY

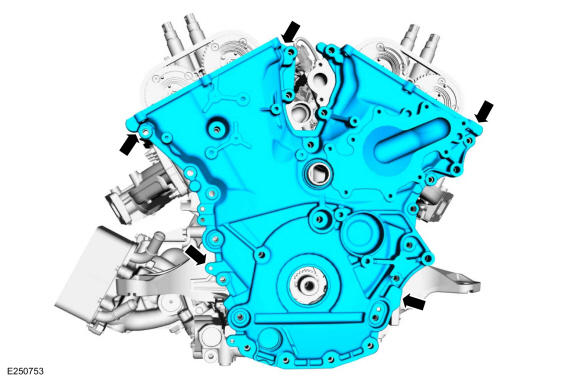

49. Remove the engine front cover bolts.

    Courtesy of FORD MOTOR COMPANY

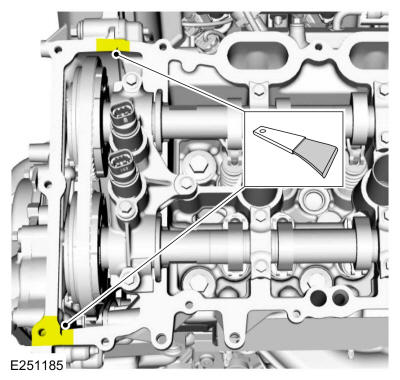

50. Using a pry tool on the pry pads shown, remove the engine front cover.

    Courtesy of FORD MOTOR COMPANY

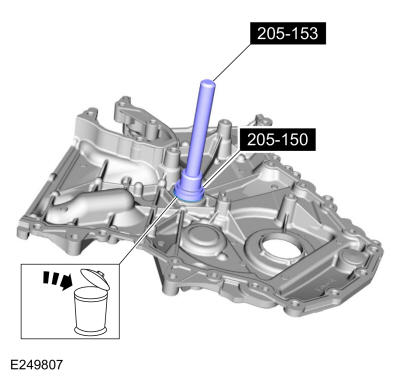

51. Using the special tools, remove and discard the engine front cover to coolant pipe seal. Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T-4000-W) Handle.

    Courtesy of FORD MOTOR COMPANY

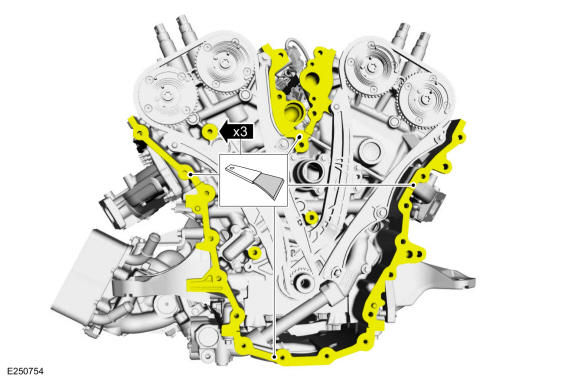

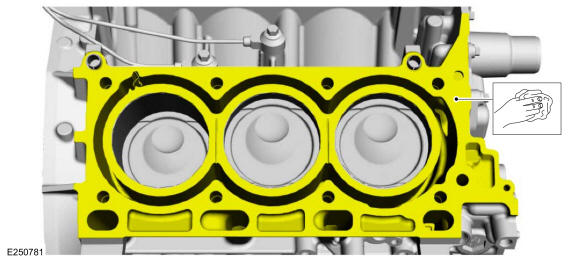

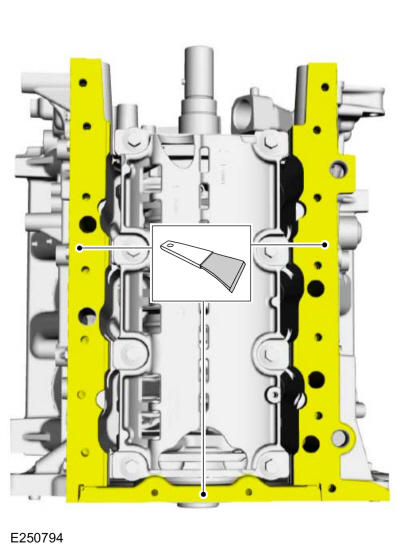

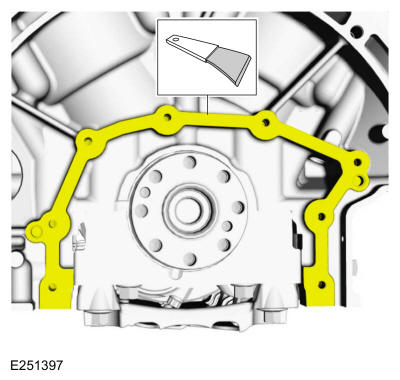

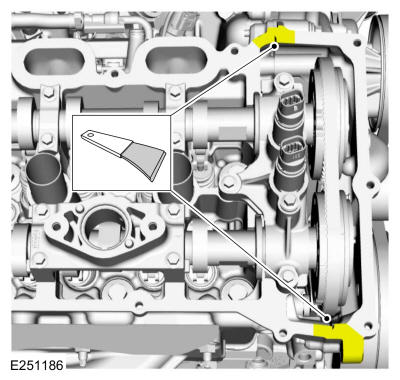

52. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

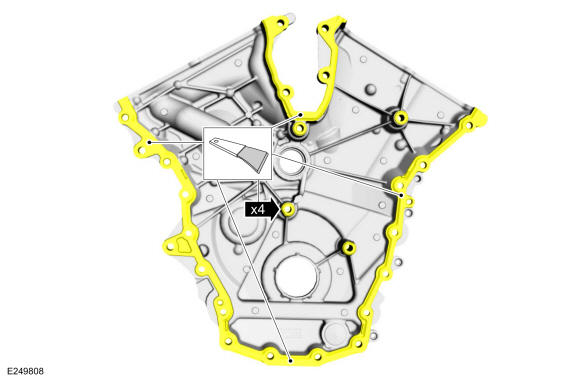

53. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

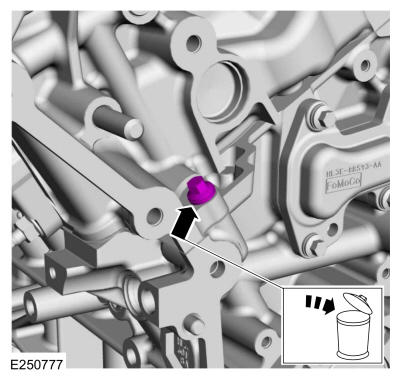

54. • Remove the bolts and the LH engine mount bracket.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

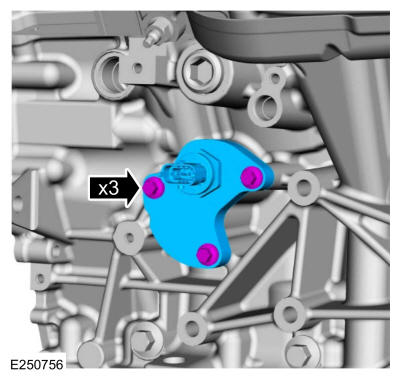

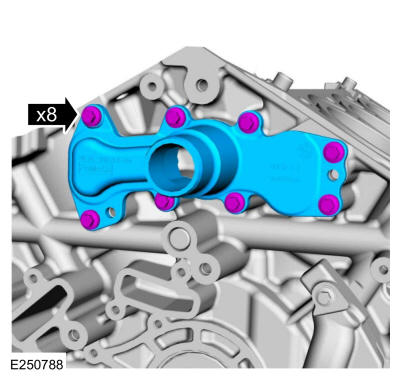

55. Remove the bolts and the EOP sensor cover plate.

    Courtesy of FORD MOTOR COMPANY

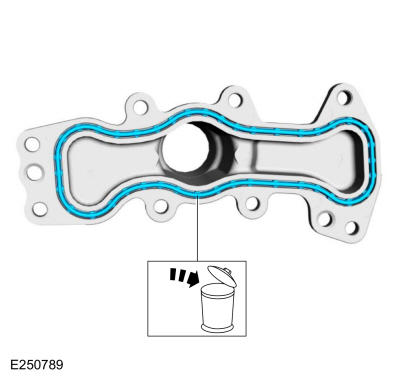

56. Remove and discard cover plate gasket.

    Courtesy of FORD MOTOR COMPANY

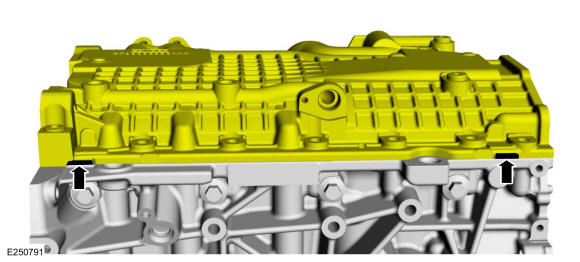

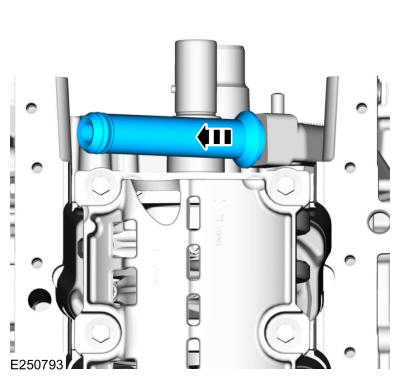

57. Remove the bolts and the oil pump tube.

    Courtesy of FORD MOTOR COMPANY

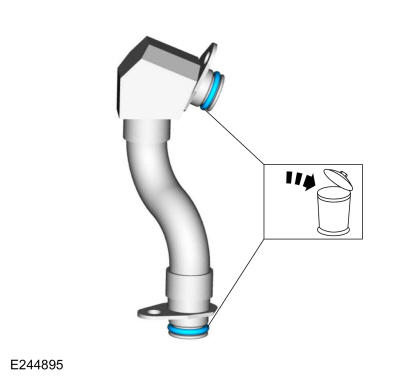

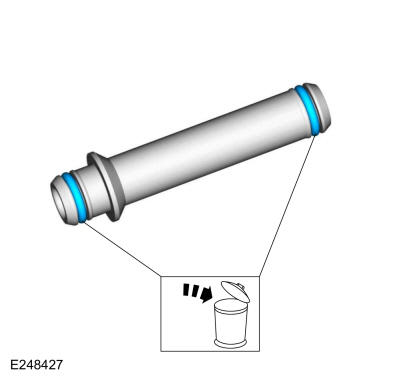

58. Remove and discard the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

59. Remove the bolts and the oil pump support bracket.

    Courtesy of FORD MOTOR COMPANY

60. Remove the bolts and the oil pump assembly.

    Courtesy of FORD MOTOR COMPANY

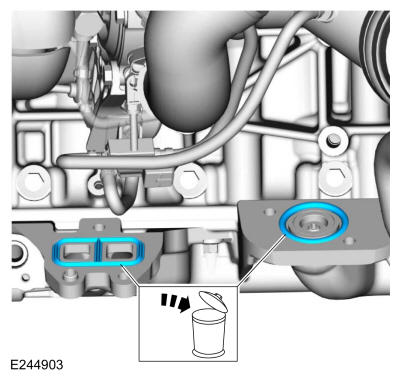

61. Remove and discard the gasket and O-ring seal.

    Courtesy of FORD MOTOR COMPANY

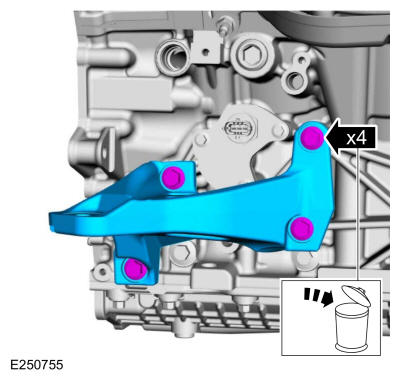

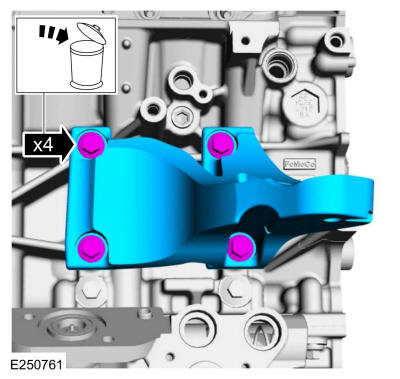

62. • Remove the bolts and the RH engine mount bracket.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

63. Install the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

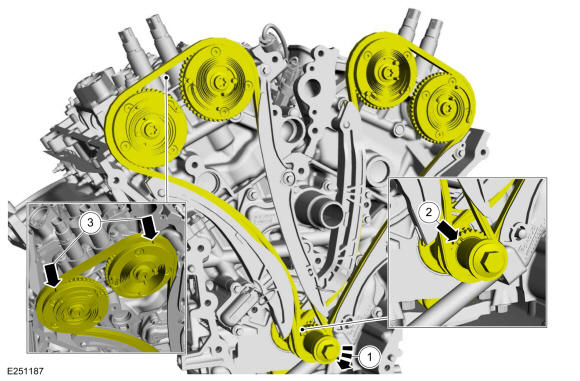

64. 1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the timing marks on the VCT units are at the 11 o'clock (exhaust) and 12:30 (intake) positions.

    Courtesy of FORD MOTOR COMPANY

65. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

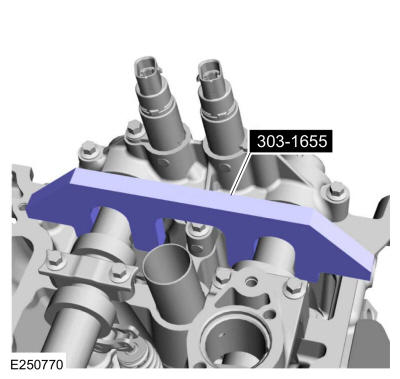

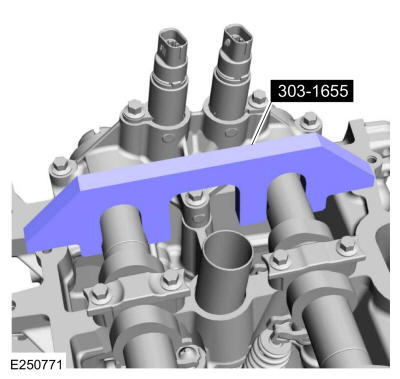

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

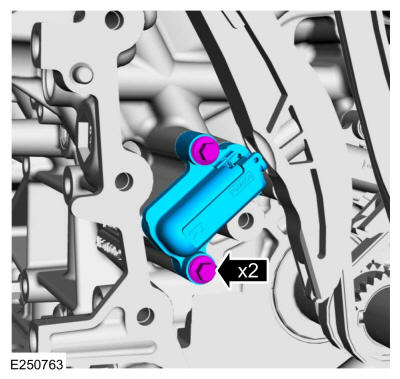

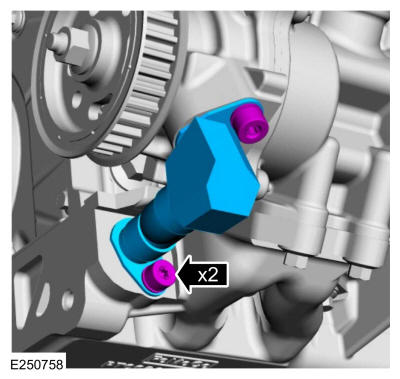

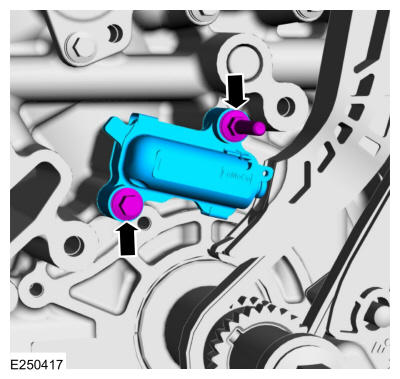

66. Remove the bolts and the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

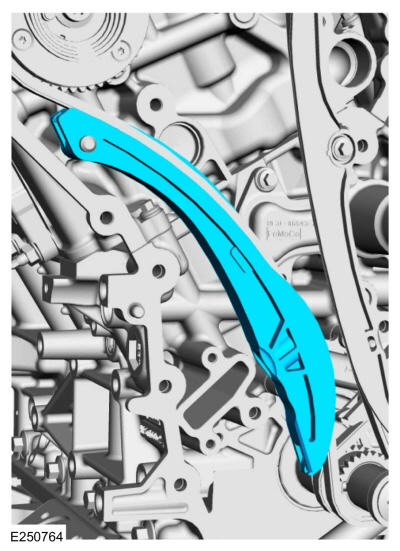

67. Remove the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

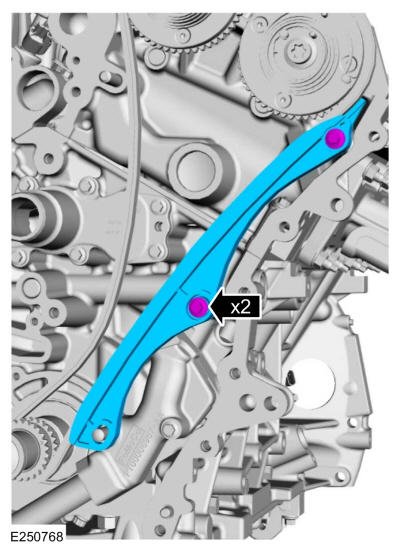

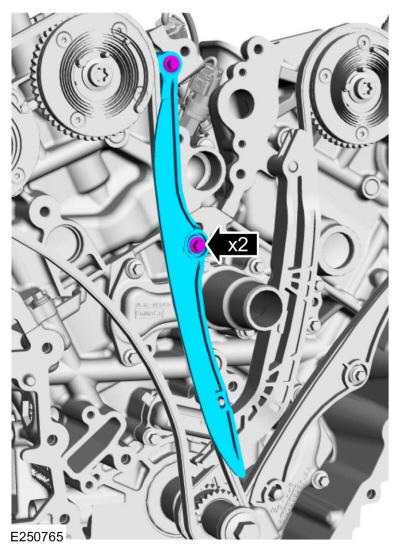

68. Remove the bolts and the RH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

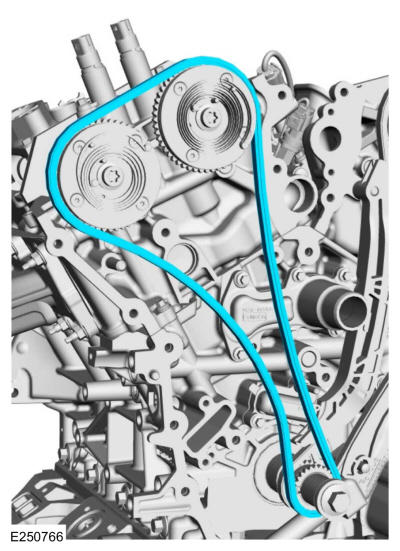

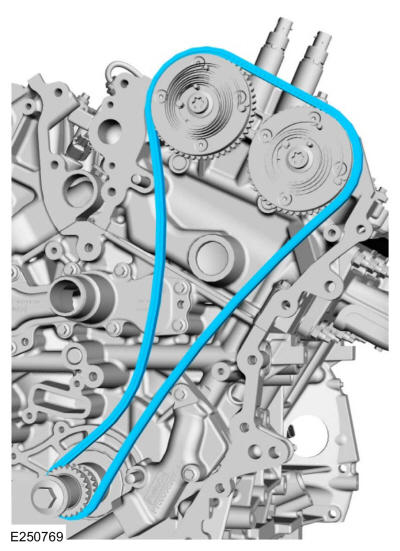

69. Remove the RH timing chain.

    Courtesy of FORD MOTOR COMPANY

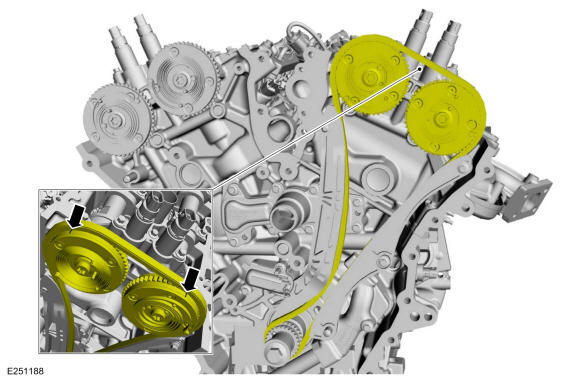

70. Verify the timing marks on the VCT units are at the 11:30 (intake) and 1:00 o'clock (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

71. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

72. Remove the stud bolt, bolt and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

73. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

74. Remove the bolts and the LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

75. Remove the LH timing chain.

    Courtesy of FORD MOTOR COMPANY

76. Remove the original crankshaft pulley bolt and washer.

    Courtesy of FORD MOTOR COMPANY

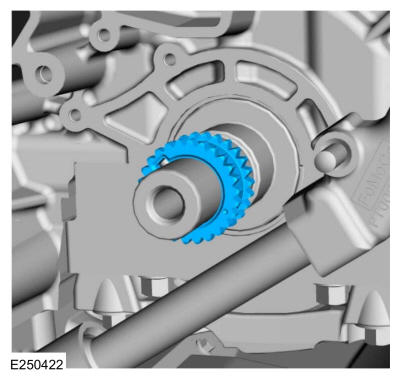

77. Remove the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

78. NOTE: Make sure the camshaft holding tool is in position.

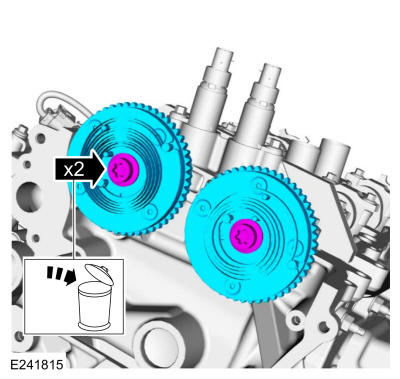

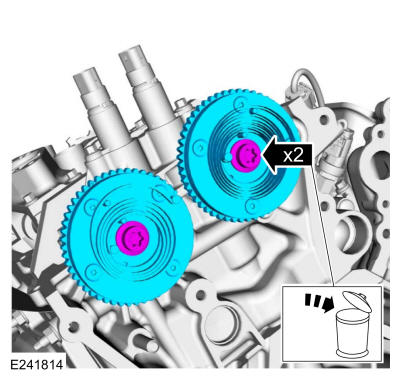

    • Remove the bolts and the exhaust and intake VCT units.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

79. NOTE: Make sure the camshaft holding tool is in position.
    • Remove the bolts and the exhaust and intake VCT units.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

80. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

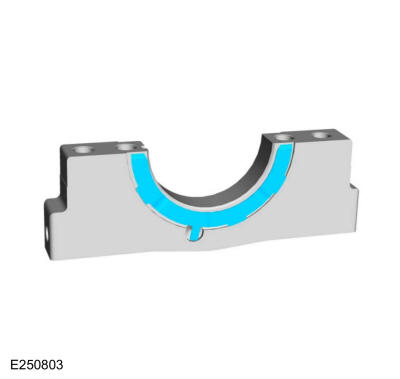

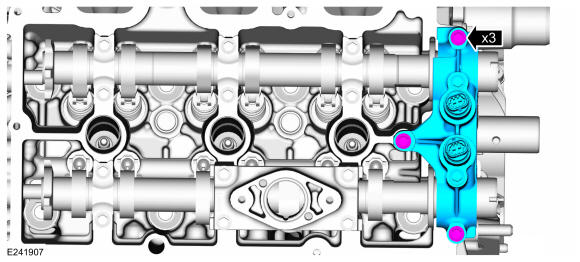

81. NOTE: The front camshaft bearing mega cap must be removed first. Failure to follow this direction may result in damage to the engine.

    Remove the bolts and the front camshaft bearing mega cap.

    Courtesy of FORD MOTOR COMPANY

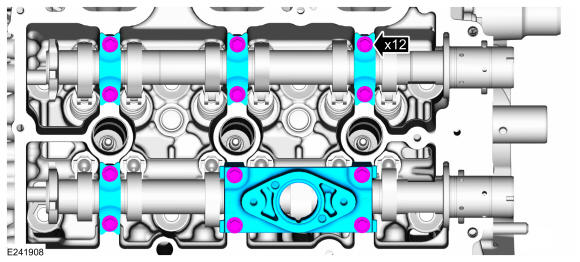

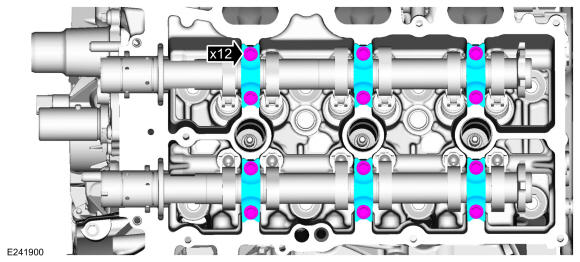

82. Remove the bolts and the camshaft bearing caps.

    Courtesy of FORD MOTOR COMPANY

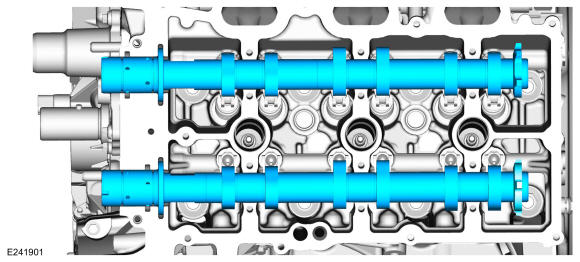

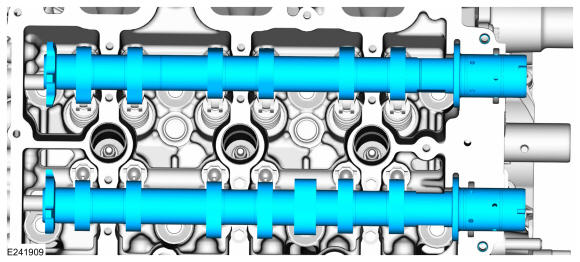

83. Remove the intake and exhaust camshaft.

    Courtesy of FORD MOTOR COMPANY

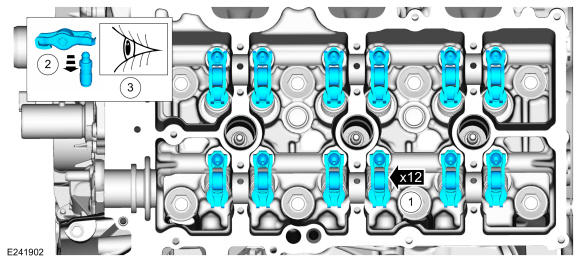

84. NOTE: Mark the location of the roller follower and the hydraulic lash adjuster assembly before removal.
    1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
    2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
    3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

    Courtesy of FORD MOTOR COMPANY

85. Remove Special Service Tool: 303-1655 Tool, Camshaft Holding.

    Courtesy of FORD MOTOR COMPANY

86. NOTE: The front camshaft bearing mega cap must be removed first. Failure to follow this direction may result in damage to the engine.

    Remove the bolts and the front camshaft bearing mega cap.

    Courtesy of FORD MOTOR COMPANY

87. Remove the bolts and the camshaft bearing caps.

    Courtesy of FORD MOTOR COMPANY

88. Remove the intake and exhaust camshaft.

    Courtesy of FORD MOTOR COMPANY

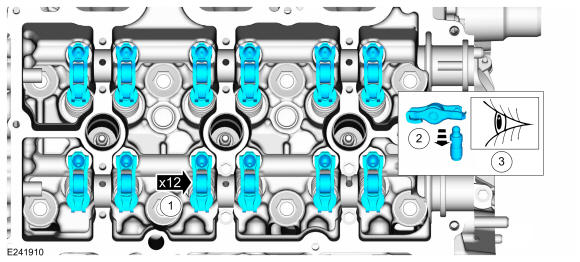

89. NOTE: Mark the location of the roller follower and the hydraulic lash adjuster assembly before removal.
    1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
    2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
    3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

    Courtesy of FORD MOTOR COMPANY

90. Disconnect the secondary latches and position aside.

    Courtesy of FORD MOTOR COMPANY

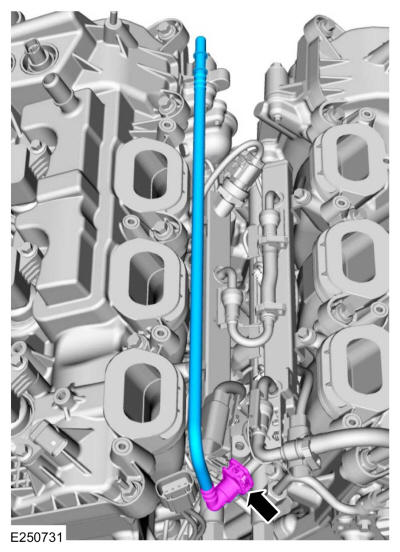

91. Disconnect the spring lock couplings and remove the fuel rail to fuel rail fuel supply line. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

92. NOTE: To release the fuel pressure in the fuel rail to fuel rail high-pressure fuel tube, wrap the fuel rail to fuel rail high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of the fuel rail to fuel rail high-pressure fuel tube flare nuts.

    Disconnect the fuel rail to fuel rail high-pressure fuel tube flare nuts and remove and discard the fuel rail to fuel rail high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

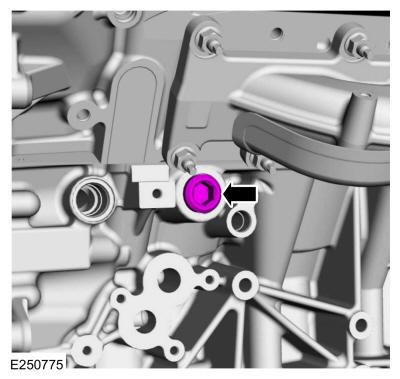

93. Remove the LH block coolant drain and allow coolant to drain from the cylinder block.

    Courtesy of FORD MOTOR COMPANY

94. Remove the RH block coolant drain and allow coolant to drain from the cylinder block.

    Courtesy of FORD MOTOR COMPANY

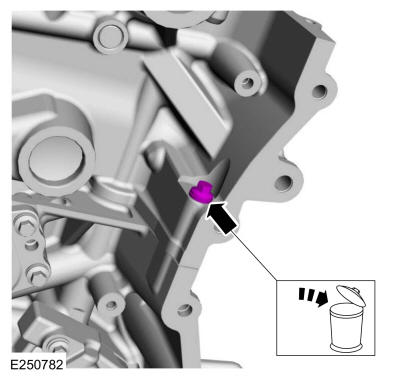

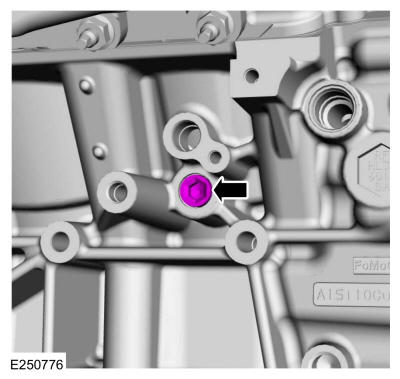

95. Remove and discard the RH cylinder head M6 bolt.

    Courtesy of FORD MOTOR COMPANY

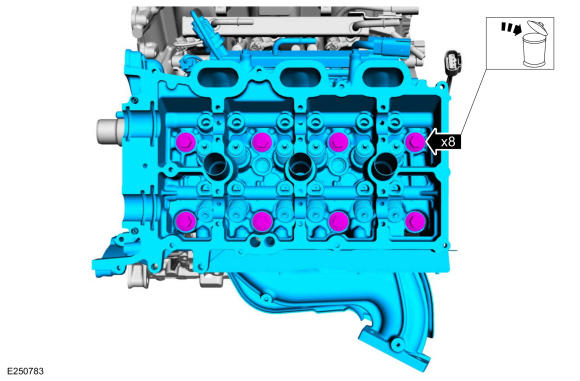

96. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
    • Remove and discard the bolts from the RH cylinder head.
    • Remove the cylinder head.

    Courtesy of FORD MOTOR COMPANY

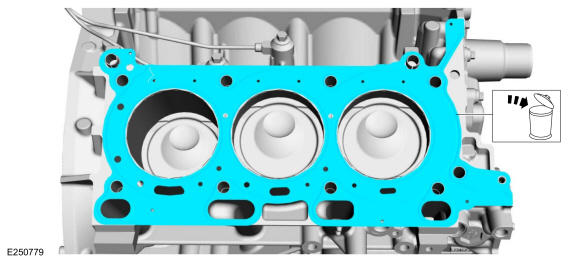

97. Remove and discard the RH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

98. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
    • Clean and inspect the cylinder block mating surface.
    • Check the cylinder head distortion. Refer to: Cylinder Block Distortion .

    Courtesy of FORD MOTOR COMPANY

99. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
    • Clean and inspect the cylinder block mating surface.
    • Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

    Courtesy of FORD MOTOR COMPANY

100. Remove and discard the LH cylinder head M6 bolt.

     Courtesy of FORD MOTOR COMPANY

101. NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
     NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface
     NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield designed and cannot be reused.
     • Remove and discard the bolts from the LH cylinder head.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

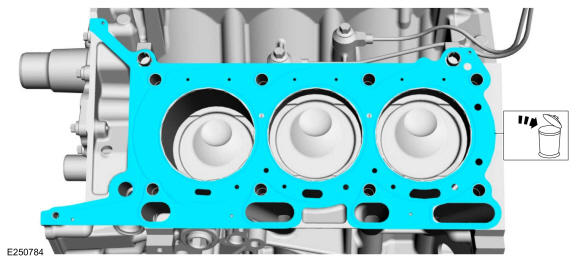

102. Remove and discard the LH cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

103. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
     NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
     • Clean and inspect the cylinder block mating surface.
     • Check the cylinder head distortion. Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

104. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
     NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
     • Clean and inspect the cylinder block mating surface.
     • Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .

     Courtesy of FORD MOTOR COMPANY

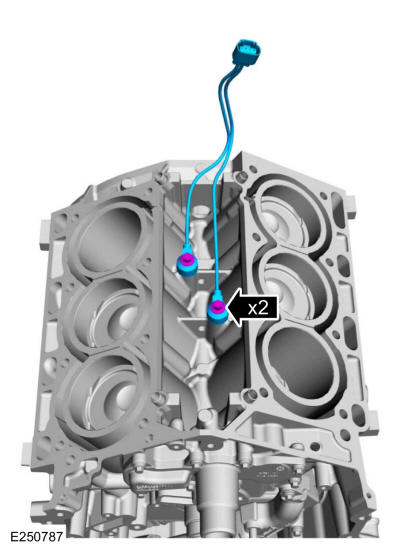

105. Remove the bolts and the KS.

     Courtesy of FORD MOTOR COMPANY

106. Remove the bolts and the channel cover plate.

     Courtesy of FORD MOTOR COMPANY

107. Remove and discard the gasket.

     Courtesy of FORD MOTOR COMPANY

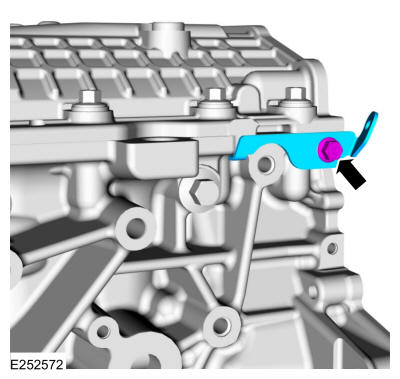

108. Remove the bolt and the coolant hose retainer bracket.

     Courtesy of FORD MOTOR COMPANY

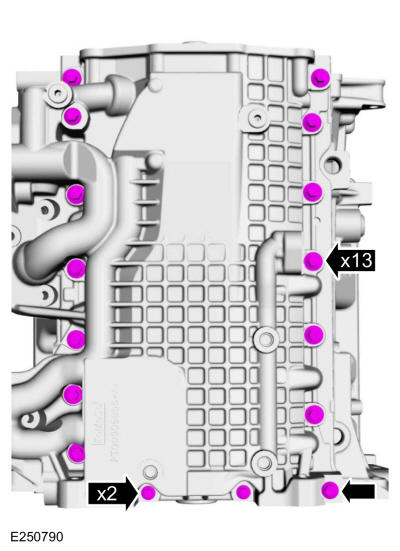

109. Remove the oil pan bolts.

     Courtesy of FORD MOTOR COMPANY

110. Using a pry tool on the pry pads, release the oil pan seal.

     Courtesy of FORD MOTOR COMPANY

111. NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

     Slide the oil pan to the side to release the oil transfer tube and filter from the oil pan and remove the oil pan.

     Courtesy of FORD MOTOR COMPANY

112. Remove and oil transfer tube and filter.

     Courtesy of FORD MOTOR COMPANY

113. Remove and discard the oil transfer tube and filter O-ring seals.

     Courtesy of FORD MOTOR COMPANY

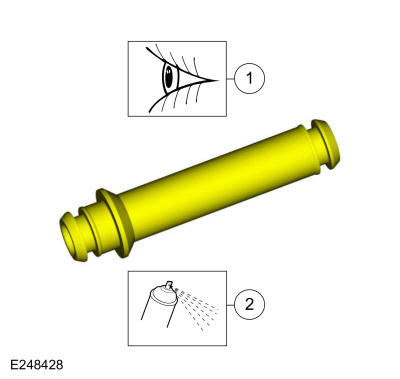

114. 1. Inspect the oil transfer tube and filter for debris.
     2. Clean the oil transfer tube and filter.

        Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Courtesy of FORD MOTOR COMPANY

115. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

     Courtesy of FORD MOTOR COMPANY

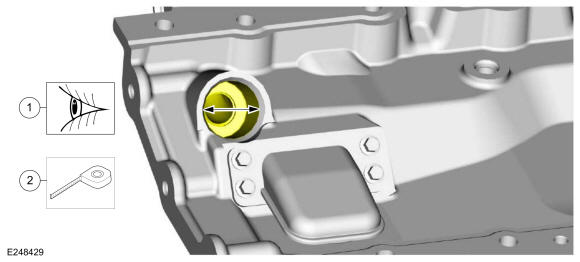

116. 1. Inspect the oil transfer tube and filter bore on the oil pan for wear.
     2. Measure the oil transfer tube and filter bore, if the bore diameter exceeds 31.80 mm (1.252 in) the oil pan must be replaced.

     Courtesy of FORD MOTOR COMPANY

117. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

     Courtesy of FORD MOTOR COMPANY

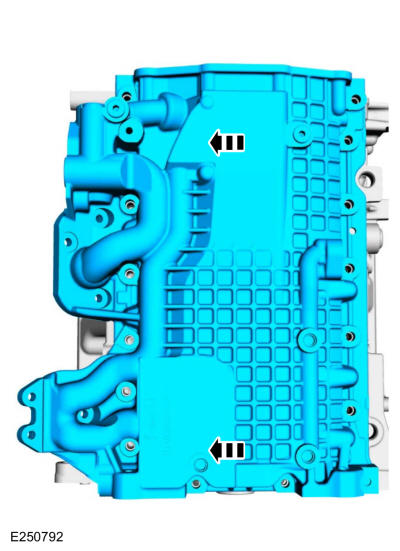

118. Remove the bolts and the oil manifold.

     Courtesy of FORD MOTOR COMPANY

119. Remove and discard the oil manifold gasket.

     Courtesy of FORD MOTOR COMPANY

120. Remove the bolt and the CKP sensor.

     Courtesy of FORD MOTOR COMPANY

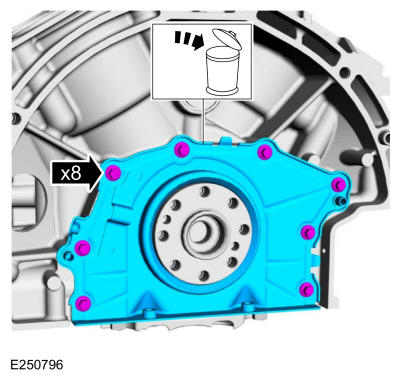

121. • Remove the bolts and the crankshaft rear seal retainer.
     • Discard the crankshaft rear seal retainer.

     Courtesy of FORD MOTOR COMPANY

122. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

     Courtesy of FORD MOTOR COMPANY

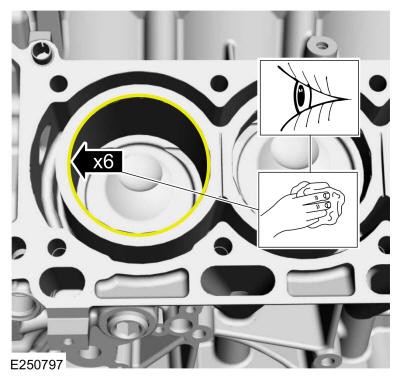

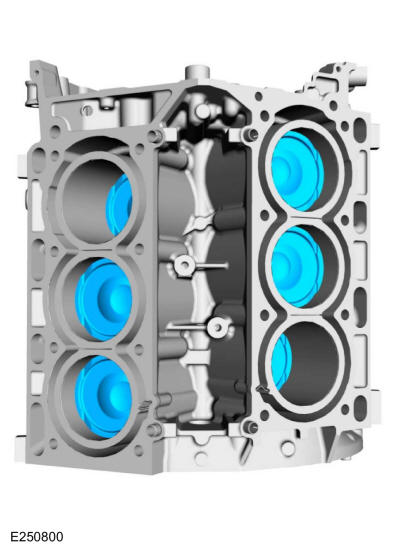

123. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

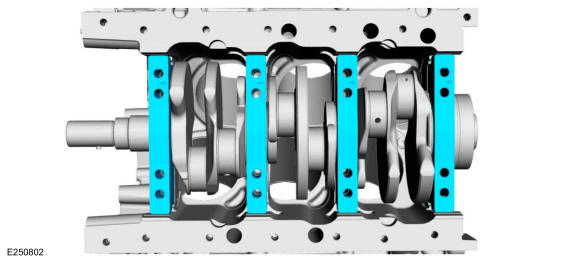

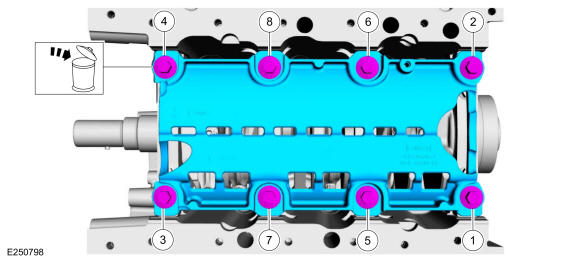

124. • Remove and discard the bolts in sequence shown.
     • Remove the main bearing cap support brace.

     Courtesy of FORD MOTOR COMPANY

125. NOTE: The connecting rod cap bolts are a torque-to-yield design.
     NOTE: Clearly mark the position and orientation of the connecting rods, connecting rod caps and connecting rod bearings for reassembly.

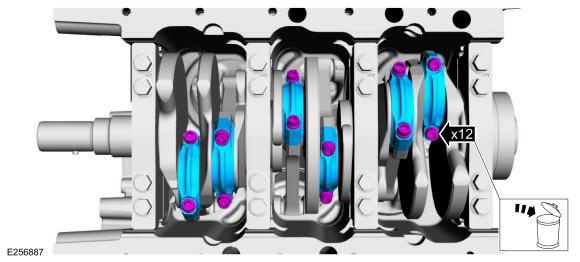

     • Remove the connecting rod cap bolts and caps.
     • Discard the connecting rod cap bolts.

     Courtesy of FORD MOTOR COMPANY

126. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod while removing the pistons.

     Remove the piston/rod assembly from the engine block.

     Courtesy of FORD MOTOR COMPANY

127. Inspect the pistons. Refer to: Piston Inspection .

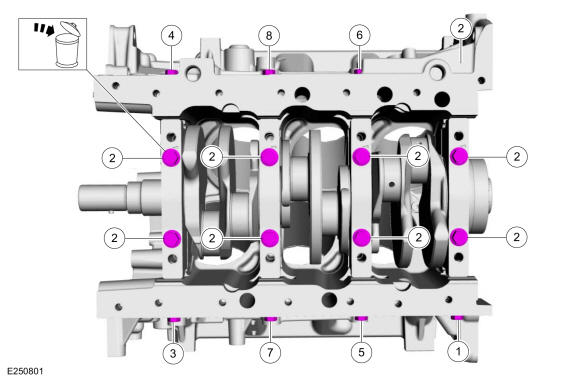

128. NOTE: Clearly mark the position and orientation of the main bearing caps for reassembly.

     Remove and discard the bolts in sequence shown.

     Fig 1: Main Bearing Cap Bolts Loosening Sequence

     Courtesy of FORD MOTOR COMPANY
129. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.
     NOTE: Note the position of the thrust washer on the outside of the No. 4 rear main bearing cap.

     Remove the main bearing caps.

     Courtesy of FORD MOTOR COMPANY

130. Remove the lower crankshaft thrust washer from the back side of the No. 4 rear main bearing cap.

     Courtesy of FORD MOTOR COMPANY

131. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

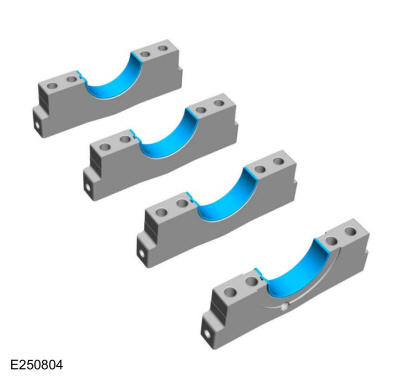

     Remove the crankshaft main bearings from the main bearing caps.

     Courtesy of FORD MOTOR COMPANY

132. NOTE: Note the position of the 2 thrust washers on the inside and outside of the rear main bearing bulkhead.

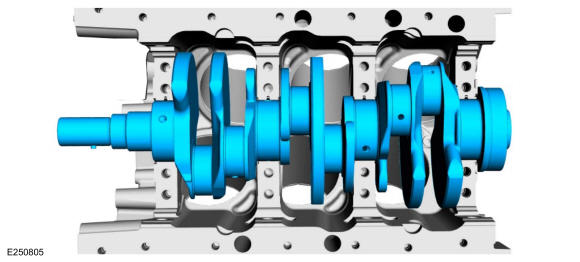

     Remove the crankshaft.

     Courtesy of FORD MOTOR COMPANY

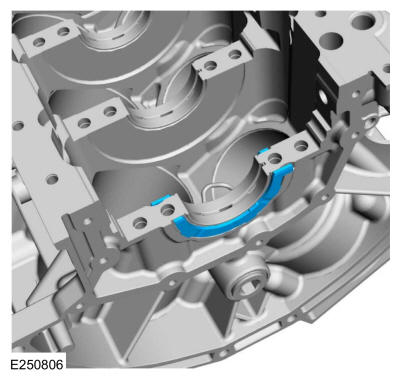

133. Remove the crankshaft thrust bearings from the rear main bearing bulkhead.

     Courtesy of FORD MOTOR COMPANY

134. NOTE: If the main bearings are being reused, mark them for correct position and orientation for reassembly.

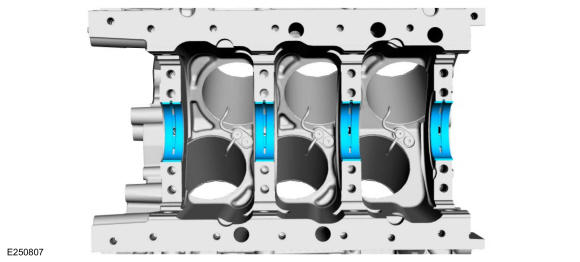

     Remove the crankshaft main bearings from the cylinder block.

     Courtesy of FORD MOTOR COMPANY

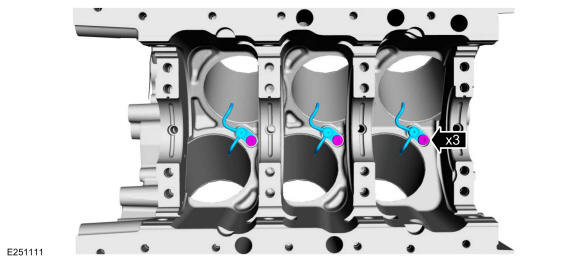

135. • Remove the piston cooling jets bolts.
     • NOTE: Do not remove by grasping the tubes.

       By grasping the main hub, remove the piston cooling jets.

     Courtesy of FORD MOTOR COMPANY

136. • Inspect the piston cooling jets for debris, bent or damaged tubes.
     • Replace as necessary.

     Courtesy of FORD MOTOR COMPANY

137. • Inspect the piston cooling jets O-ring seal for damage.
     • Replace as necessary.

Courtesy of FORD MOTOR COMPANY
