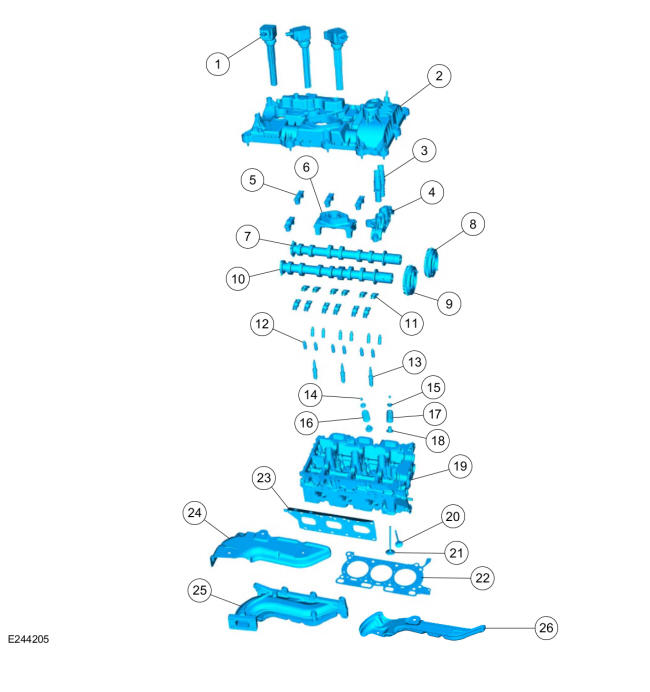

| 1 |
12A375 |
Ignition coil on plug (3 required) |
| 2 |
6K273 |
RH valve cover |
| 3 |
6B297 |
Camshaft VCT oil control solenoid (2 required) |
| 4 |
6B281 |
Camshaft mega cap |
| 5 |
6A258 |
Camshaft bearing cap (4 required) |
| 6 |
6B284 |
Camshaft bearing cap |
| 7 |
6A267 |
Intake camshaft |
| 8 |
6C254 |
Intake camshaft VCT unit |
| 9 |
6C525 |
Exhaust camshaft VCT unit |
| 10 |
6A267 |
Exhaust camshaft |
| 11 |
6529 |
Camshaft roller follower (12 required) |
| 12 |
6C501 |
Hydraulic lash adjuster assemblies (12 required) |
| 13 |
12405 |
Spark plug (3 required) |
| 14 |
6518 |
Valve collet (24 required) |
| 15 |
6514 |
Valve spring retainer (12 required) |
| 16 |
6513 |
Intake valve spring (6 required) |
| 17 |
6513 |
Exhaust valve spring (6 required) |
| 18 |
6571 |
Valve stem seal (12 required) |
| 19 |
6050 |
RH cylinder head |
| 20 |
6507 |
Intake valve (6 required) |
| 21 |
6505 |
Exhaust valve (6 required) |
| 22 |
6061 |
RH cylinder head gasket |
| 23 |
9448 |
Exhaust manifold gasket |
| 24 |
9A427 |
Exhaust manifold heat shield - Upper |
| 25 |
9431 |
Exhaust manifold |
| 26 |
9A427 |
Exhaust manifold heat shield - Lower |
