Engine Mount LH: Removal
- With the vehicle in NEUTRAL, position it on a hoist using the front and mid lift points. Refer to: Jacking and Lifting - Overview .
- Remove the bolts and the engine underbody cover.
- Lower the vehicle and position the hoist using the front and rear lift points. Refer to: Jacking and Lifting - Overview .

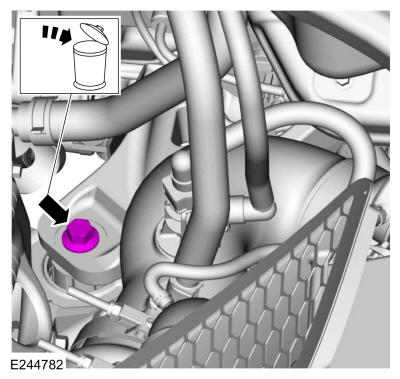

- Remove and discard the top LH engine mount bolt.

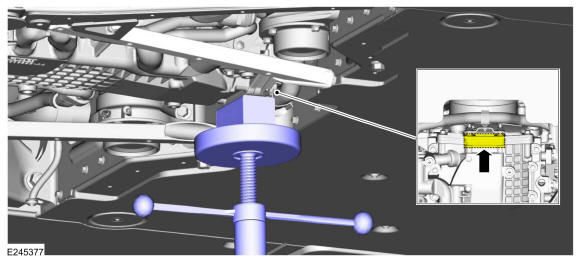

- Support the engine with a wooden block and vehicle stand using the specific location shown. Use the General Equipment: Wooden Block. Use the General Equipment: Vehicle/Axle Stands
-

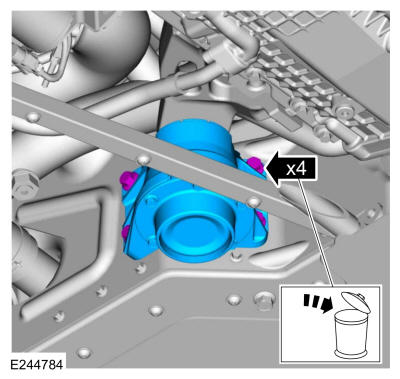

- Remove the bolts and the LH engine mount.
- Discard the engine mount bolts.
-
NOTE: This step is only necessary if the engine mount bracket has to be removed or replaced.

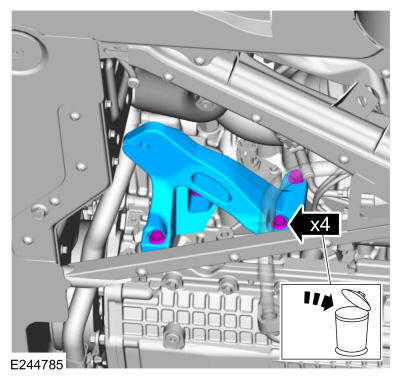

- If necessary, remove the bolts and the LH engine mount bracket.
- Discard the engine mount bracket bolts.
