Fuel Tank: Installation

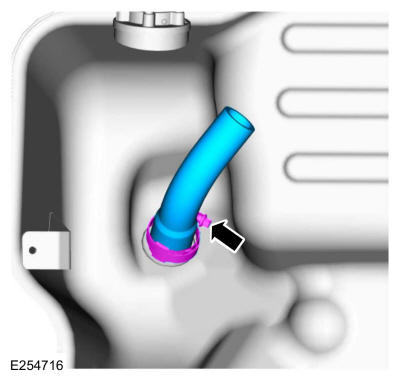

Install the fuel tank hose and the clamp. Tighten the clamp.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

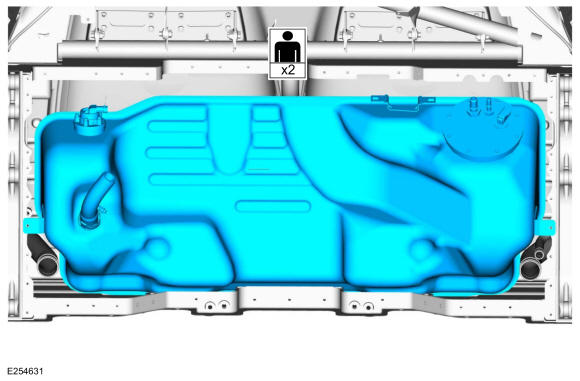

With the help of an assistance, install the fuel tank.

Courtesy of FORD MOTOR COMPANY

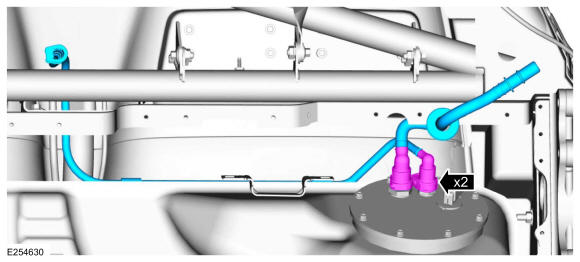

Install and connect the fuel lines. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

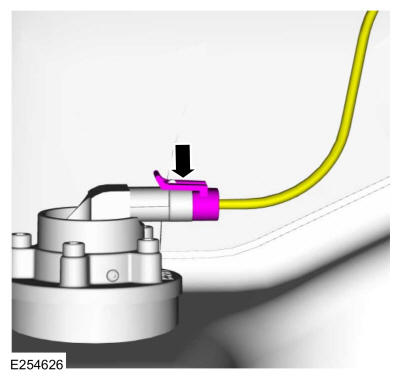

Connect the fuel pump electrical connector.

Courtesy of FORD MOTOR COMPANY

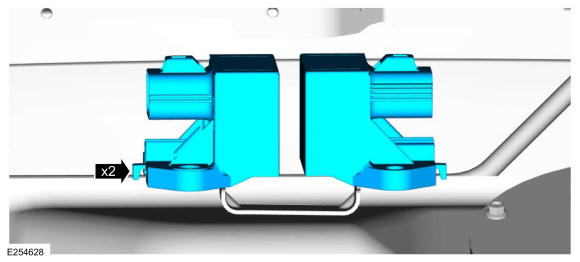

Install the fuel pump relays.

Courtesy of FORD MOTOR COMPANY
- Position back the wire harness and install the nuts and bolts.
  Torque: 97 lb.in (11 Nm)

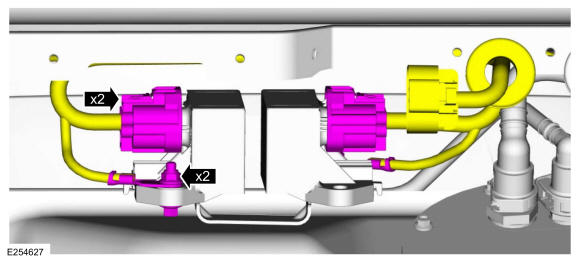

- Connect the fuel pump electrical connectors.
Courtesy of FORD MOTOR COMPANY

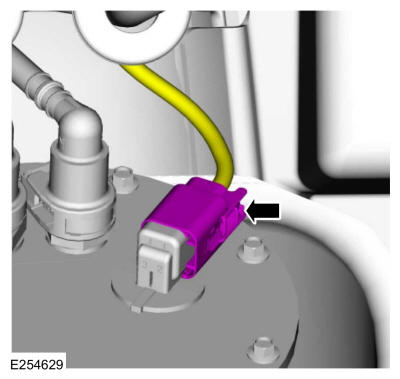

Connect the fuel level sender electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply locktite to the bolts before installation.

Install the engine bulkhead panel and the bolts.

Material: Motorcraft® Thread lock and Sealer / TA-25-B

Courtesy of FORD MOTOR COMPANY
NOTE: Apply locktite to the bolts before installation.

Install the RH access panel and the bolts.

Material: Motorcraft® Thread lock and Sealer / TA-25-B

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
- NOTE: Apply locktite to the bolts before installation.

  Position back the bracket and install the lower bolts.

  Material: Motorcraft® Thread lock and Sealer / TA-25-B

  Torque: 97 lb.in (11 Nm)
- Tighten the upper bolt.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Apply locktite to the bolts before installation.

Install the LH access panel and the bolts.

Material: Motorcraft® Thread lock and Sealer / TA-25-B

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
- NOTE: Apply locktite to the bolts before installation.

  Position back the bracket and install the lower bolts.

  Material: Motorcraft® Thread lock and Sealer / TA-25-B

  Torque: 97 lb.in (11 Nm)
- Tighten the upper bolt.
  Torque: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY
- NOTE: Apply locktite to the bolts before installation.

  Install the fuel tank filler pipe and bolts.

  Material: Motorcraft® Thread lock and Sealer / TA-25-B

  Torque: 97 lb.in (11 Nm)
- Tighten the clamp.
  Torque: 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the rear frame structure and powertrain. Refer to: Rear Frame Structure and Powertrain .
